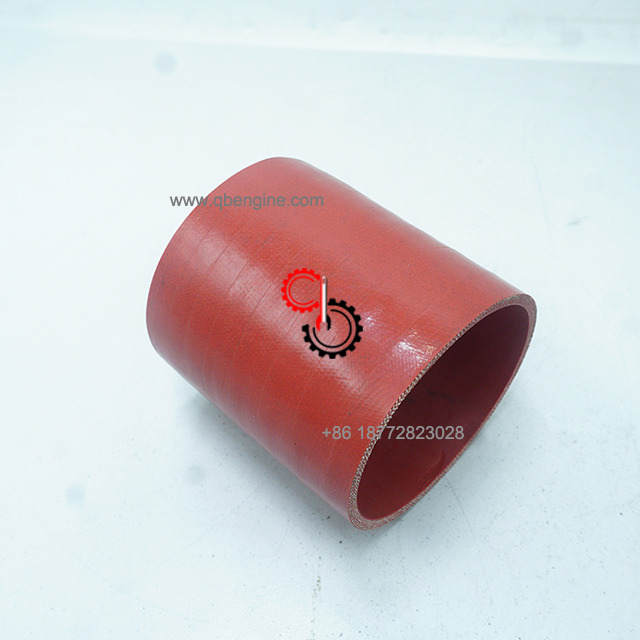

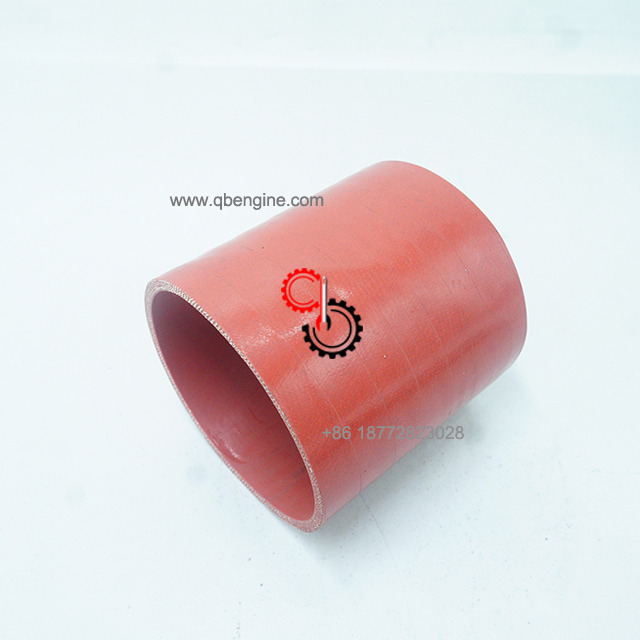

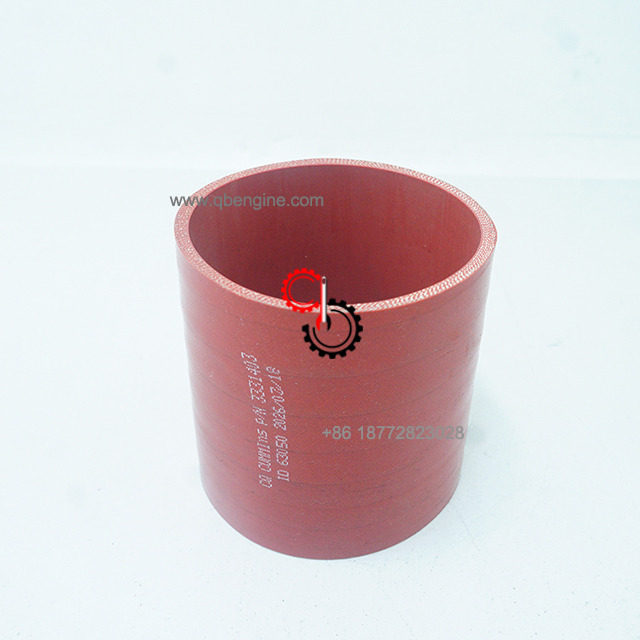

Cummins Coolant Air Transfer Rubber Pipe 3331403 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G |
| Ref No | Part Number | Part Description | Required | Remarks |

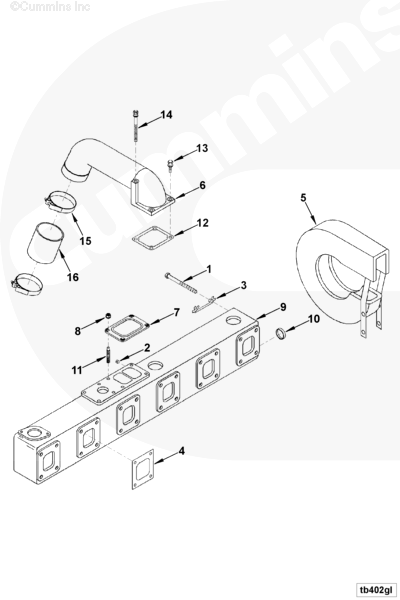

| TB4066-02 | Turbocharger Arrangement |
| Turbocharger Arrangement...(More) |
| MP45146 | Exhaust Mounting Manifold | 1 |
|
| 1 | S 164 B | Hexagon Head Cap Screw | 24 | 7/16 - 14 X 5 1/4" |
| 2 | S 910 B | Pipe Plug | 2 | 1/4 NPT. |
| 3 | 3001405 | Lock Plate | 12 |
|
| 4 | 3043097 | Exhaust Manifold Gasket | 6 |
|
| 5 | 4967565 | Turbocharger Heat Blanket | 1 |
|
| 6 | 3016139 | Air Crossover Connection | 1 |
|
| 3096218 | Turbocharger Mounting | 1 |
|
| 7 | 206576 | Turbocharger Gasket | 1 |
|
| 8 | 3056158 | Hexagon Flange Nut | 4 | Reference TSB100603. |
| 3166258 | Exhaust Manifold | 1 |
|
| 3078024 | Exhaust Manifold | 1 |
|
| 9 | 3078023 | Exhaust Manifold | 1 |
|
| 10 | 3908092 | Expansion Plug | 11 |
|
| 11 | 3393130 | Double End Plain Stud | 4 |
|
| 3331404 | Air Crossover Mounting | 1 |
|
| 12 | 3032161 | Connection Gasket | 1 |
|
| 13 | 3035624 | Captive Washer Cap Screw | 2 | 3/8 - 16 X 1 1/2 in. |
| 14 | 3040839 | Captive Washer Cap Screw | 2 | 3/8 - 16 x 4 3/4 in. |
| 15 | 3063809 | T-Bolt Clamp | 2 | 3 3/4 in. |
| 16 | 3331403 | Plain Hose | 1 |
|
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 10cm*9cm*10cm |
| Weight | 0.159KG |
Small Tips for Quick Service:
If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.
For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
