Cummins / Products / High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer
High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer
High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer
High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer
High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer

loading

High Pressure Cummins 4914735 Flexible Hose 4914735 for Fuel Oil or Coolant Transfer

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

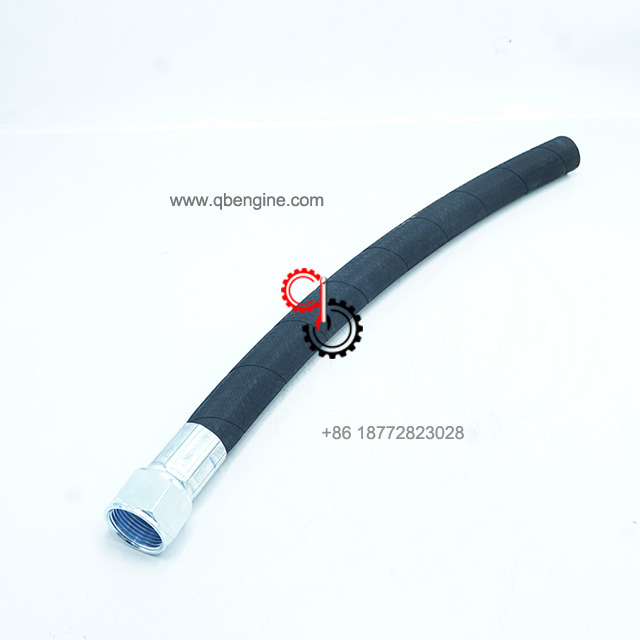

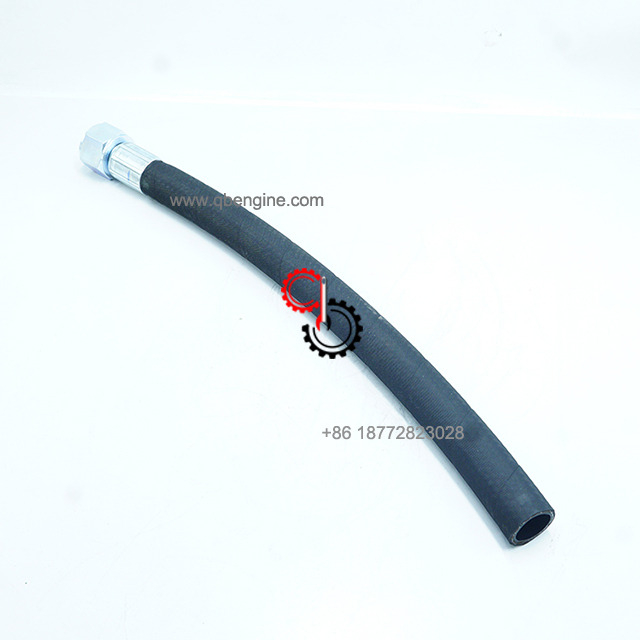

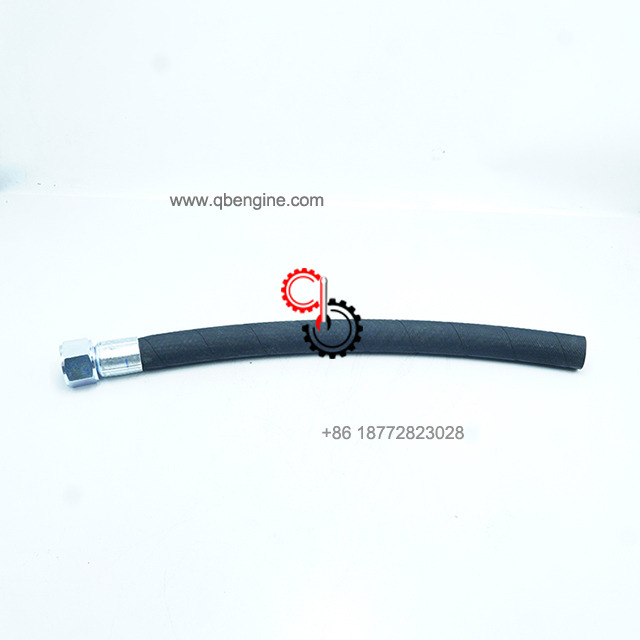

Cummins Flexible Hose 4914735

  • Original

  • Cummins

  • 4914735

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Flexible Hose 4914735 In Stock

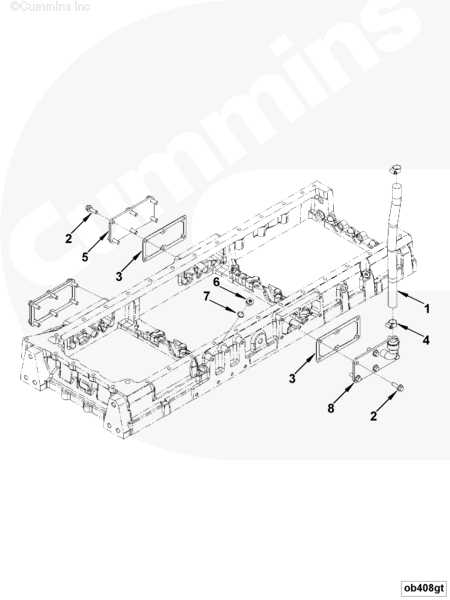

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

4914735

Ref No Part Number Part Description Required Remarks

OB4838-08 Hand Hole Cover
Hand Hole Cover...(More)
1 4914735 Plain Hose 1

MP5090 Mounting Cover And Bracket 1
2 3040838 Captive Washer Cap Screw 6 3/8 - 16 x 1 1/4 in.
3 3042586 Hand Hole Gasket 1

3201081 Hand Hole Mounting Cover 2
2 3040838 Captive Washer Cap Screw 6 3/8 - 16 x 1 1/4 in.
3 3042586 Hand Hole Gasket 1
4 210753 Hose Clamp 2 9/16 - 1 1/4 in.
5 3201060 Hand Hole Cover 2

3046202 Threaded Plug 2 3/4 - 16 UNF.
6 3040810 Threaded Plug 1
7 3046201 O-Ring Seal 1
8 4914881 Hand Hole Cover 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 47cm*3cm*3cm
Weight 0.5KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
