High Performance NT855 Water Pump 4915398

  • NT855

  • Cummins

  • 4915398

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

High Performance NT855 Water Pump 4915398 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   G855, G855 CM558, GTA855 CM558 (CM2358) G101, N14   CELECT, N14 CELECT PLUS, N14 MECHANICAL, NH/NT 855, QSM11   CM876 M101, QSM11 CM876 M102M, QSN14 CM876 N103, QSN14 CM876   N105, QSNT14 CM876 N102

4915398

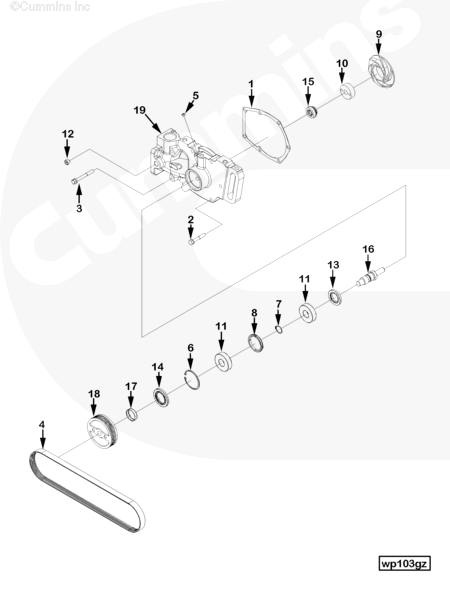

Ref No Part Number Part Description Required Remarks

WP1781 Water Pump
Water Pump...(More)
1 3076522 Water Pump Gasket 1
2 3012468 Captive Washer Cap Screw 4 3/8 - 24 X 2 1/4 in.
3 3012469 Captive Washer Cap Screw 2 3/8 - 24 X 3 1/4 in.
4 3251034 V Ribbed Belt 1

4915398 Water Pump 1
5 S 911 B Pipe Plug 2 1/8 NPT.
6 S 16255 Retaining Ring 1
7 112302 Retaining Ring 1
8 196844 Bearing Spacer 1
9 3000888 Water Pump Impeller 1
10 3014241 Impeller Insert 1
11 3010150 Ball Bearing 2
12 3013786 Pipe Plug 1 3/8 NPT.
13 3038997 Oil Seal 1
14 3038998 Oil Seal 1
15 4060899 Water Pump Seal 1
16 4296120 Water Pump Shaft 1

4296121 Water Pump Pulley 1
17 203097 Wear Sleeve 1
18 3025861 Water Pump Pulley 1
19 4296123 Water Pump Body 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 33.2cm*25.7cm*18cm
Weight 11.7KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
