Cummins / Cummins Parts / Rocker Lever Assembly, STC Tappet, Cam Follower / High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts
High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts
High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts
High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts
High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts

loading

High Performance Cummins Water Transfer Connection Gasket 3008832 Truck Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

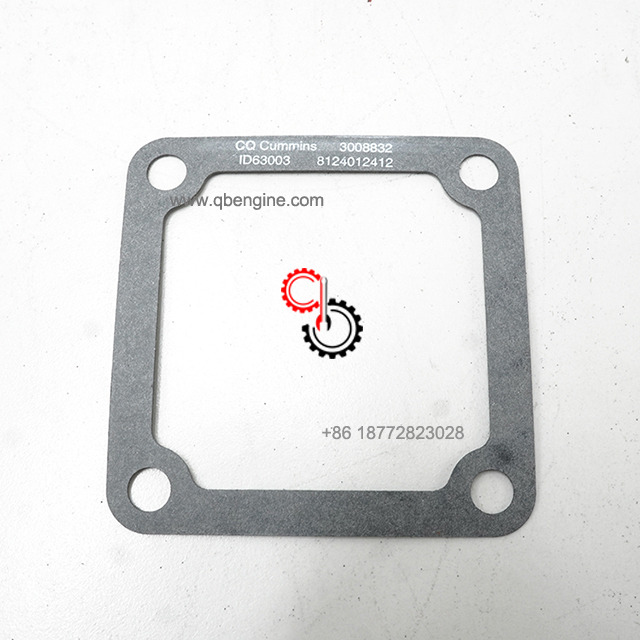

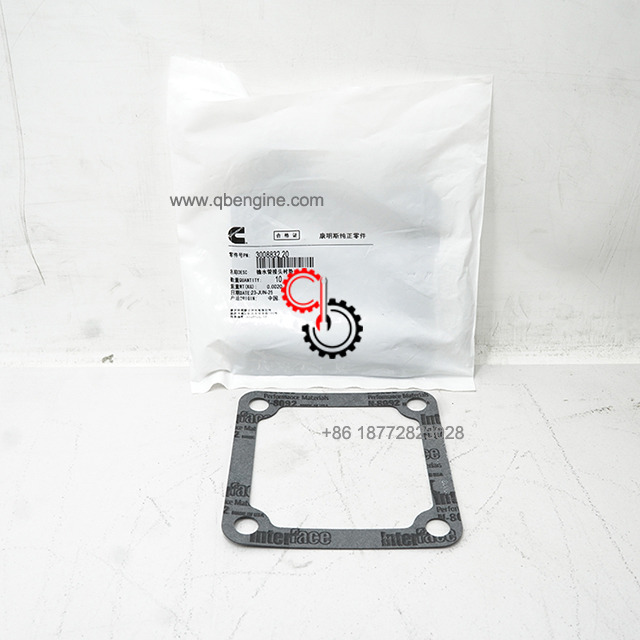

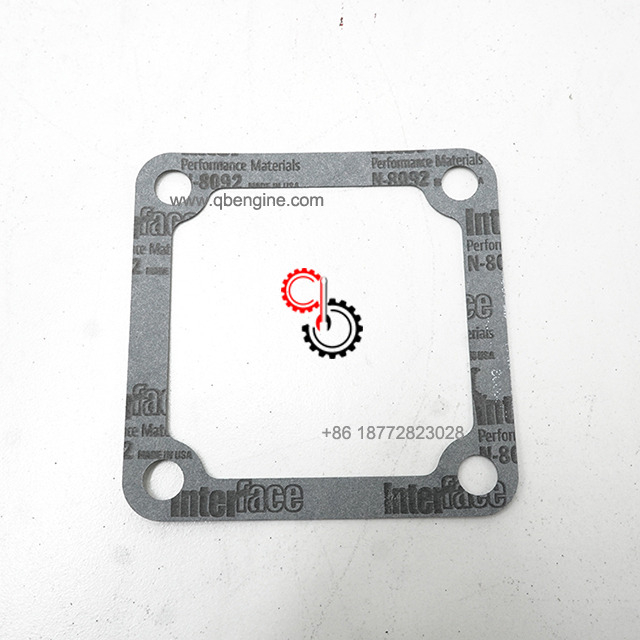

Cummins Water Transfer Connection Gasket 3008832

  • Original

  • Cummins

  • 3008832

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Water Transfer Connection Gasket 3008832 In Stock

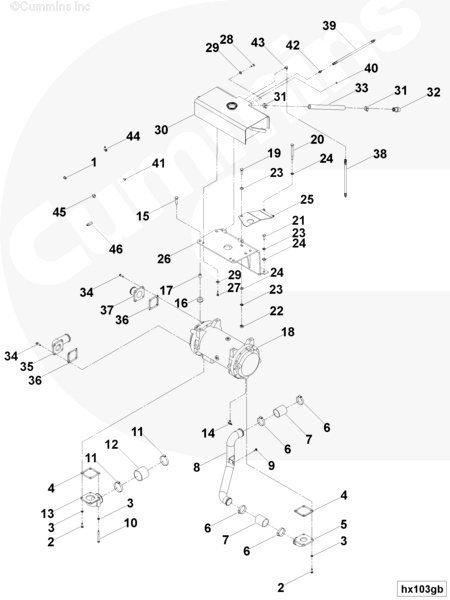

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  NH/NT 855, NT495, NT743, NTA855 N106

3008832

Cart Ref No Part Number Part Description Required Remarks


HX1228-02 Heat Exchanger
Heat Exchanger
1 S 1059 Plain Pipe Coupling 1


3016924 Heat Exchanger Inlet Connection 1

2 S 172 B Hexagon Head Cap Screw 4 3/8 - 16 X 1 1/8 in.
3 S 604 Lock Washer 4 3/8 in.
4 3008832 Water Transfer Connection Gasket 1

5 3010376 Heat Exchanger Inlet Connection 1


3016925 Heat Exchanger Inlet Tube 1

6 43828 D Hose Clamp 4 2 1/16 - 3 in.
7 67185 Plain Hose 2

8 3013305 Water Transfer Tube 1

9 3015283 Captive Washer Cap Screw 1 5/16 - 18 X 3/4 in.

3016926 Connection Heat Ex Outlet 1

2 S 172 B Hexagon Head Cap Screw 2 3/8 - 16 X 1 1/8 in.
3 S 604 Lock Washer 4 3/8 in.
4 3008832 Water Transfer Connection Gasket 1

10 S 199 B Hexagon Head Cap Screw 2 3/8 - 16 3 3/4 in.
11 43828 F Hose Clamp 2 2 9/16 - 3 1/2 in.
12 104296 Plain Hose 1

13 3010327 Heat Exchanger Outlet Connection 1


3166050 Heat Exchanger 1

14 S 923 E Draincock 1

15 137975 Hexagon Head Cap Screw 4 9/16 - 12 X 2 in.
16 3165410 Vibration Isolator 4

17 3165413 Mounting Spacer 4

18 3655859 Heat Exchanger 1


3166051 Heat Exchanger Bracket 1

19 S 113 Hexagon Head Cap Screw 1 1/2 - 13 X 1 1/2 in.
20 S 176 Hexagon Head Cap Screw 2 1/2 - 13 X 5 in.
21 S 193 Hexagon Head Cap Screw 2 1/2 - 20 X 1 1/4 in.
22 S 200 Heavy Hexagon Nut 2 1/2 - 13 UNC.
23 S 608 Lock Washer 5 1/2 in.
24 S 670 Plain Washer 4 1/2 in.
25 3165415 Heat Exchanger Bracket 1

26 3165416 Heat Exchanger Brace 1


3655860 Heat Exchanger 1

11 43828 F Hose Clamp 2 2 9/16 - 3 1/2 in.
12 104296 Plain Hose 1


4914631 Expansion Tank 1

27 S 103 D Hexagon Head Cap Screw 2 3/8 - 16 X 1 1/4 in.
28 S 109 Hexagon Head Cap Screw 2 3/8 - 16 X 7/8 in.
29 108330 Plain Washer 4 3/8 in.
30 3655858 Expansion Tank 1


4914632 Expansion Tank Tube 1

31 43828 A Hose Clamp 2 11 16 - 1 1/2 in.
32 153408 Plain Hose Coupling 1

33 3419194 Plain Hose 1


4914633 Water Inlet Connection 1

34 3011715 Captive Washer Cap Screw 4 3/8 - 16 X 1 3/16 in.
35 3013306 Heat Exchanger Inlet Connection 1

36 3055769 Sea Water Pump Gasket 3


4914634 Water Outlet Connection 1

34 3011715 Captive Washer Cap Screw 4 3/8 - 16 X 1 3/16 in.
36 3055769 Sea Water Pump Gasket 1

37 3010378 Heat Exchanger Outlet Connection 1


4914635 Heat Exchanger Vent 1

38 AS 4012 MS Flexible Hose 1

39 AS 4015 MS Flexible Hose 1

40 S 911 B Pipe Plug 2 1/8 NPT.
41 S 945 Plain Pipe Nipple 1

42 68138 Male Connector 1

43 68139 Male Adapter Elbow 2 1/8 NPTF X 7/16 - 20 (90).
44 69318 Plain Street Pipe Elbow 2

45 187368 Plain Adapter 1

46 4913702 Male Connector 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 17cm*17cm*1cm
Weight 0.091KG


Additional parts are also available. Check with Qingbang Online Service.


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
