Cummins / Cummins Parts / Air Compressor, Water Pump, Oil Pump, Vacuum Pump, EGR / High Performance Cummins QSM11 Engine Accessories Parts Water Pump 4299030

High Performance Cummins QSM11 Engine Accessories Parts Water Pump 4299030

High Performance Cummins QSM11 Engine Accessories Parts Water Pump 4299030

Name: High Performance Cummins QSM11 Engine Accessories Parts Water Pump 4299030
Brand: Cummins
Rating: 5.0 (5 reviews)

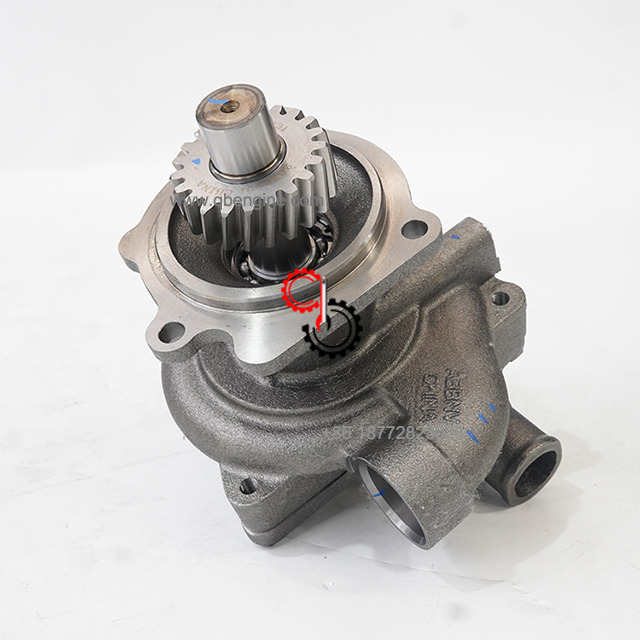

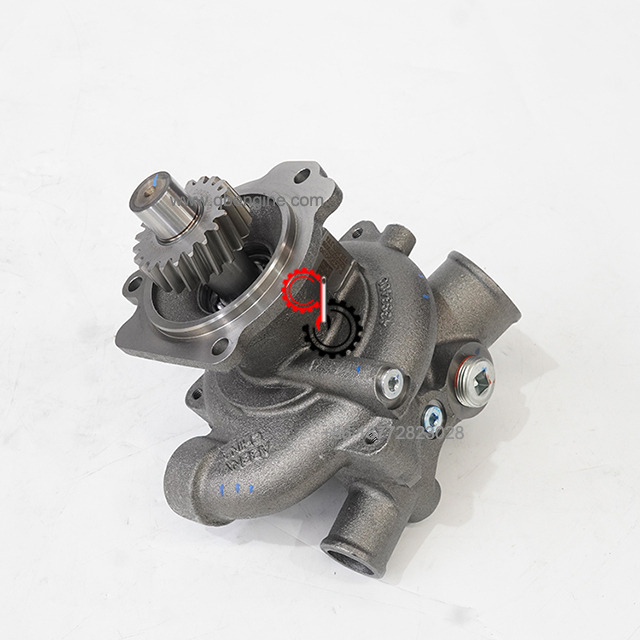

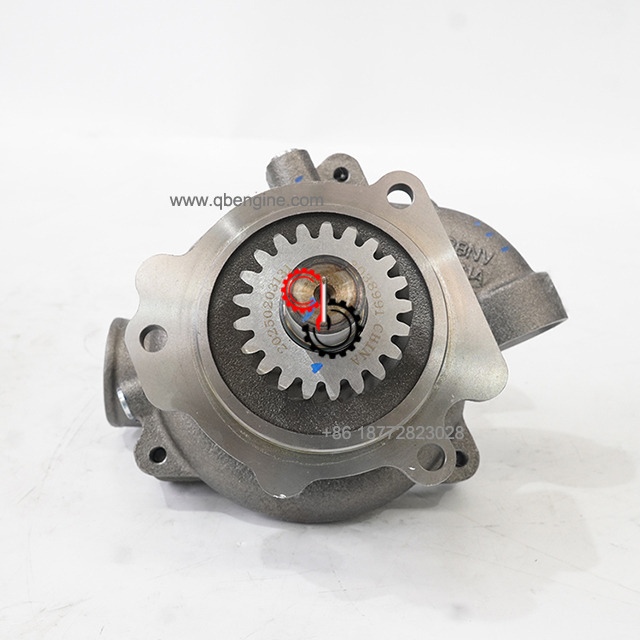

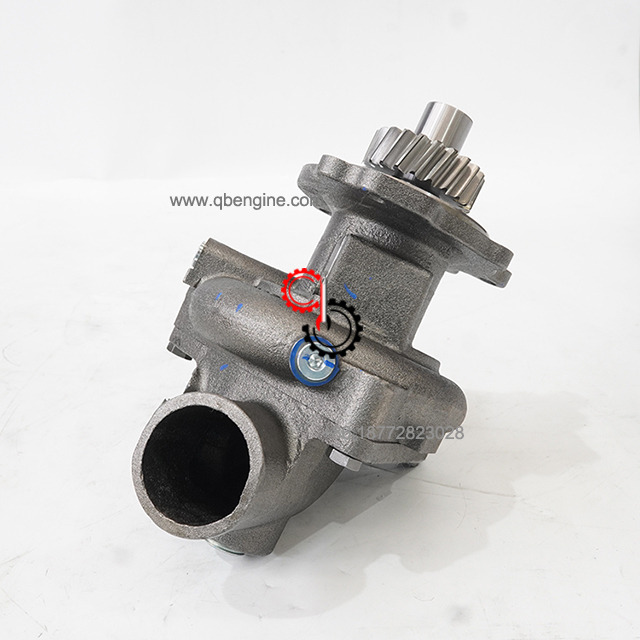

Cummins QSM11 Water Pump 4299030

Model:
QSM11
Brand:
Cummins
Code:
4299030
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins QSM11 Water Pump 4299030 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4299030

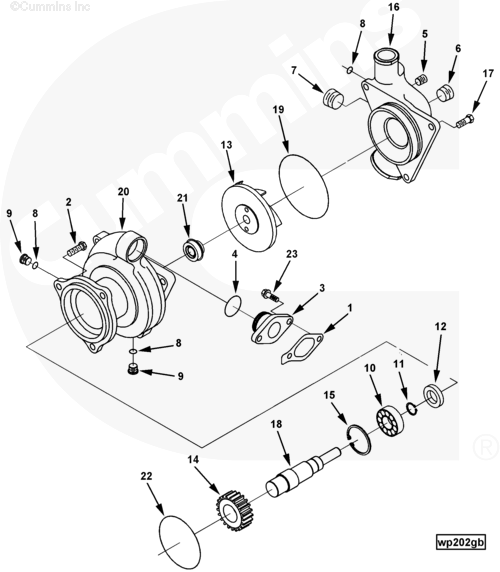

Ref No	Part Number	Part Description	Required	Remarks
	WP2705-10	Water Pump		Water Pump...(More)
1	3027924	Connection Gasket	1
2	3034836	Hexagon Head Cap Screw	3	M10 X 1.50 X 30.
	3328559	Water Transfer Connection	1
3	3821718	Water Transfer Connection	1
4	3892095	O-Ring Seal	1
	4299030	Water Pump	1
5	3008468	Pipe Plug	1	1/2 NPT.
6	3008469	Pipe Plug	1	3/4 NPT.
7	3008470	Pipe Plug	1	1 NPT.
	3037536	Threaded Plug	2	9/16 - 18 UNF.
8	3037537	O-Ring Seal	1
9	3040813	Threaded Plug	1	9/16 - 18 UNF.
	4299029	Water Pump	1
10	S 16002	Ball Bearing	1
11	160586	Retaining Ring	1
12	3019600	Oil Seal	1
13	3035679	Water Pump Impeller	1
14	3038991	Water Pump Gear	1
15	3064634	Retaining Ring	1
16	3073695	Water Pump Cover	1
17	3335044	Hexagon Head Cap Screw	3	M10 X 1.50 X 25.
18	3400813	Water Pump Shaft	1
19	3820791	O-Ring Seal	1
20	4926553	Water Pump Body	1
21	2878069	Water Pump Seal	1
22	2863701	O-Ring Seal	1
23	3900631	Hexagon Flange Head Cap Screw	2	M8 X 1.25 X 25.
	2882145	Water Pump Kit	1
	2863701	O-Ring Seal	1
	3027924	Connection Gasket	1
	3335044	Hexagon Head Cap Screw	3	M10 X 1.50 X 25.
	3820791	O-Ring Seal	1
	3892095	O-Ring Seal	2
	4299041	Water Pump	1
	S 16002	Ball Bearing	1
	160586	Retaining Ring	1
	2878069	Water Pump Seal	1
	3019600	Oil Seal	1
	3035679	Water Pump Impeller	1
	3038991	Water Pump Gear	1
	3064634	Retaining Ring	1
	3400813	Water Pump Shaft	1
	4926553	Water Pump Body	1
	2882146	Water Pump Repair Kit		Minor
	S 16002	Ball Bearing	1
	160586	Retaining Ring	1
	2863701	O-Ring Seal	1
	2878069	Water Pump Seal	1
	3019600	Oil Seal	1
	3035679	Water Pump Impeller	1
	3064634	Retaining Ring	1
	3820791	O-Ring Seal	1

SHIPMENT CHARACTERISTICS
Length * Width * Height	35cm28cm28cm
Weight	12.262KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
