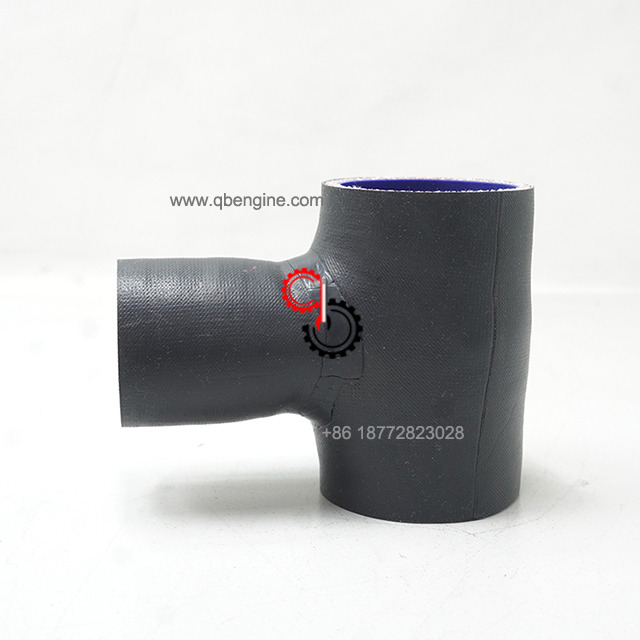

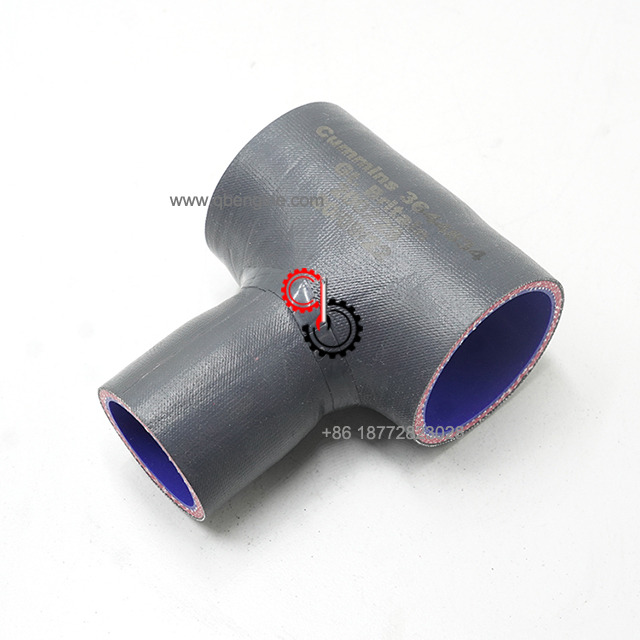

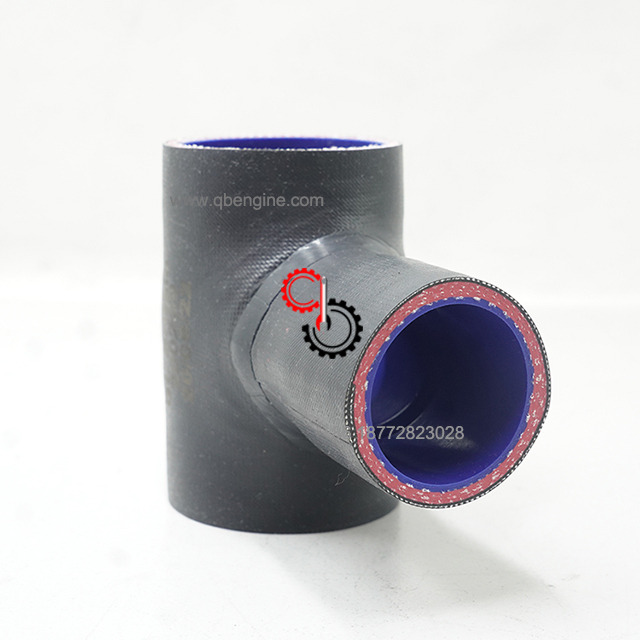

Cummins QSK60 Water Transfer Connection 3644834

  • QSK60

  • Cummins

  • 3644834

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK Water Transfer Connection 3644834 In Stock

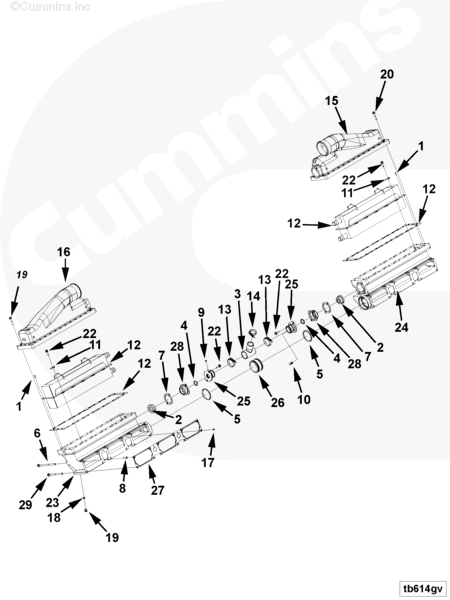

Electronic   Parts Catalog - Option Detail
Cummins   Engines QSK45 CM500, QSK45G

3644834

Ref No Part Number Part Description Required Remarks

TB6975-02 Aftercooler
Aftercooler
1 131584 Roll Pin 16
2 206808 Grommet Seal 8
3 3644834 Water Transfer Connection 4
4 3035026 O-Ring Seal 8
5 3082358 O-Ring Seal 4
6 3082440 Hexagon Flange Head Cap Screw 24 M10 X 1.50 X 200.
7 3171287 Connection Gasket 8
8 3331834 Rectangular Ring Seal 24
9 3628604 Pipe Plug 6 1/8 - 27 X 0.3 in.
10 3638582 Draincock 2
11 3639657 Mounting Spacer 40
12 3641079 Aftercooler Core 4
13 3641849 T-Bolt Clamp 8
14 3641850 T-Bolt Clamp 4
15 3642862 Aftercooler Cover 2
16 3641090 Aftercooler Cover 2
17 3643875 Round Head Cap Screw 8

3678921 Threaded Plug 2 M14 X 1.5 X 16.
18 3678912 O-Ring Seal 1 M14.
19 3678922 Threaded Plug 1 M14 X 1.5 X 16.
20 3900634 Hexagon Flange Head Cap Screw 108 M10 X 1.50 X 50.
21 4000714 Aftercooler Cover Gasket 4
22 3903112 Hexagon Flange Head Cap Screw 64 M10 X 1.50 X 30.
23 4001327 Air Intake Manifold 2
24 4001328 Air Intake Manifold 2
25 4017163 Connection Flange 8
26 4017508 Air Balance Tube 2
27 4066037 Intake Manifold Gasket 4
28 4066129 Seal Retainer 8
29 4001378 Hexagon Flange Head Cap Screw 24


SHIPMENT CHARACTERISTICS
Length * Width * Height 20cm*18cm*7cm
Weight 0.126KG
