Cummins / Cummins Parts / Fan Support, Fan, Idler Gear, Belt Tensioner, Fan Pulley / High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts
High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts
High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts
High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts
High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts

loading

High Performance Cummins K38 K50 Viscous Vibration Damper 3628649 Diesel Engine Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

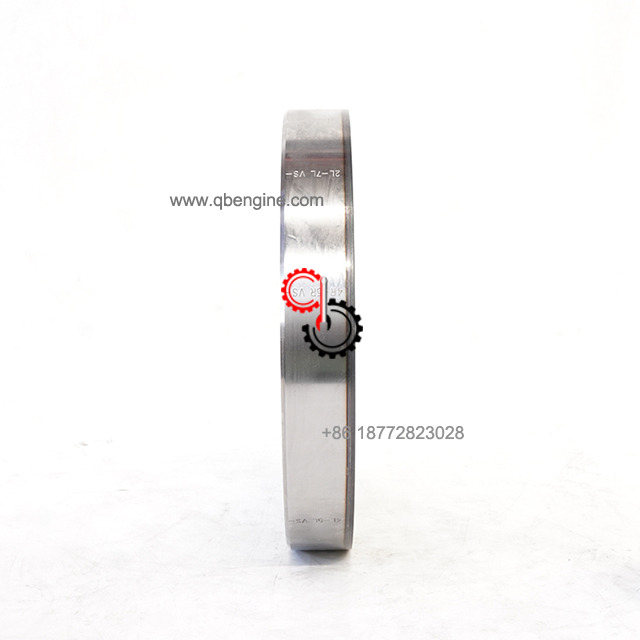

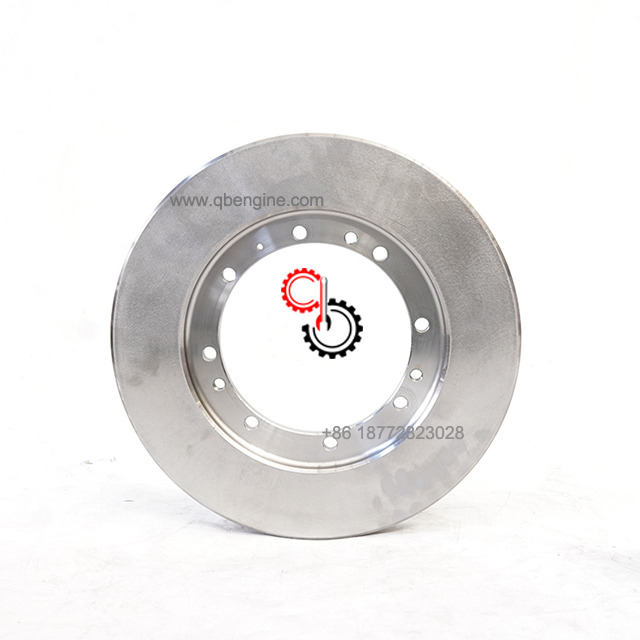

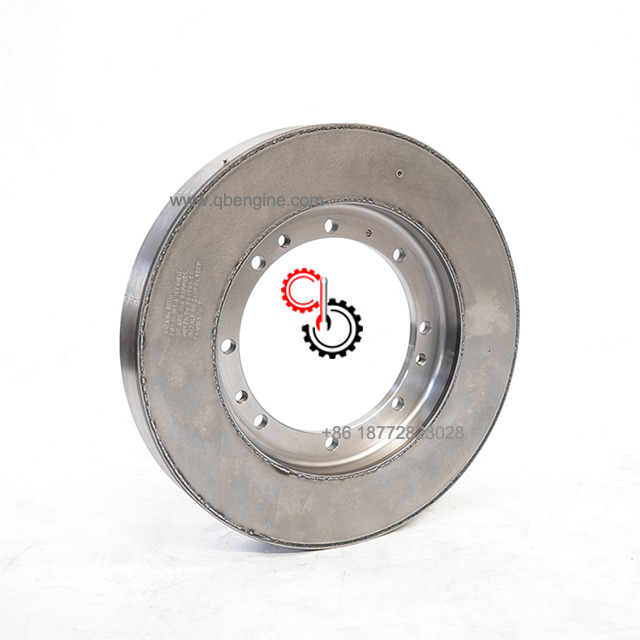

Cummins K38 K50 Viscous Vibration Damper 3628649

  • K38 K50

  • Cummins

  • 3628649

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Viscous Vibration Damper 3628649 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines Cummins Engine Parts  G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150  MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF  CM850/CM2150 MCRS

3628649

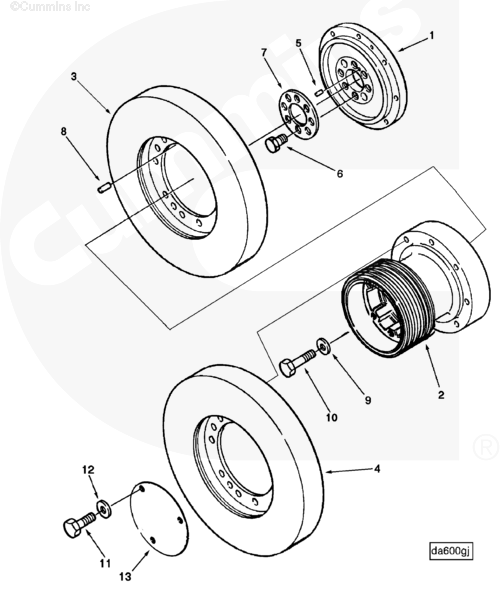

Ref No Part Number Part Description Required Remarks

DA6070-03

Vibration Damper
1 3069776 Crankshaft Adapter 1
2 3031737 Crankshaft Pulley 1

3628882
1
3 3628649 Viscous Vibration Damper 1 Yellow New Improved 12 Pad.

3628883
1
4 3628650 Viscous Vibration Damper 1 Blue New Improved 12 Pad.
5 3033629 Roll Pin 1
6 3069779 Fracture Resistant Screw 8 3/4 - 16 X 4 in.
7 3069781 Crankshaft Spacer 1
8 131584 Roll Pin 1
9 3033627 Plain Washer 8 1/2 in.
10 4382155 Fracture Resistant Screw 8
11 S 169 Hexagon Head Cap Screw 3 1/2 - 13 X 1 in.
12 S 608 Lock Washer 3 1/2 in.
13 3036115 Protective Cover 1


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
