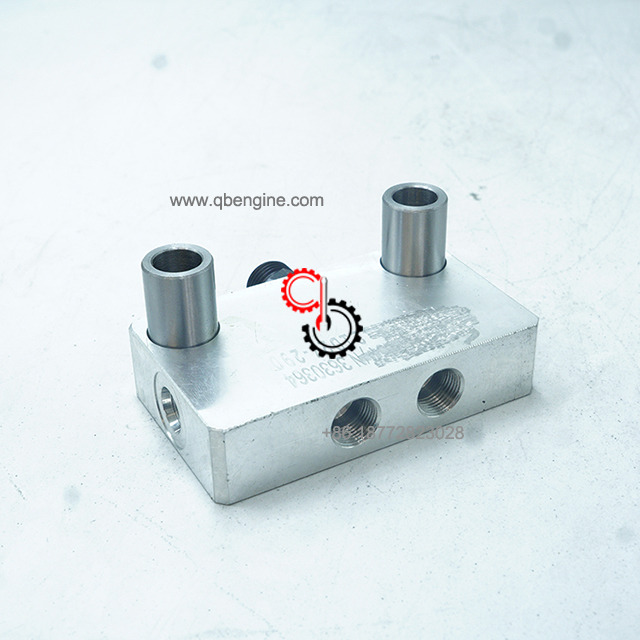

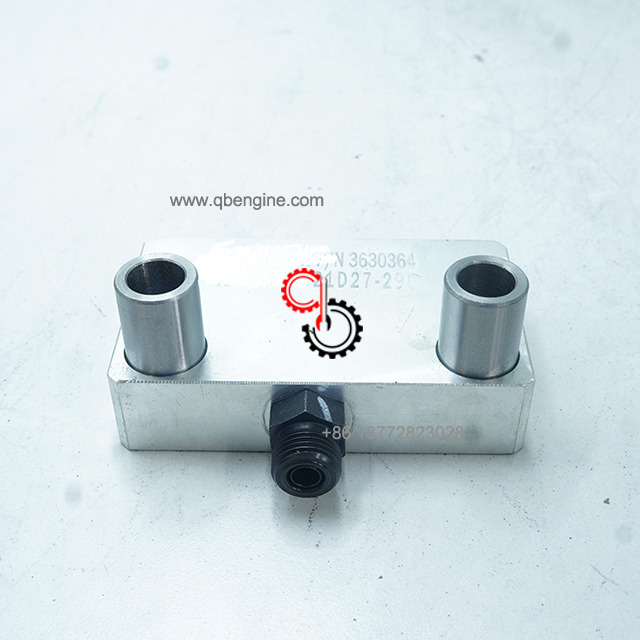

Cummins K38 K50 Fuel Block Connection 3630364

  • K38 K50

  • Cummins

  • 3630364

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Fuel Block Connection 3630364 In Stock

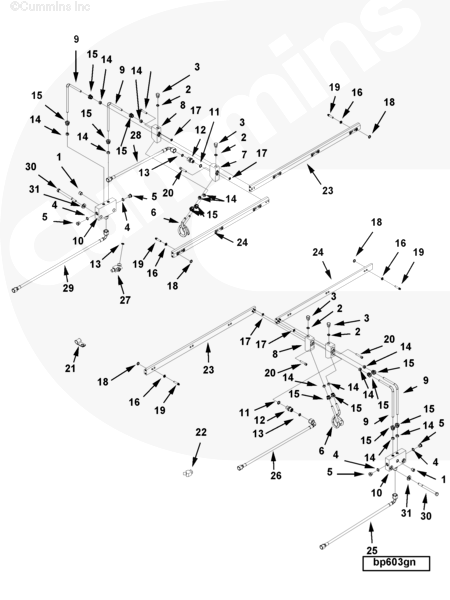

Electronic  Parts Catalog - Option Detail
Cummins  Engines GTA38, K38, KTA38GC  CM558, KTAA38 K134G, QSK38 CM2150 K106, QSK38 CM2150  MCRS, QSK38 CM850 MCRS, QSK38 G CM2358 K122

3630364

Ref No Part Number Part Description Required Remarks

BP6155 Fuel Manifold


3629077 Fuel Block Connection 1
1 3008466 Pipe Plug 1 1/4 NPT.

3023217 Threaded Plug 2 7/16 - 20 UNF
2 3036666 O-Ring Seal 1
3 3630034 Threaded Plug 1

3067424 Threaded Plug 2 1/2 - 20 UNF.
4 3037236 O-Ring Seal 1
5 3067347 Threaded Plug 1
6 3176710 Fuel Supply Tube 1
7 3628517 Fuel Block Connection 1
8 3628518 Fuel Block Connection 1
9 3628931 Fuel Supply Tube 2
10 3630364 Fuel Block Connection 1

3634685 Male Union 1
11 3037537 O-Ring Seal 1
12 3634687 Male Union 1
13 3922794 O-Ring Seal 1

3633045 Tube Connector 6
14 3633046 Ferrule Seal 1
15 3633047 Tube Nut 1

3629078 Fuel Block Connection 1

3629887 Manifold , Fuel Left Bank 1
16 127018 Plain Washer 12 1/4 in.
17 131026 O-Ring Seal 4
18 3001340 O-Ring Seal 12
19 3001811 Twelve Point Cap Screw 12 1/4 - 20 X 1 Inch.
20 3175074 Socket Head Cap Screw 4 1/4 - 20 X 1 1/4 Inch.
21 3627412 Clip 1

3630968 Fuel Block Elbows 1
22 3095292 Male Adapter Elbow 2
23 3633214 Fuel Manifold 1
24 3633215 Fuel Manifold 1
25 3633789 Flexible Hose 1
26 3634392 Flexible Hose 1

3631387 Manifold , Fuel Right Bank 1

3630764 Male Union Tee 2
27 3630765 Plain Adapter Tee 1
28 3634393 Flexible Hose 1
29 3634394 Flexible Hose 1

3630052 Mounting , Fuel Block Left Bank 1
30 S 169 A Hexagon Head Cap Screw 2 3/8 - 16 X 4 1/2 Inch.
31 108330 Plain Washer 2 3/8 in.

3630053 Mounting , Fuel Block Right Bank 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 26cm*13cm*1cm
Weight 0.477KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
