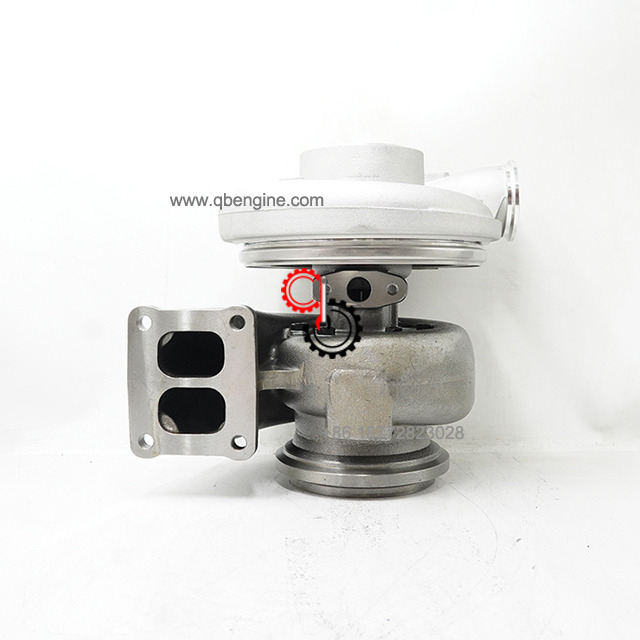

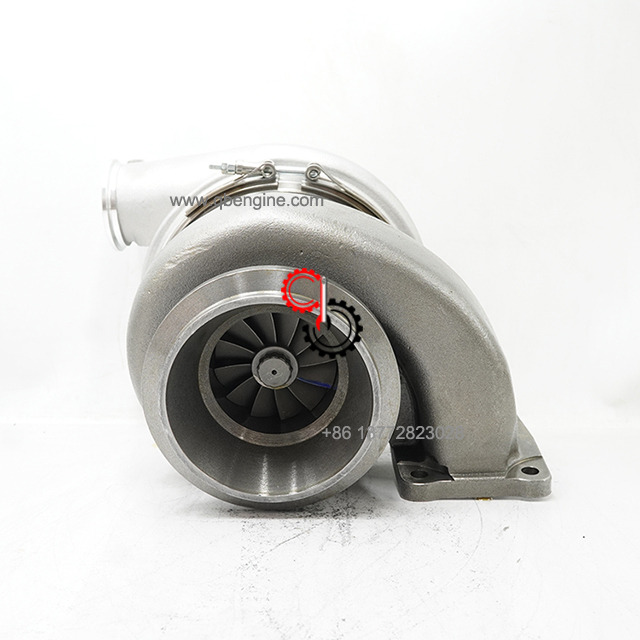

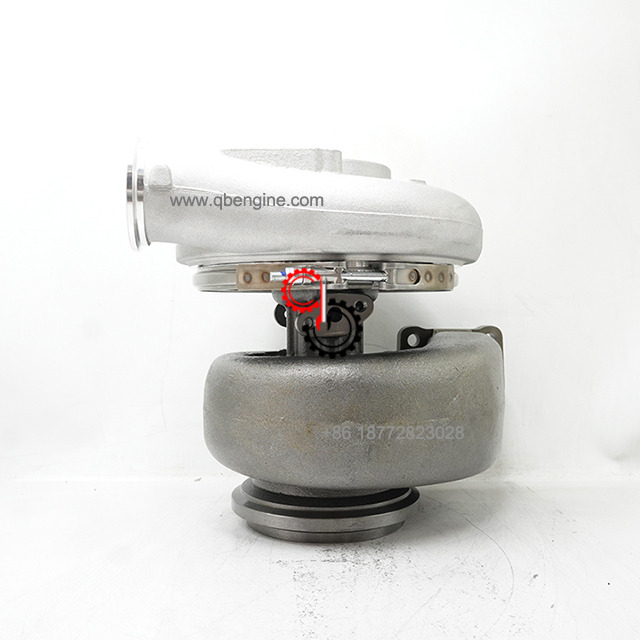

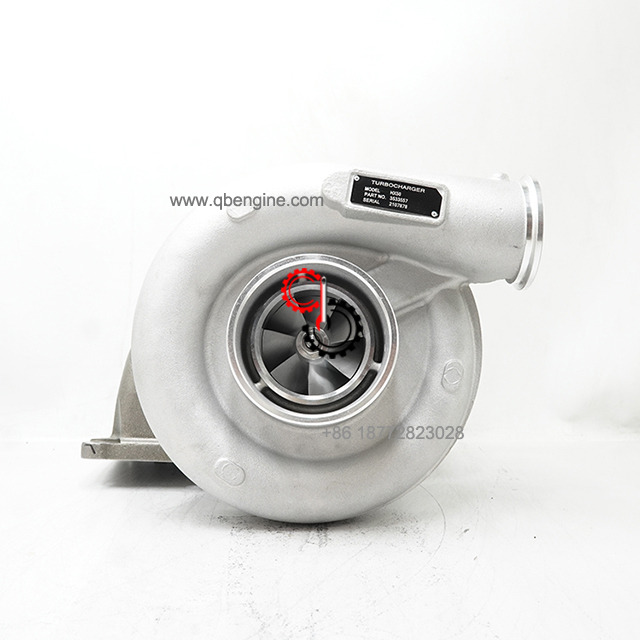

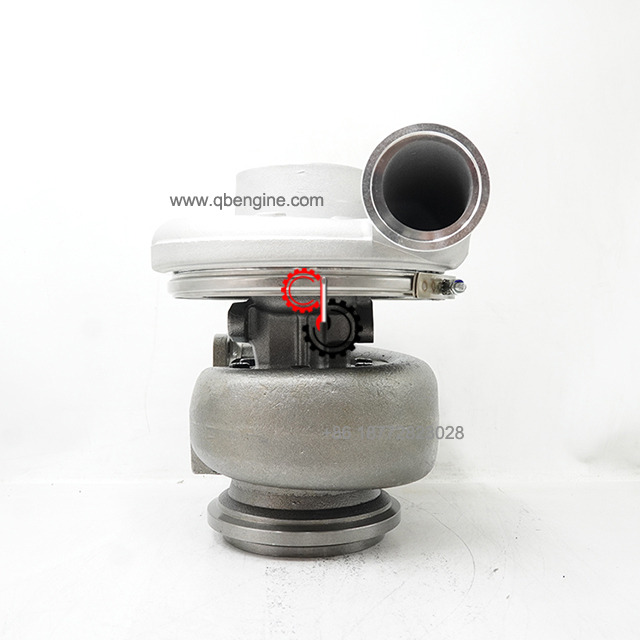

Cummins HX50 Turbocharger 3803710 3533557

  • Original

  • Cummins

  • 3803710 3533557

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins HX50 Turbocharger 3803710 3533557 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines Cummins Engine Parts   ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876   E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11   CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

3803710 3533557

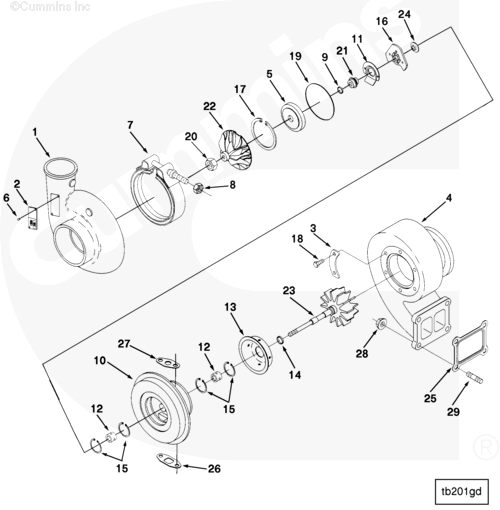

Ref No Part Number Part Description Required Remarks

PP1855-03 Turbocharger


3803710 Turbocharger Kit
Recon equivalent 3803710 RX

3533557 Turbocharger 1
1 3527932 Compressor Housing 1
2 3525562 Dataplate 1
3 3502017 Clamping Plate 3
4 3533410 Turbine Housing 1
5 3528096 Oil Seal Plate 1
6 3519163 Drive Screw 2
7 3803438 Kits , V-Band Clamp

8 3529372 Regular Hexagon Nut 1 1/4 - 28 UNF
9 3758848 Split Ring Seal 1
10 3533044 Turbocharger Bearing Housing

11 3528094 Oil Baffle 1
12 4035597 Turbocharger Bearing 2
13 3533038 Turbocharger Heat Shield

14 3756754 Split Ring Seal 1
15 3709753 Retaining Ring 4
16 3591655 Turbocharger Thrust Bearing 1
17 3723863 Retaining Ring 1
18 3759917 Hexagon Head Set Screw 6 M8 X 1.25 X 12.
19 3762915 O-Ring Seal 1
20 3760250 Lock Nut 1 M8 X 1.25.
21 3502231 Oil Slinger 1
22 3593686 Turbocharger Compressor Impeller 1
23 3531763 Shaft Wheel Rotor

24 3531868 Thrust Collar 1
25 3072919 Turbocharger Gasket 1
26 3937706 Oil Drain Gasket 1
27 3819900 Turbocharger Gasket 1

3801888 Stud Kit 4
28 3818824 Hexagon Flange Nut 1 M10 X 1.50.
29 3818823 Double End Plain Stud 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 11.8cm*11cm*12.7cm
Weight 37.8KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
