Cummins / Products / High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts
High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts
High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts
High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts
High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts

loading

High Performance Cummins Bypass Valve Body 3028552 Industrial Engne Parts

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

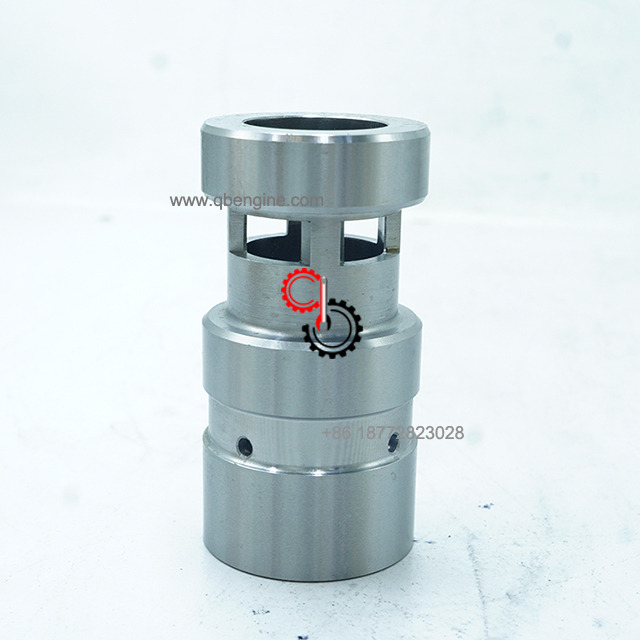

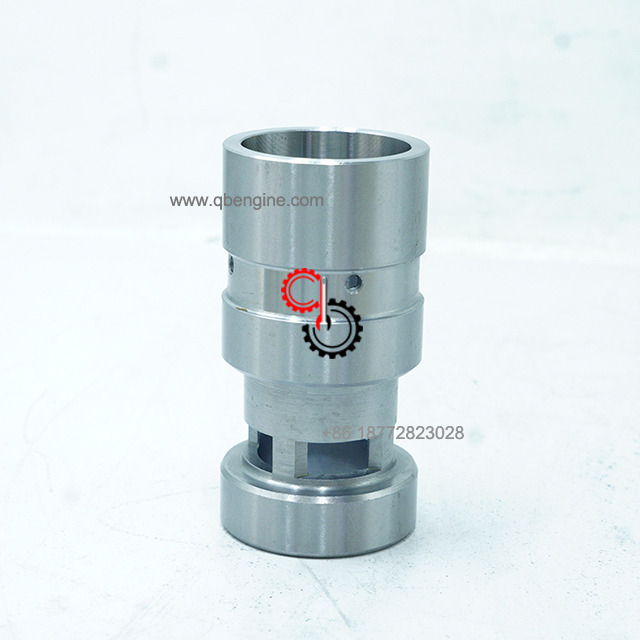

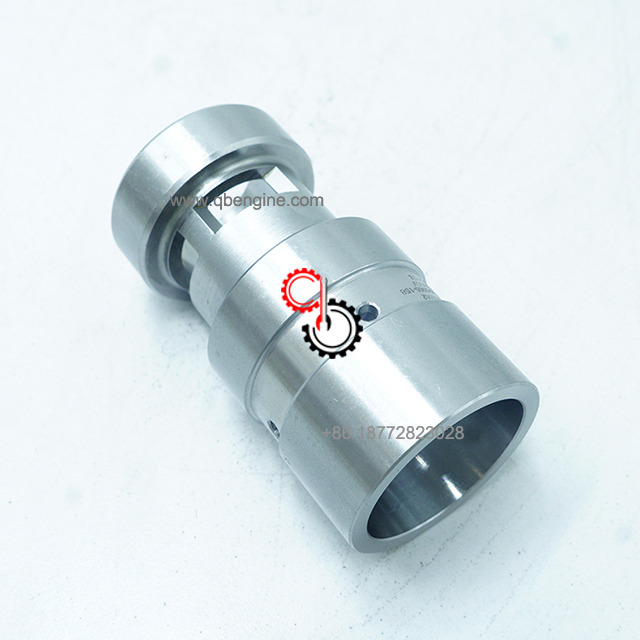

Cummins Bypass Valve Body 3028552

  • Original

  • Cummins

  • 3028552

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Bypass Valve Body 3028552 In Stock

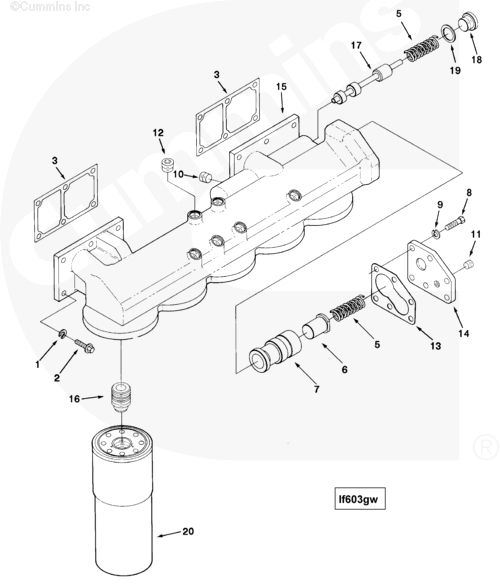

Electronic  Parts Catalog - Option Detail
Cummins  Engines G50, K50, K50-DPM, QSK50  CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850  MCRS, QSK50 DF CM850/CM2150 MCRS

3028552

Ref No Part Number Part Description Required Remarks

LF6026-03 Lubricating Oil Filter
Five element lube oil  filter...(More)
1 127362 Plain Washer 12 3/8 in.
2 191772 Twelve Point Cap Screw 12 3/8 - 16 X 1 1/4 in.
3 3629387 Filter Head Gasket 2
5 205659 Compression Spring 2
6 3021618 Pressure Regulator Plunger 1
7 3028552 Bypass Valve Body 1
8 S 103 D Hexagon Head Cap Screw 6 3/8 - 16 x 1 1/4 in.
9 S 604 Lock Washer 6 3/8 in.
10 S 910 B Pipe Plug 1 1/4 NPT.
11 3628604 Pipe Plug 1 1/8 - 27 X 0.3 in.
12 3628605 Pipe Plug 8 1/4 - 18.
13 3629141 Lubricating Oil Filter Cover  Gasket 1
14 3177433 Cover Plate 1
15 3629541 Lubricating Oil Filter Head 1
16 3627309 Filter Head Adapter 5
17 3627927 Pressure Regulator Plunger 1

3040818 Threaded Plug 1 1 3/16 - 12 UN
18 3040819 Threaded Plug 1
19 3035228 O-Ring Seal 1
20 3310169 Lubricating Oil Filter Element 5


SHIPMENT CHARACTERISTICS
Length * Width * Height 13cm*6cm*6cm
Weight 0.519KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
