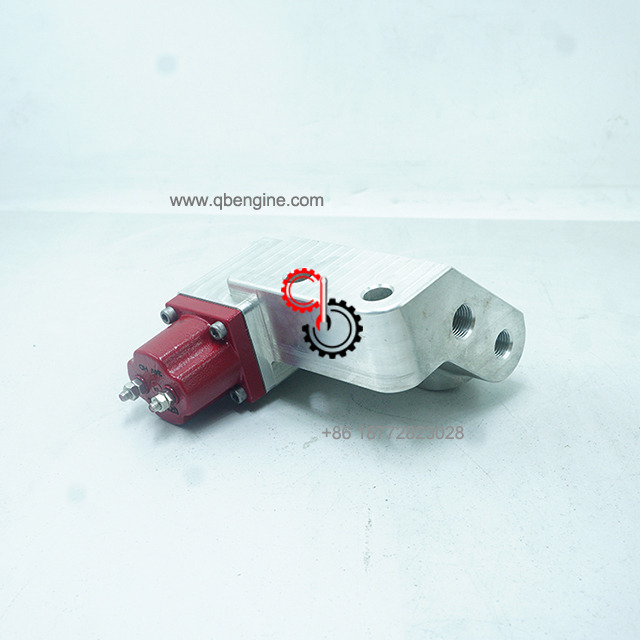

Cummins QST30 Fuel Rail Manifold 4975539 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | QST30 CM2350 T101, QST30 CM552, QST30 CM850 |
| Ref No | Part Number | Part Description | Required | Remarks |

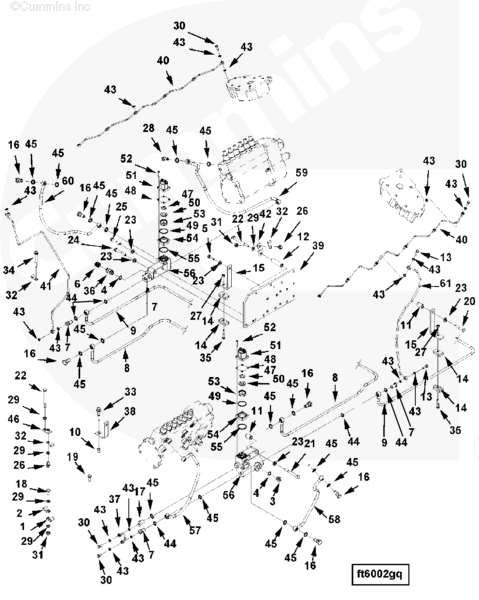

| FT5718-07 | Fuel Plumbing |
| Fuel plumbing...(More) |
| 1 | 68152 | Clip | 2 | #4 |
| 2 | 108722 | Clip | 2 |
|
| 3046202 | Threaded Plug | 1 | 3/4 - 16 UNF. |
| 3 | 3040810 | Threaded Plug | 1 |
|
| 4 | 3046201 | O-Ring Seal | 1 |
|
| 5 | 3064106 | Hexagon Head Cap Screw | 1 | M10 x 1.50 x 30. |
| 6 | 3082505 | Protective Cover | 1 |
|
| 7 | 3092103 | Banjo Connector Screw | 3 |
|
| 8 | 3092130 | Fuel Supply Tube | 1 |
|
| 9 | 3092131 | Fuel Drain Tube | 1 |
|
| 10 | 3092334 | Mounting Spacer | 2 |
|
| 11 | 3092339 | Mounting Spacer | 3 |
|
| 12 | 3092373 | Mounting Spacer | 1 |
|
| 13 | 3092545 | Banjo Connector Screw | 2 |
|
| 14 | 3092628 | Tube Clamp | 8 |
|
| 15 | 3093506 | Hose Brace | 2 |
|
| 16 | 3093598 | Banjo Connector Screw | 6 |
|
| 17 | 3093618 | Check Valve | 1 |
|
| 18 | 3093742 | Hexagon Head Cap Screw | 2 | M10 x 1.50 x 20. |
| 19 | 3093743 | Hexagon Head Cap Screw | 2 | M10 x 1.50 x 25. |
| 20 | 3093746 | Hexagon Head Cap Screw | 1 | M10 x 1.50 x 50. |
| 21 | 3093750 | Hexagon Head Cap Screw | 2 | M10 x 1.50 x 90. |
| 22 | 3093763 | Hexagon Head Cap Screw | 2 |
|
| 23 | 3093799 | Plain Washer | 6 |
|
| 24 | 3093838 | Hexagon Head Cap Screw | 1 | M10 x 1.50 x 65. |
| 25 | 3093889 | Hexagon Head Cap Screw | 1 | M10 x 1.50 x 55. |
| 26 | 3093930 | Hexagon Flange Head Cap Screw | 2 | M10 X 1.50 X 16. |
| 27 | 3093947 | Regular Hexagon Nut | 4 |
|
| 28 | 3094020 | Banjo Connector Screw | 1 |
|
| 29 | 3094024 | Plain Washer | 7 |
|
| 30 | 3094188 | Banjo Connector Screw | 14 |
|
| 31 | 3094937 | Regular Hexagon Nut | 3 |
|
| 32 | 3600861 | Clip | 4 |
|
| 33 | 3821847 | Captive Washer Cap Screw | 2 | M10 x 1.50 x 60 |
| 34 | 3896408 | Hexagon Flange Head Cap Screw | 1 |
|
| 35 | 3904222 | Hexagon Head Cap Screw | 4 | M8 X 1.25 X 45. |
| 4067813 | Male Union | 1 |
|
| 36 | 4067814 | Male Union | 1 |
|
| 37 | 4067896 | Fuel Drain Tube | 1 |
|
| 38 | 4068311 | Hose Brace | 2 |
|
| 39 | 4068469 | Filter Bracket | 1 |
|
| 40 | 4068581 | Fuel Drain Tube | 2 |
|
| 41 | 4295598 | Fuel Drain Tube | 1 |
|
| 42 | 4975513 | Retaining Brace Bracket | 1 |
|
| 43 | 4975527 | Sealing Washer | 34 |
|
| 44 | 4975529 | Sealing Washer | 12 |
|
| 45 | 4975530 | Sealing Washer | 13 |
|
| 46 | 4975537 | Retaining Brace Bracket | 1 |
|
| 4975539 | Fuel Manifold | 2 |
|
| 47 | 129768 | Valve Spring | 1 |
|
| 48 | 129839 | Shut-Off Valve Shield | 1 |
|
| 49 | 129888 | Rectangular Ring Seal | 1 |
|
| 50 | 196057 | Valve Disc | 1 |
|
| 51 | 3021420 | Solenoid | 1 |
|
| 52 | 3065944 | Captive Washer Cap Screw | 4 | #10 - 24 X 1 Inch. |
| 53 | 4088274 | Actuator Disc | 1 |
|
| 54 | 4088863 | Actuator Housing | 1 |
|
| 55 | 4975411 | Rectangular Ring Seal | 1 |
|
| 56 | 4975538 | Fuel Manifold | 1 |
|
| 57 | 4975691 | Fuel Drain Tube | 1 |
|
| 58 | 4975692 | Fuel Supply Tube | 1 |
|
| 59 | 4975693 | Fuel Drain Tube | 1 |
|
| 60 | 4975694 | Fuel Supply Tube | 1 |
|
| 61 | 4975725 | Fuel Drain Tube | 1 |
|
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 4.11cm*7.09cm*8cm |
| Weight | 0.1283KG |
