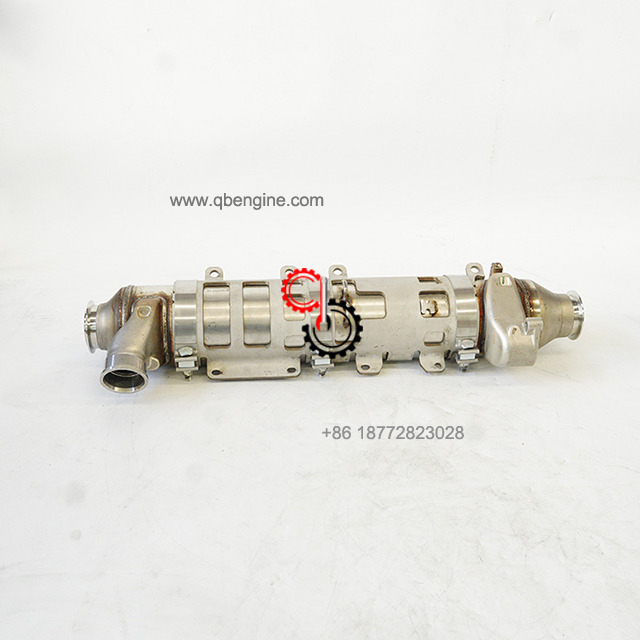

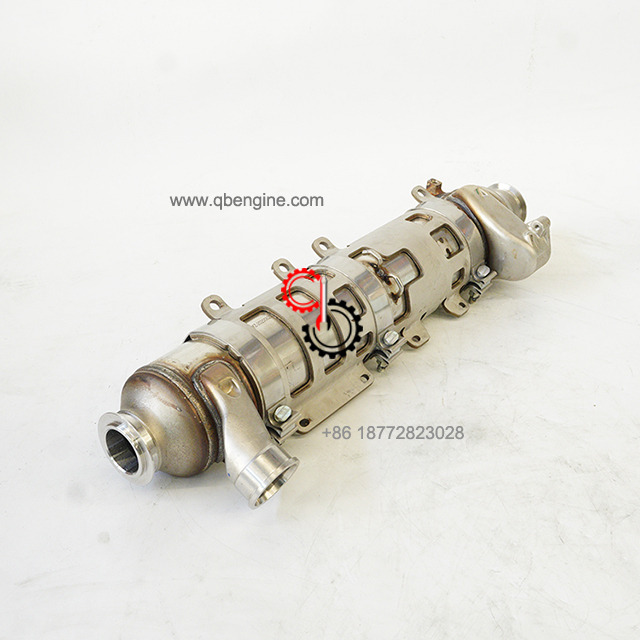

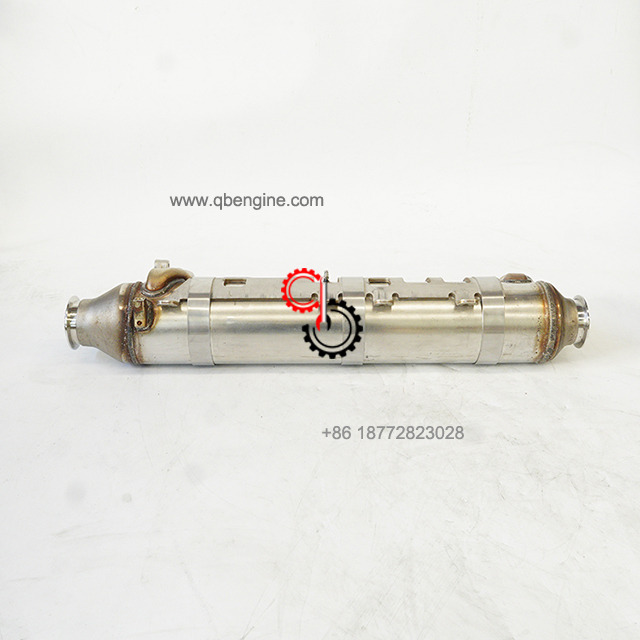

Cummins X15 Exhaust Recirculation Cooler Kit 5405814

  • X15

  • Cummins

  • 5405814

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins X15 Exhaust Recirculation Cooler Kit 5405814 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

5405814

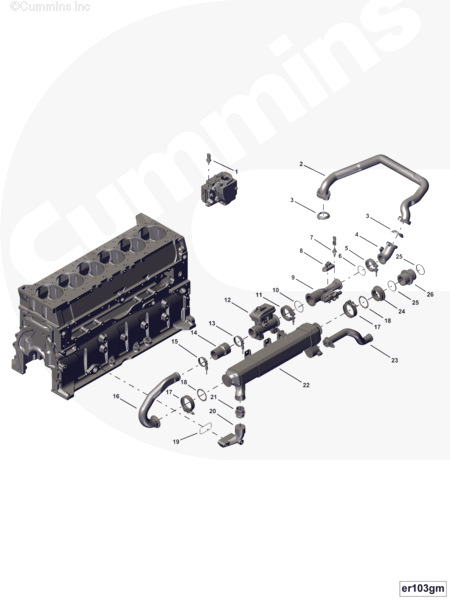

Ref No Part Number Part Description Required Remarks

ER1049-03

EXH RCN Air Arrangement
1 4928594 Pressure Sensor 1 Exhaust Gas.
2 4356406 Exhaust Transfer Tube 1
3 3687051 Seal Carrier 2
4 3690074 Exhaust Transfer Connection 1
5 3691139 V Band Clamp 1
6 3101662 O-Ring Seal 1
7 5461596 Sensor, Temperature 1 EGR Return.
8 4358939 Differential Pressure Sensor 1 DFN Pressure.

3691354 Exhaust Gas Recirculation Venturi 1

3691051 Exhaust Gas Recirculation Venturi 1
9 3691049 Exhaust Gas Recirculation Venturi 1

3332136 Male Union 2 Item Not Shown In Art.

3332137 Male Union 1

3678912 O-Ring Seal 1

3922794 O-Ring Seal 1

3686181 Threaded Plug 2 Item Not Shown In Art.

3348319 O-Ring Seal 1

3686182 Threaded Plug 1

3812092 Expansion Plug 1 Item Not Shown In Art.

3693443 Heat Shield 1 Item Not Shown In Art.

3900629 Hexagon Flange Head Cap Screw 4 Item Not Shown In Art
10 3685124 O-Ring Seal 1
11 3685309 V Band Clamp 1
12 5411635 Valve, Exh Gas Rcn 1 Offered In Kit.
13 4357142 Hose Clamp 1
14 3687223 Plain Hose 1
15 4357141 Hose Clamp 1
16 3694474 Tube, Exhaust Outlet 1
17 3683144 V Band Clamp 2
18 3104230 Exhaust Gas Recirculation Valve  Gasket 2 EGR Cooler Outlet Gasket.
19 3683607 Water Seal 1
20 3686409 Water Transfer Connection 1

3683586 Plain Pipe Coupling 1
21 3683587 Plain Pipe Coupling 1

3683814 O-Ring Seal 2 Item Not Shown In Art.
22 3690858 Exhaust Gas Recirculation Cooler 1 Offered In Kit.

3693405 Tube, Water Bypass 1

3683814 O-Ring Seal 2 Item Not Shown In Art.
23 3693406 Tube, Water Bypass 1
24 3688976 Exhaust Collar 1
25 3683940 Exhaust Manifold Seal 2
26 3688486 Exhaust Outlet Pipe 1 Serviced As 3689355.

2882561 Pressure Sensing Tube 1 Item Not Shown In Art.

3678921 Threaded Plug 1 Item Not Shown In Art.

3678912 O-Ring Seal 1

3678922 Threaded Plug 1

3682798 Hexagon Flange Nut 4 Item Not Shown In Art.

3686523 Customer Accessory Bracket 1 Item Not Shown In Art.

3686836 Accessory Support 1 Item Not Shown In Art.

3690214 Exhaust Recirculation Valve  Support 1 Item Not Shown In Art.

3691740 Exhaust Recirculation Cooler  Support 1 Item Not Shown In Art.

3819448 Captive Washer Cap Screw 4 Item Not Shown In Art

3900629 Hexagon Flange Head Cap Screw 1 Item Not Shown In Art.

3900631 Hexagon Flange Head Cap Screw 2 Item Not Shown In Art.

3900637 Hexagon Flange Head Cap Screw 7 Item Not Shown In Art.

3900678 Hexagon Flange Head Cap Screw 2 Item Not Shown In Art.

3903112 Hexagon Flange Head Cap Screw 5 Item Not Shown In Art.

3903990 Hexagon Flange Head Cap Screw 4 Item Not Shown In Art.

3904446 Hexagon Flange Head Cap Screw 1 Item Not Shown In Art.

3928527 Studded Flange Cap Screw 2 Item Not Shown In Art.

4101451 Captive Washer Cap Screw 3 Item Not Shown In Art.

4356583 Clip 1 Item Not Shown In Art.

3682414 Banjo Connector Screw 1 Item Not Shown In Art.

3690595 Flexible Hose 1 Item Not Shown In Art.

4934279 Sealing Washer 2 Item Not Shown In Art.

4374002 Tube, Vent 1 Item Not Shown In Art.

4386678 Union, Male 2 Item Not Shown In Art.

3678925 O-Ring Seal 1

4386692 Union, Male 1

3693445 Bracket, Wiring Retainer 1 Item Not Shown In Art.

3903096 Hexagon Flange Head Cap Screw 3 Item Not Shown In Art.

5343627 Safety Decal 1 Item Not Shown In Art.

4376519 Kit, Exhaust Outlet A/R

4356583 Clip 1 Item Not Shown In Art.

5343627 Safety Decal 1 Item Not Shown In Art.

5406049 Kit, Exh Rcn Valve A/R

5405814 Kit, Exh Rcn Cooler A/R

2882148 Parts Distribution Center Kit 1

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
