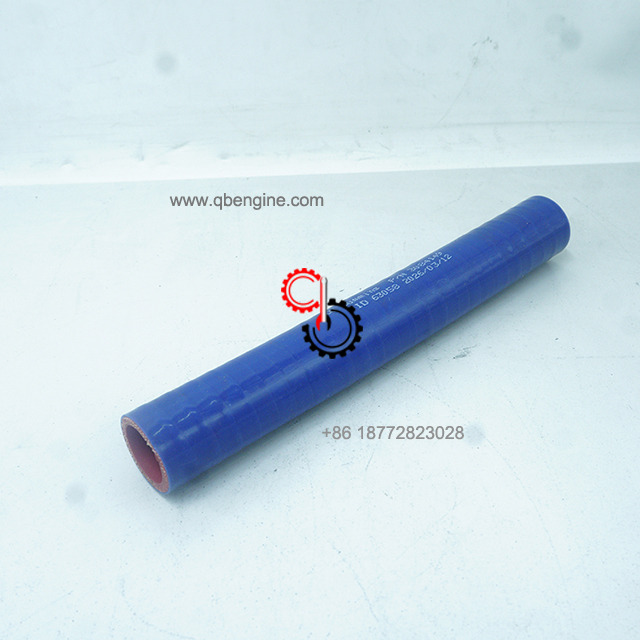

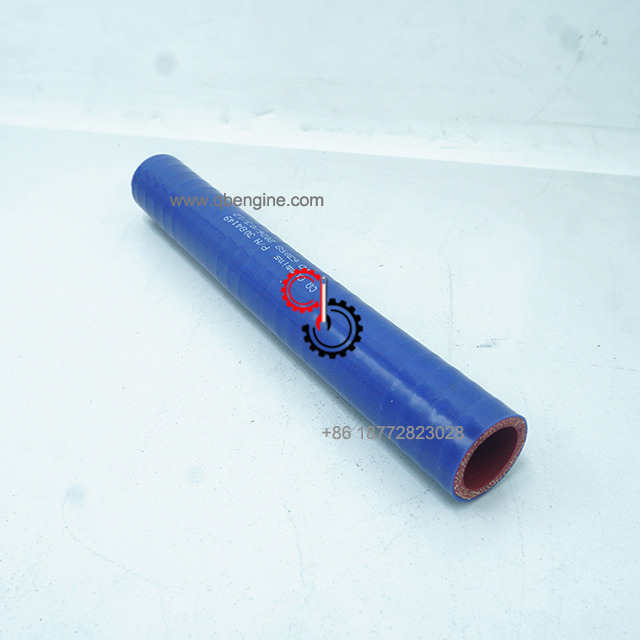

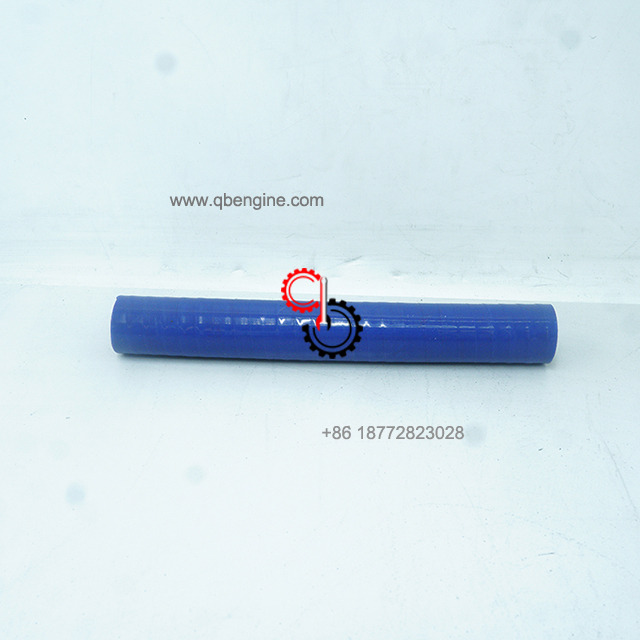

Cummins Straight Flexible Silicone Plain Hose 3084149 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G |
| Ref No | Part Number | Part Description | Required | Remarks |

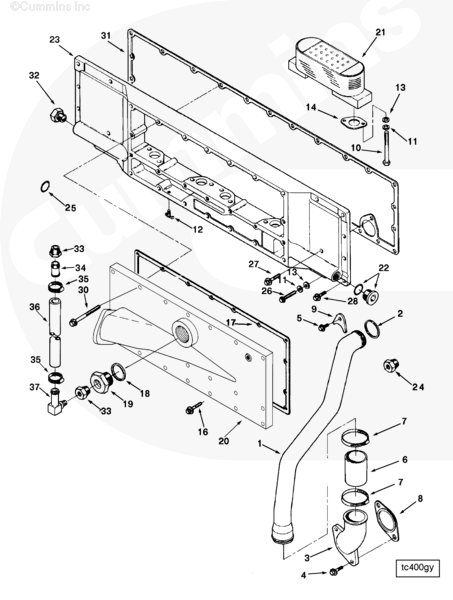

| TC4040-01 | Lubricating Oil Cooler |
| Engine oil cooler for use...(More) |
| 1 | 3011224 | Water Bypass Tube | 1 |
|
| 2 | 70624 | O-Ring Seal | 1 |
|
| 3 | 3010299 | Water Bypass Connection | 1 |
|
| 4 | 3010596 | Captive Washer Cap Screw | 2 | 3/8 - 16 x 1 1/4 in. |
| 5 | 3015283 | Captive Washer Cap Screw | 1 | 5/16 - 18 x 3/4 in. |
| 6 | 3063240 | Plain Hose | 1 |
|
| 7 | 3056787 | Hose Clamp | 2 | 1 13/16 - 2 3/4" |
| 8 | 3060912 | Connection Gasket | 1 |
|
| 9 | 3201287 | Clip | 1 |
|
| 10 | S 103 C | Hexagon Head Cap Screw | 8 | 3/8-24 X 3 3/4" |
| 11 | S 604 | Lock Washer | 8 | 3/8 in. |
| 12 | S 923 E | Draincock | 1 | 1/4 NPTF |
| 13 | 127362 | Plain Washer | 17 | 3/8 in. |
| 14 | 206973 | Oil Cooler Core Gasket | 4 |
|
| 16 | 3042889 | Captive Washer Cap Screw | 15 | 3/8 - 16 x 1 7/8 in. |
| 17 | 3065791 | Torque Converter Cooler Gasket | 1 |
|
| 18 | 145540 | O-Ring Seal | 1 |
|
| 19 | 3002075 | Female Connector | 1 |
|
| 20 | 3200988 | Lubricating Oil Cooler Cover | 1 |
|
| 21 | 3201785 | Cooler Core | 2 |
|
| 22 | 3202101 | Threaded Plug | 2 | 1 1/16 - 12 UN |
| 23 | 3085955 | Oil Cooler Housing | 1 | Serviced as 3804958 |
| 24 | 3202092 | Female Connector | 1 |
|
| 3046943 | O-Ring Seal | 1 |
|
| 25 | 3201585 | O-Ring Seal | 2 |
|
| 26 | 205275 | Twelve Point Cap Screw | 4 | 3/8 - 16 X 1 3/4 in. |
| 27 | 3033038 | Captive Washer Cap Screw | 2 | 3/8 - 16 x 1 5/8 in. |
| 28 | 3040838 | Captive Washer Cap Screw | 10 | 3/8 - 16 x 1 1/4 in. |
| 30 | 3042890 | Captive Washer Cap Screw | 14 | 3/8 - 16 x 4 in. |
| 31 | 3065790 | Lubricating Oil Cooler Housing Gasket | 1 |
|
| 32 | 3202164 | Female Connector | 1 |
|
| 33 | S 904 | Petcock , Bibb 1 / 2 In Male |
|
|
| 34 | 3393349 | Plain Hose Coupling | 1 |
|
| 35 | 43828 A | Hose Clamp | 2 | 11 16 - 1 1/2 in. |
| 36 | 3084149 | Plain Hose | 1 |
|
| 37 | 214093 | Elbow Hose Coupling |
|
|
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 22cm*3cm*3cm |
| Weight | 0.122KG |
