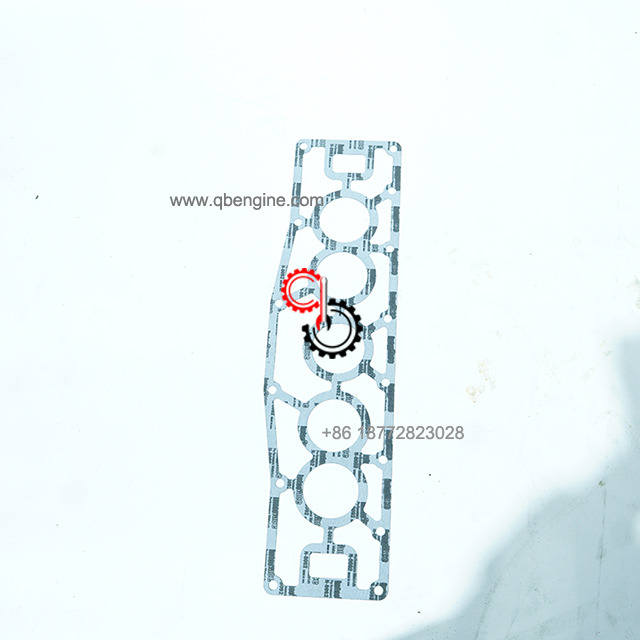

Cummins K38 K50 Thermostat Gasket 3052906

  • K38 K50

  • Cummins

  • 3052906

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K38 K50 Thermostat Gasket 3052906 In Stock

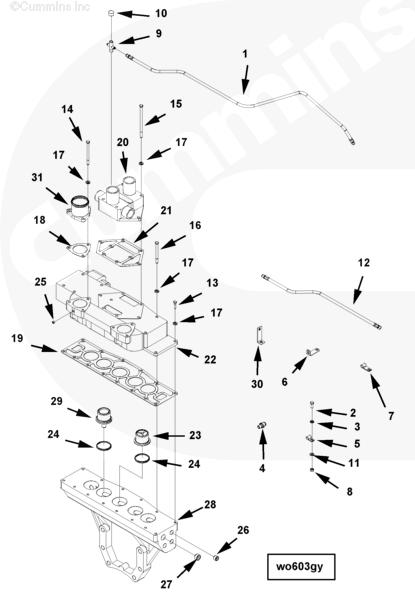

Electronic  Parts Catalog - Option Detail
Cummins Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

3052906

Ref No Part Number Part Description Required Remarks

WO6020-08 Water Outlet Connection
Water Outlet Connection

3630372 Hose Vent 1
1 AS4057S S Flexible Hose 1
2 S 109 Hexagon Head Cap Screw 4 3/8 - 16 X 7/8 in.
3 S 604 Lock Washer 4 3/8 in.
4 69461 Male Connector 1
5 108722 Clip 5
6 109895 Oil Tube Bracket 2
7 3175058 Clip 7
8 3201128 Regular Hexagon Nut 4 3/8 - 16 UNC.
9 3626660 Male Union Cross 1
10 3013786 Pipe Plug 1 3/8 NPT.
11 3628902 Plain Washer 4
12 3634473 Flexible Hose 1

3633051 Thermostat And Support Assembly  Housing 1
13 S 103 D Hexagon Head Cap Screw 8 3/8 - 16 X 1 1/4 in.
14 S 106 C Hexagon Head Cap Screw 2 3/8 - 16 X 4 3/4 in.
15 S 141 C Hexagon Head Cap Screw 4 3/8 - 16 X 6 3/4 in.
16 S 197 Hexagon Head Cap Screw 6 3/8 - 16 X 4 1/4 in.
17 3036460 Spring Washer 20
18 3049364 Connection Gasket 2
19 3052906 Thermostat Housing Gasket 1
20 3052907 Water Transfer Connection 1
21 3052908 Water Transfer Connection Gasket 1
22 3060889 Thermostat Housing 1
23 3349225 Thermostat 1
24 3627961 Thermostat Seal 5
25 3628604 Pipe Plug 1 1/8 - 27 X 0.3 in.
26 3628606 Pipe Plug 5 1/2 - 14.
27 3628607 Pipe Plug 2 3/4-14.
28 3628968 Thermostat Housing Support 1
29 3629205 Thermostat 4
30 3629729 Water Tube Bracket 1
31 3630248 Water Outlet Connection 2


SHIPMENT CHARACTERISTIC
Length * Width * Height 67cm*31cm*1cm
Weight 0.17KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.
