Cummins / Cummins Parts / Fuel Pump, Injector, Manifold, Injection Pump, Pressure Sensor / Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346
Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346
Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346 Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346
Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346 Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346
Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346 Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346

loading

Heavy Duty Diesel Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

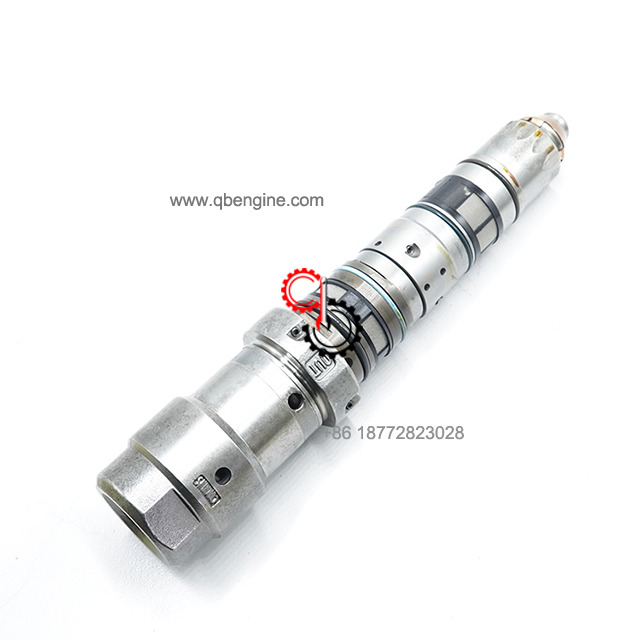

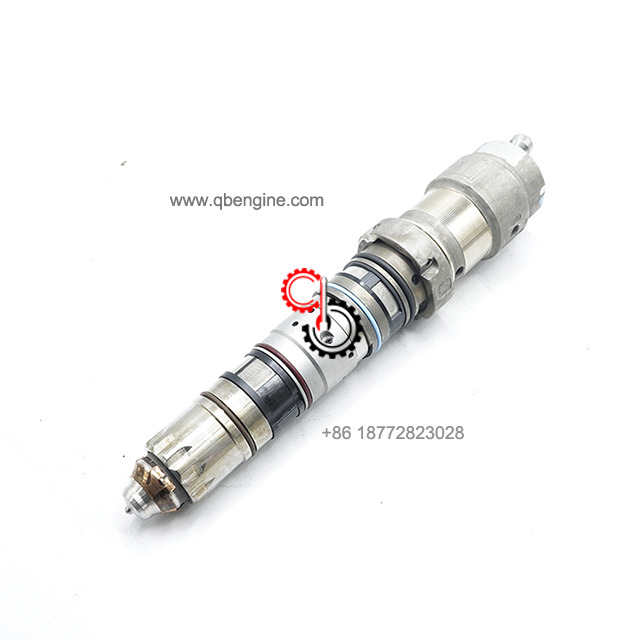

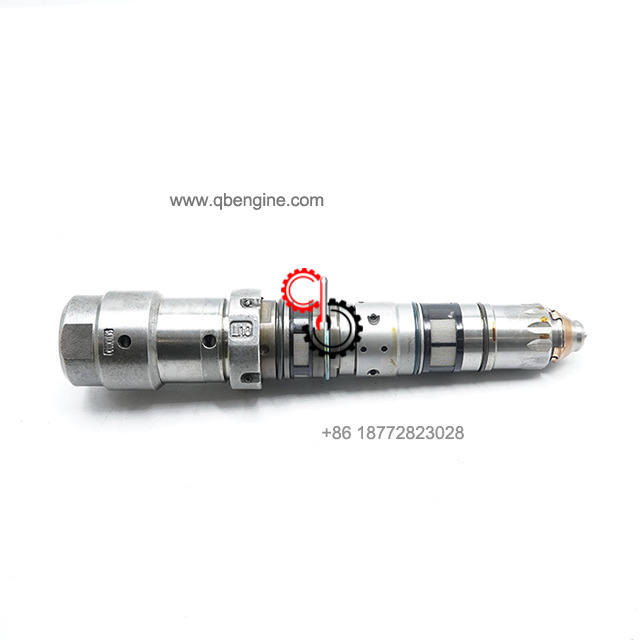

Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346

  • QSK19 QSK23 QSK45

  • Cummins

  • 4928346

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK19 QSK23 QSK45 Common Rail Fuel Injector 4928346 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, KTAA19 K131G, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM2350 K114, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

4928346

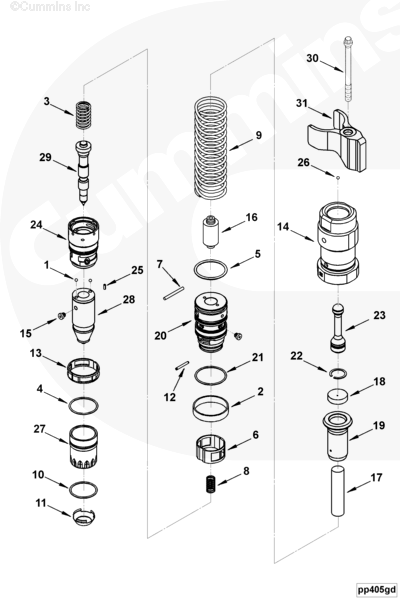

Ref No Part Number Part Description Required Remarks

PP2559-05 Injector
Injector

4928346 Injector 6 Recon Equivalent 4928346 RX
1 167157 Check Ball 1
2 4061685 Injector Sleeve 1
3 3347828 Injector Spring 1
4 3347937 O-Ring Seal 1 Refer To TSB170004.
5 3347939 O-Ring Seal 1
6 3348004 Filter Screen 1
7 3348515 Spiral Pin 2
8 3348527 Injector Spring 1
9 3417290 Injector Spring 1
10 3867651 O-Ring Seal 1
11 4307148 Injector Seal 1
12 4002127 Roll Pin 2
13 4009692 Filter Screen 1
14 4076528 Top Stop Spring Housing 1
15 3045047 Injector Orifice Plug 2
16 3348547 Injector Timing Plunger 1

4002138 Injector Plunger 1
17 3348523 Injector Plunger 1

4002137 Injector Plunger Coupling 1
18 3867424 Injector Coupling Socket 1
19 4002136 Injector Plunger Coupling 1
20 4009787 Injector Barrel 1
21 4010577 O-Ring Seal 1

4076567 Injector Plunger Link 1
22 3867742 Injector Link Retainer 1
23 3348552 Injector Plunger Link 1

4928340 Injector Nozzle 1
15 3045047 Injector Orifice Plug 1
24 4010578 Injector Spring Housing 1
25 203426 Roll Pin 2
26 3076068 Check Ball 2
27 3329999 Injector Nozzle Retainer 1

4025822 Nozzle And Plunger 1
28 4928351 Injector Nozzle 1
29 4903205 Injector Plunger 1
30 3867147 Twelve Point Cap Screw 6
31 3348663 Injector Clamp 6






SHIPMENT CHARACTERISTICS

Length * Width * Height

 33cm*11cm*11cm
Weight 1.858KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
