Cummins / Cummins Parts / Filter, Flywheel, Flywheel Housing, Air Inlet Pipe, Air Exhaust Pipe / Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105
Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105
Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105 Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105
Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105 Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105
Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105 Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105

loading

Heavy Duty Diesel Cummins Engine K19 Fuel System Part Fuel Filter 3315844 FF105

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

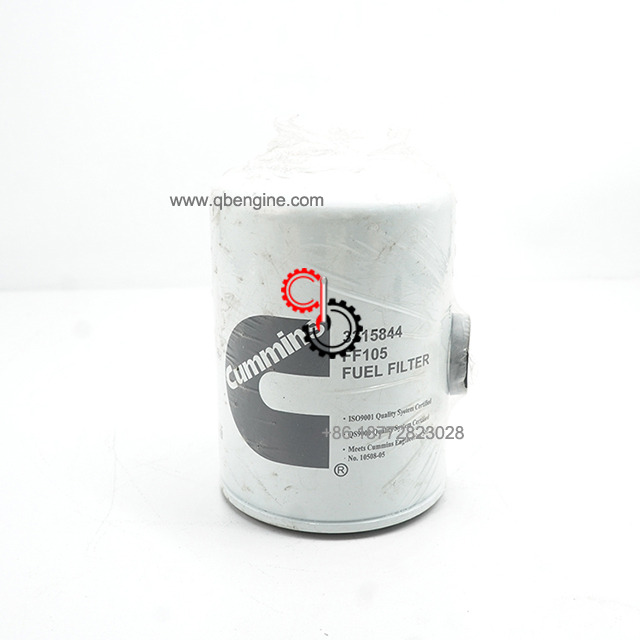

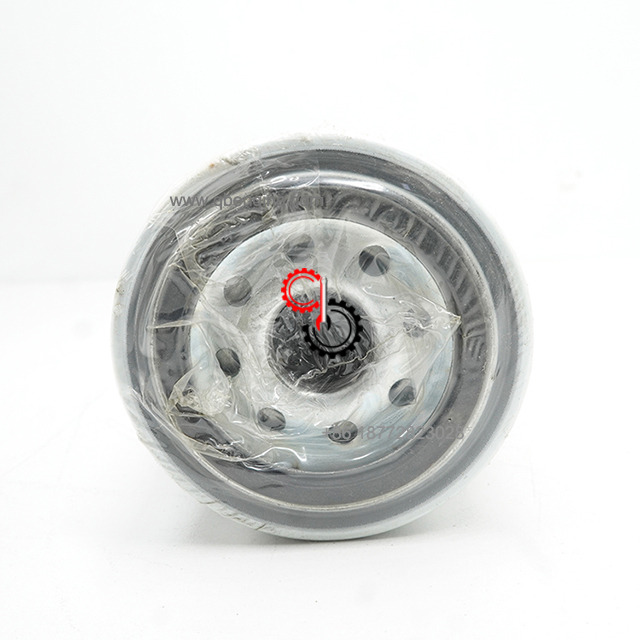

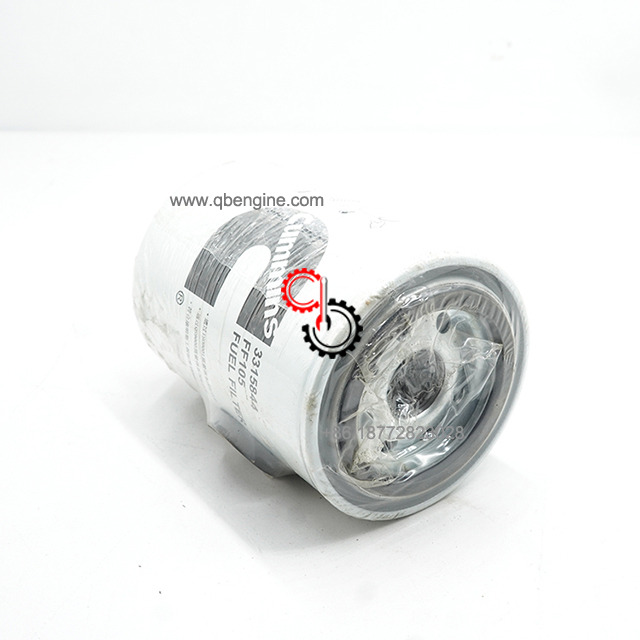

Cummins K19 Fuel Filter 3315844 FF105

  • K19

  • Cummins

  • 3315844 FF105

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K19 Fuel Filter 3315844 FF105 In Stock

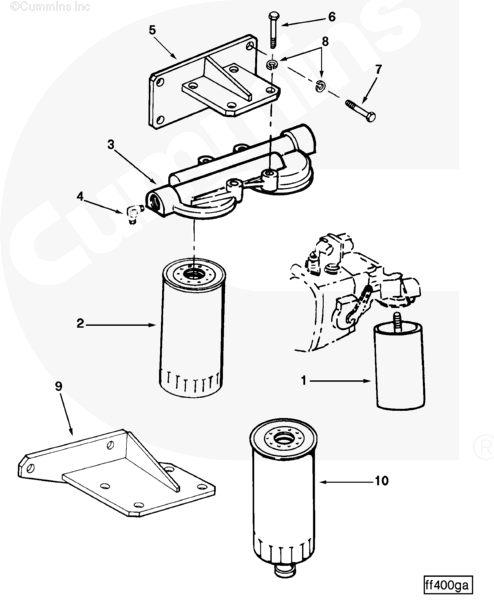

Electronic Parts Catalog - Option Detail
Cummins Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3315844

Ref No Part Number Part Description Required Remarks
1 3315844 Fuel Filter


AR13274 Fuel Filter

2 3315846 Fuel Filter 2
3 212013 Fuel Filter Head 1

255622 Rectangular Ring Seal 2
4 129859 Male Union Elbow 2 7/8-14 X 7/8-14 (90)

129858 O-Ring Seal 2
5 3036027 Filter Bracket 1
6 191772 Twelve Point Cap Screw 4 3/8 - 16 X 1 1/4 in.
7 205354 Twelve Point Cap Screw 4 3/8 - 16 x 1 in.
8 S 604 Lock Washer 8 3/8 in.
9 206294 Filter Bracket 1

191772 Twelve Point Cap Screw 4 3/8 - 16 X 1 1/4 in.

206332 Twelve Point Cap Screw 3 5/8 - 11 X 1 1/4"

S 603 Lock Washer 3 5/8 in.

S 604 Lock Washer 4 3/8 in.
10 3310216 Fuel Filter 1

255622 Rectangular Ring Seal 1


SHIPMENT CHARACTERISTIC

Length * Width * Height

 9.5cm*9.5cm*13.5cm
Weight 0.56KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
