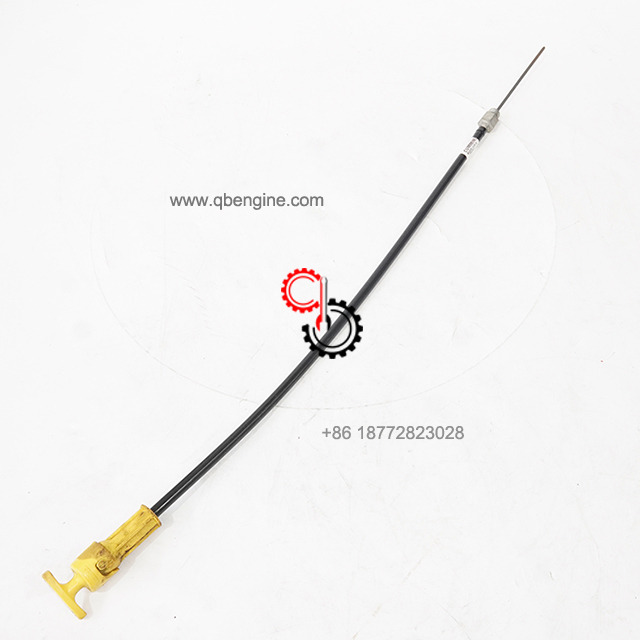

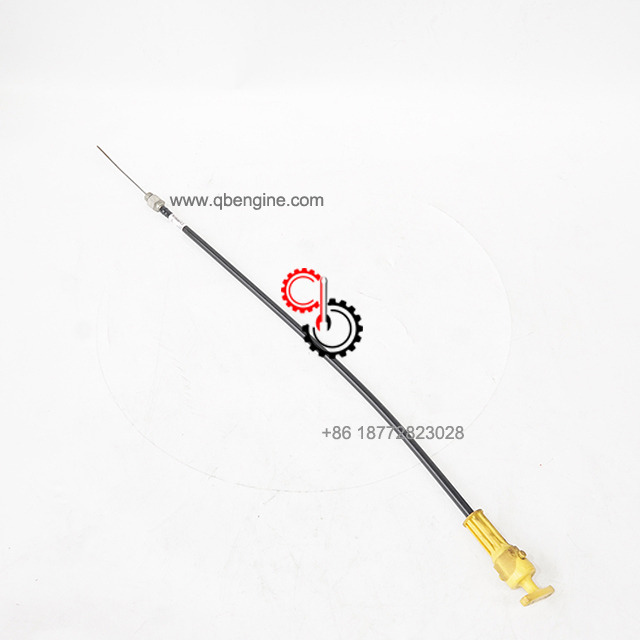

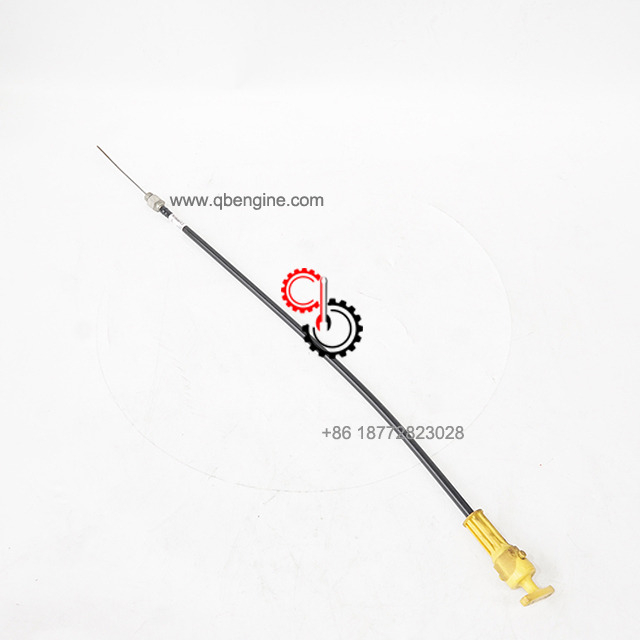

Cummins QSK60 Oil Level Gauge 3637019 3636983 3636984

  • QSK60

  • Cummins

  • 3637019 3636983 3636984

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Oil Level Gauge 3637019 3636983 3636984 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3637019

Ref No Part Number Part Description Required Remarks

LG6067-04 Oil Level Gauge Location
Oil Level Gauge Location
1 3062329 Wire Tie Clamp 3
2 3636373 Connection Gasket 1

3637019 Oil Level Gauge 1
3 3636983 Oil Gauge Tube 1
4 3636984 Dipstick 1
5 3678786 O-Ring Seal 1 M18.
6 3637745 Wear Sleeve 1
7 3637746 Tube Clamp 1
8 4380745 Oil Tube Bracket 1
9 3637965 Oil Tube Bracket 1
10 3640490 Oil Tube Bracket 1
11 3902662 Hexagon Flange Nut 1 M10 X 1.50.
12 3903112 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 30.
13 3903990 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 20.
14 4380741 Oil Gauge Tube 1

SHIPMENT CHARACTERISTIC

Length * Width * Height

 100cm*7cm*7cm
Weight 0.315KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
