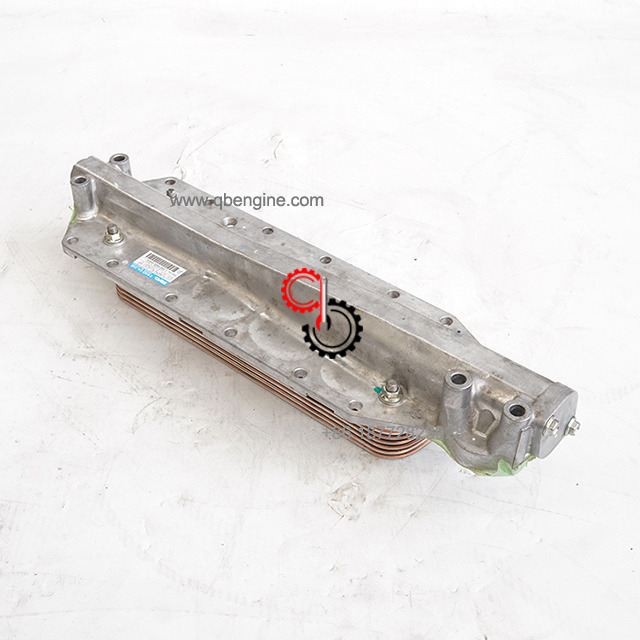

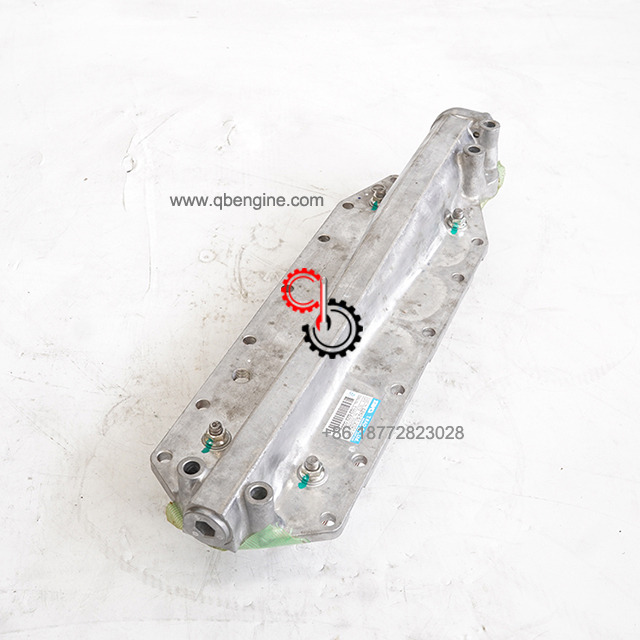

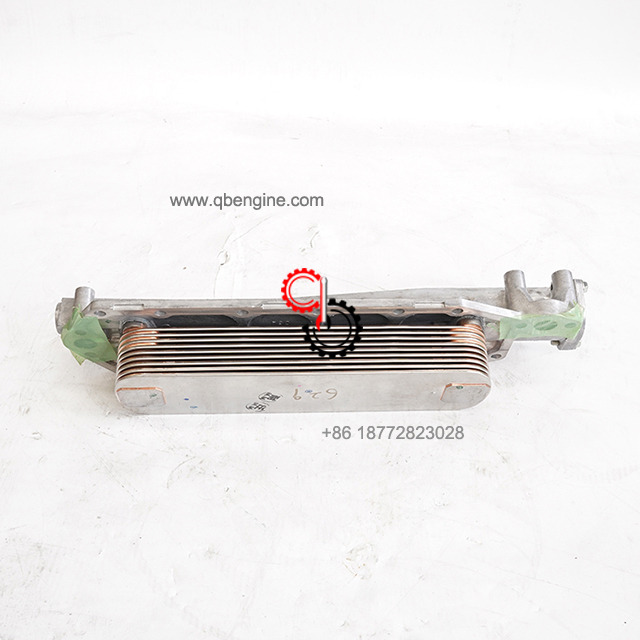

Cummins QSK23 Oil Cooler Assembly 4096849 4095522 4096850 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | QSK23 CM2250 K109, QSK23 CM500 |

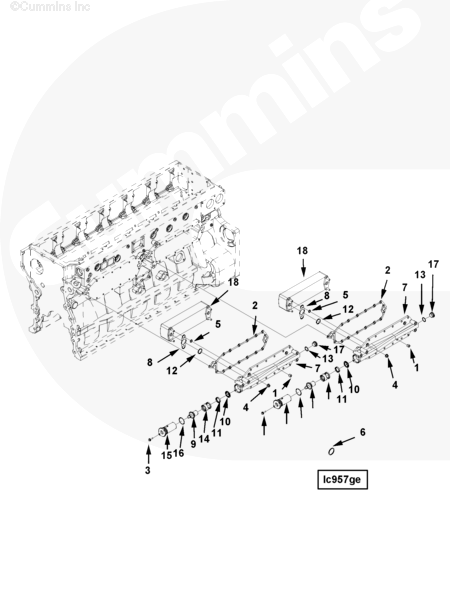

| Ref No | Part Number | Part Description | Required | Remarks |
| LC50003 | Engine Oil Cooler |
| Engine Oil Cooler |
| 1 | 3093821 | Pipe Plug | 2 |
|
| 2 | 4095520 | Lubricating Oil Cooler Cover Gasket | 2 |
|
| 4096849 | Oil Cooler | 2 |
|
| 3 | 3093730 | Hexagon Flange Head Cap Screw | 2 | M8 X 1.25 X 25. |
| 4 | 3094050 | Hexagon Flange Nut | 4 |
|
| 5 | 3094323 | O-Ring Seal | 4 |
|
| 6 |
|
|
| Item Not In This Version. |
| 7 | 4095522 | Lubricating Oil Cooler Cover | 1 |
|
| 8 | 4095523 | Oil Cooler Core Gasket | 2 |
|
| 9 | 4095524 | Thermostat | 1 |
|
| 10 | 4095525 | Cover Plate | 1 |
|
| 11 | 4095526 | Thermostat Seal | 1 |
|
| 12 | 4095541 | O-Ring Seal | 2 |
|
| 13 | 4095542 | O-Ring Seal | 1 |
|
| 14 | 4095783 | Thermostat Seat | 1 |
|
| 15 | 4095786 | Protective Cover | 1 |
|
| 16 | 4095898 | O-Ring Seal | 1 |
|
| 17 | 4095980 | Threaded Plug | 1 |
|
| 18 | 4096850 | Cooler Core | 1 |
|
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 25cm*8cm*8cm |
| Weight | 9.6KG |
