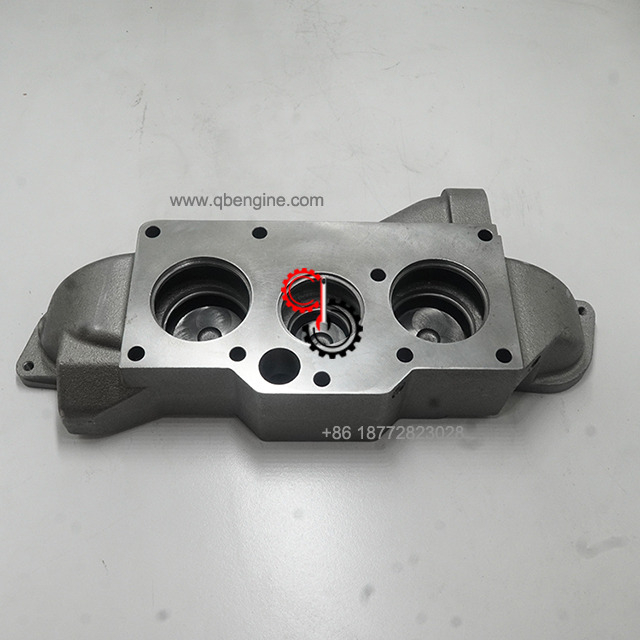

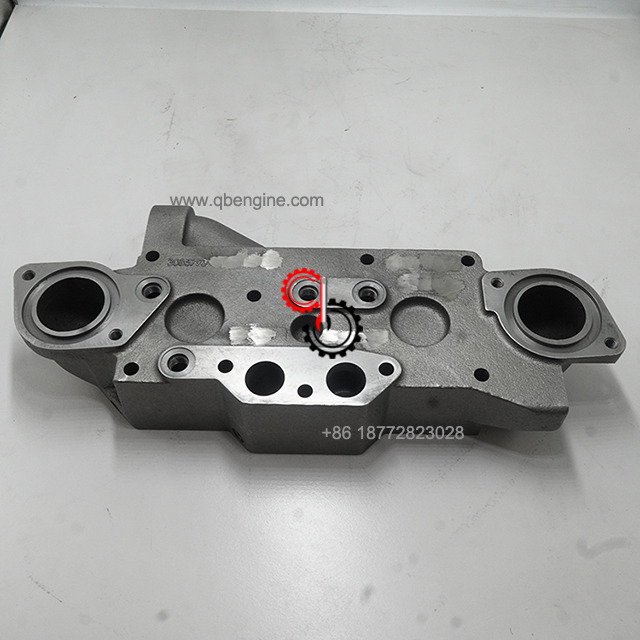

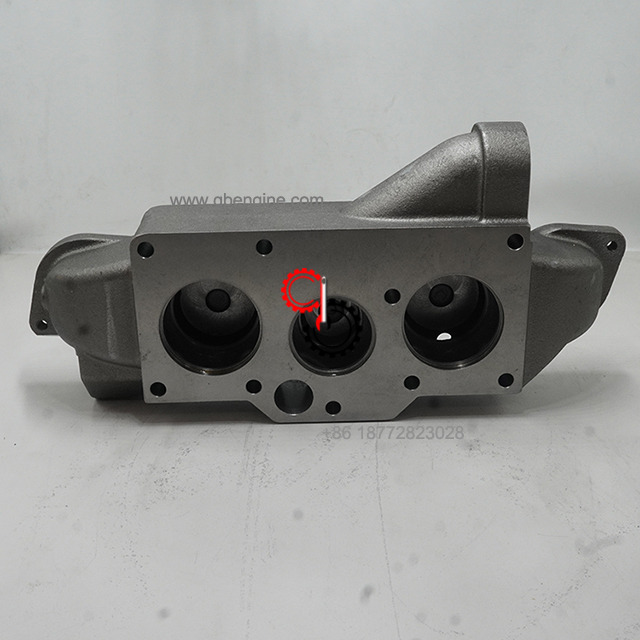

Cummins QSK19 Thermostat Housing 3085793

  • QSK19

  • Cummins

  • 3041859

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK19 Thermostat Housing 3085793 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3085793

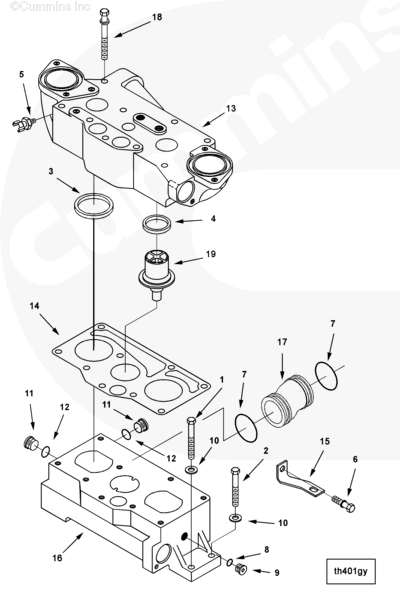

Ref No Part Number Part Description Required Remarks

TH4714-01 Thermostat Housing
Housing, thermostat...(More)
1 S 102 D Hexagon Head Cap Screw 1 3/8 - 16 x 3 in.
2 S 141 Hexagon Head Cap Screw 1 3/8 - 16 X 2 3/4 in.
3 186780 Thermostat Seal 2
4 188318 Thermostat Seal 1
5 214345 Draincock 2
6 3012472 Captive Washer Cap Screw 2 3/8 - 16 X 1 1/2 in.
7 3028291 O-Ring Seal 2

3037536 Threaded Plug 2 9/16 - 18 UNF
8 3037537 O-Ring Seal 1
9 3040813 Threaded Plug 1 9/16 - 18 UNF
10 3042329 Plain Washer 2 3/8 in.

3046202 Threaded Plug 4 3/4 - 16 UNF.
11 3040810 Threaded Plug 4
12 3046201 O-Ring Seal 1
13 3085793 Thermostat Housing 1
14 3085803 Thermostat Housing Gasket 1
15 3086026 Tube Brace 1
16 3090239 Thermostat Housing Support 1
17 207378 Water Transfer Tube 1
18 3408216 Captive Washer Cap Screw 6
19 4000464 Thermostat 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 61cm*20cm*18cm
Weight 14.061KG
