Cummins / Products / Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486
Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486
Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486 Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486
Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486 Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486
Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486 Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486

loading

Heavy Duty Cummins Engine Parts Stainless Steel 3642486 T Bolt Clamp 3642486

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins T Bolt Clamp 3642486

  • original

  • Cummins

  • 3642486

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins T Bolt Clamp 3642486 In Stock

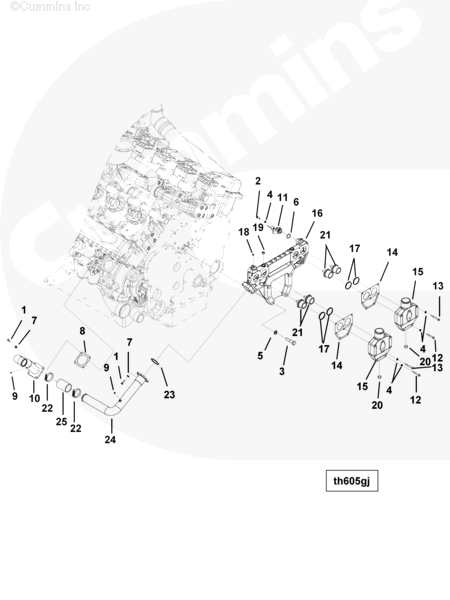

Electronic Parts Catalog - Option Detail
Cummins Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS


3642486


Ref No Part Number Part Description Required Remarks

TH6729 Thermostat Housing
Thermostat Housing
1 S 103 D Hexagon Head Cap Screw 6 3/8 - 16 X 1 1/4 (in).
2 S 112 Hexagon Head Cap Screw 2 3/8 - 16 X 1 (in).
3 S 195 B Hexagon Head Cap Screw 6 3/4 - 10 X 3 1/4 (in).
4 S 604 Lock Washer 2 3/8 (in).
5 S 611 Lock Washer 6 3/4 (in).
6 163654 O-Ring Seal 1
7 3036460 Spring Washer 6
8 3050944 Flange Gasket 1
9 3628604 Pipe Plug 2 1/8 - 27 X 0.3 (in).
10 3635513 Water Bypass Tube 1
11 3637347 Thermostat Housing Cover 1

3637471 Thermostat Housing 1
12 S 141 Hexagon Head Cap Screw 4 3/8 - 16 X 2 3/4 (in).
13 S 163 Hexagon Head Cap Screw 4 3/8 - 16 X 3 1/4 (in).
4 S 604 Lock Washer 8 3/8 (in).
14 206443 Thermostat Housing Gasket 2
15 3035844 Thermostat Housing 2
16 3627808 Thermostat Housing Support 1
17 3627961 Thermostat Seal 4
18 3628605 Pipe Plug 4 1/4 - 18.
19 3628606 Pipe Plug 9 1/2 - 14.
20 3628607 Pipe Plug 2 3/4-14.
21 3629205 Thermostat 4
22 3642486 T-Bolt Clamp 2
23 3647993 O-Ring Seal 1
24 3650264 Water Transfer Tube 1
25 4007416 Plain Hose 1

SHIPMENT CHARACTERISTICS
Length * Width * Height 16cm*13cm*0.3cm
Weight 0.067KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
