Cummins / Cummins Parts / Fan Support, Fan, Idler Gear, Belt Tensioner, Fan Pulley / Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647
Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647
Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647 Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647
Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647 Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647
Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647 Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647

loading

Heavy Duty Cummins Engine Belt Shield Parts Belt Guard Mounting Bracket 2888647

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

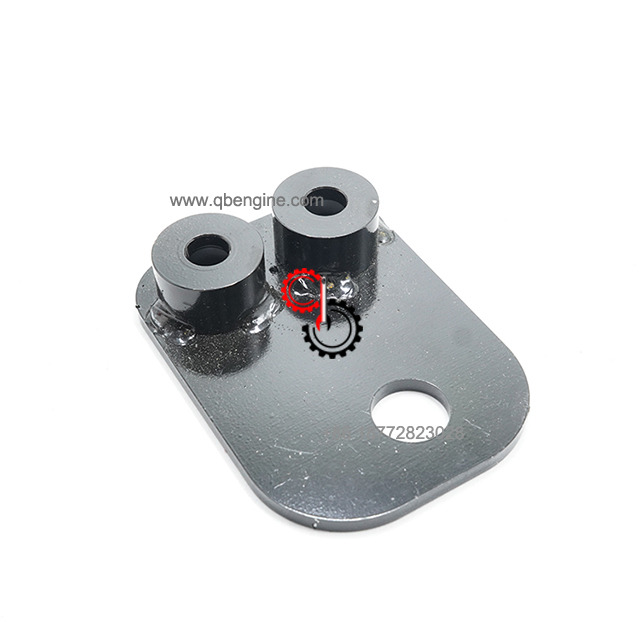

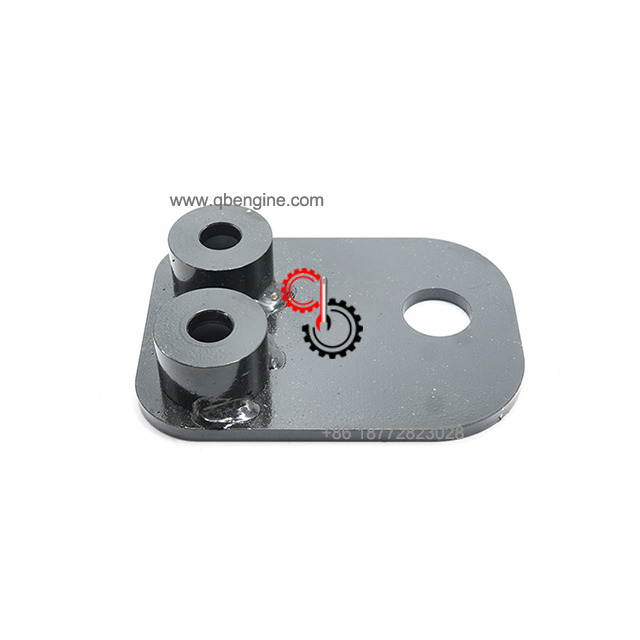

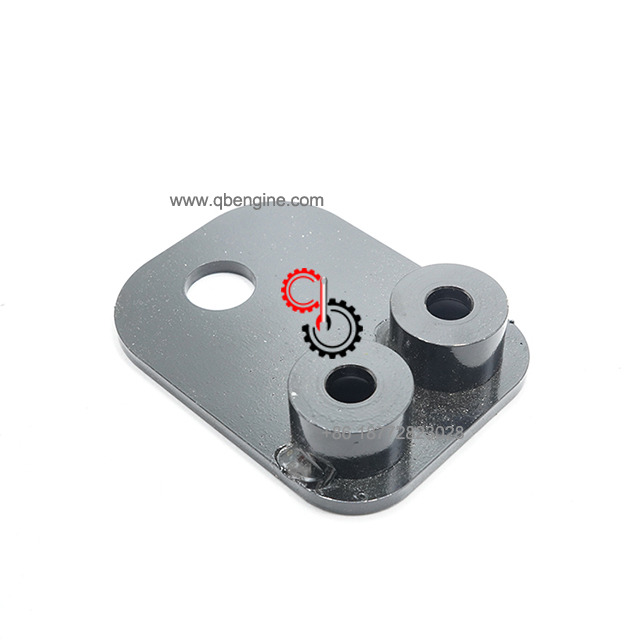

Cummins Belt Guard Mounting Bracket 2888647

  • Original

  • Cummins

  • 2888647

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Belt Guard Mounting Bracket 2888647 In Stock

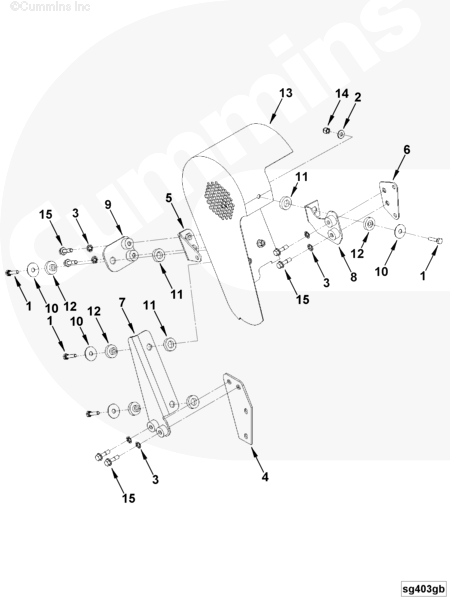

Electronic Parts Catalog - Option Detail
Cummins Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

2888647

Ref No Part Number Part Description Required Remarks

SG4745 Guard Package
Guard Package...(More)
1 108707 Hexagon Head Cap Screw 4 3/8 - 16 x 1 1/2 in.
2 146172 Plain Washer 4 3/8 in
3 2888519 Retaining Ring 6
4 2888522 Belt Guard Bracket 1
5 2888528 Belt Guard Bracket 1
6 2888532 Belt Guard Bracket 1
7 2888645 Belt Guard Bracket 1
8 2888646 Belt Guard Brace 1
9 2888647 Belt Guard Bracket 1
10 3033800 Plain Washer 4 3/8 in.
11 3035083 Vibration Isolator 4
12 3035084 Vibration Isolator 4
13 3090386 Belt Guard 1
14 3175239 Lock Nut 4
15 3643022 Hexagon Flange Head Cap Screw 6


SHIPMENT CHARACTERISTICS
Length * Width * Height 4.3cm*3.4cm*2.88cm
Weight 0.85KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
