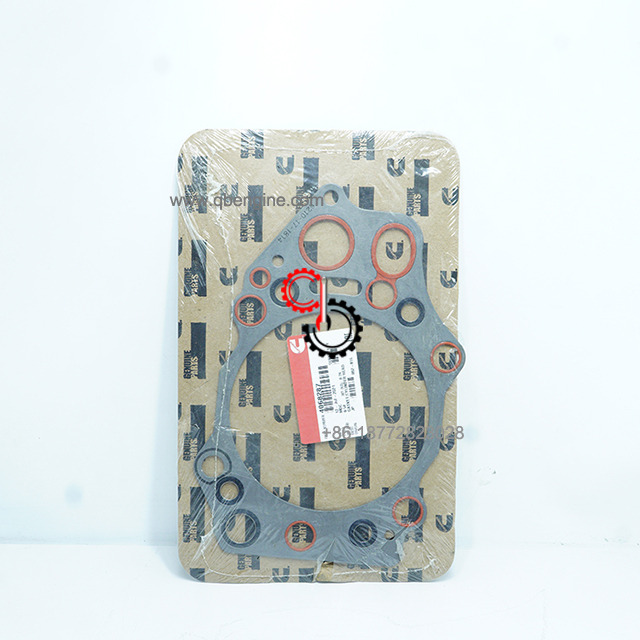

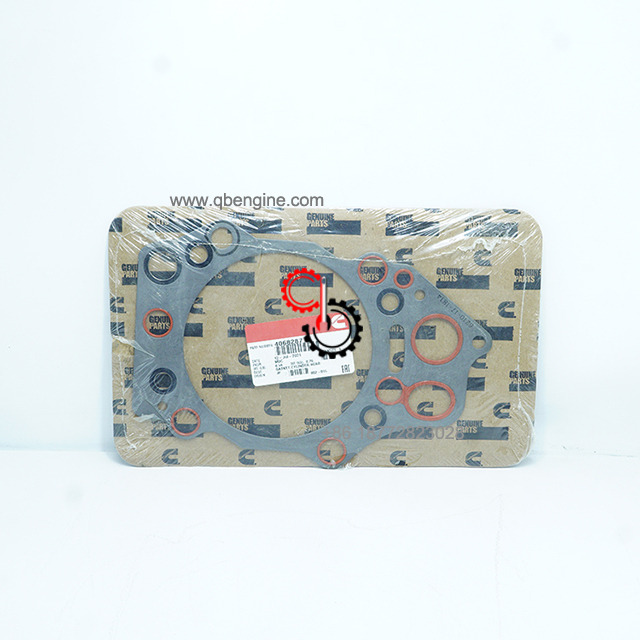

Cummins QST30 Cylinder Head Gasket 4068287

  • QST30

  • Cummins

  • 4068287

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QST30 Cylinder Head Gasket 4068287 In Stock

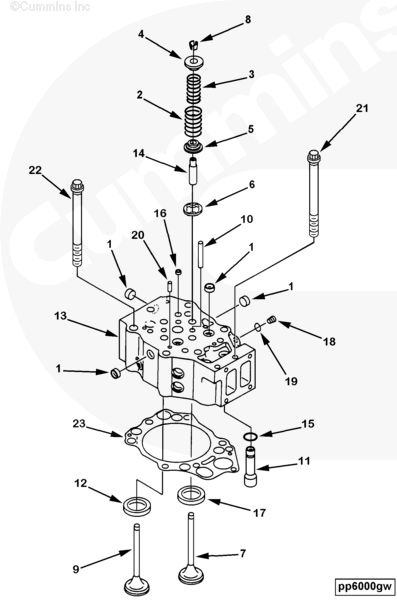

Electronic   Parts Catalog - Option Detail
Cummins  Engines QST30 CM2350 T101, QST30 CM552, QST30 CM850

4068287

Ref No Part Number Part Description Required Remarks

PP5715-06 Cylinder Head


4068673 Cylinder Head 12
1 3092396 Expansion Plug 12
2 3092508 Valve Spring 4
3 3092509 Valve Spring 4
4 3092510 Valve Spring Retainer 4
5 3092511 Valve Spring Guide 4
6 3092608 Valve Stem Seal 4

3804866 Intake Valve Kit 2
7 4975848 Intake Valve 1
8 3092344 Valve Collet 2

3804867 Exhaust Valve Kit 2
8 3092344 Valve Collet 2
9 4310999 Exhaust Valve 1

4068672 Cylinder Head 1
10 3092459 Valve Crosshead Guide 2
11 3092460 Sleeve 1
12 3092461 Valve Insert 2
13 3092557 Cylinder Head 1
14 3092585 Valve Stem Guide 4
15 3093781 O-Ring Seal 1
16 3093782 Expansion Plug 1
17 3094159 Valve Insert 2
18 3678924 Threaded Plug 1 M10 X 1.00 X 13.5
19 3678925 O-Ring Seal 1 M10.
20 3093784 Pin Dowel 2
21 3093789 Twelve Point Cap Screw 12
22 3092463 Fracture Resistant Screw 72
23 4068287 Cylinder Head Gasket 12


SHIPMENT CHARACTERISTICS
Length * Width * Height 35cm*21cm*1cm
Weight 0.263KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.
