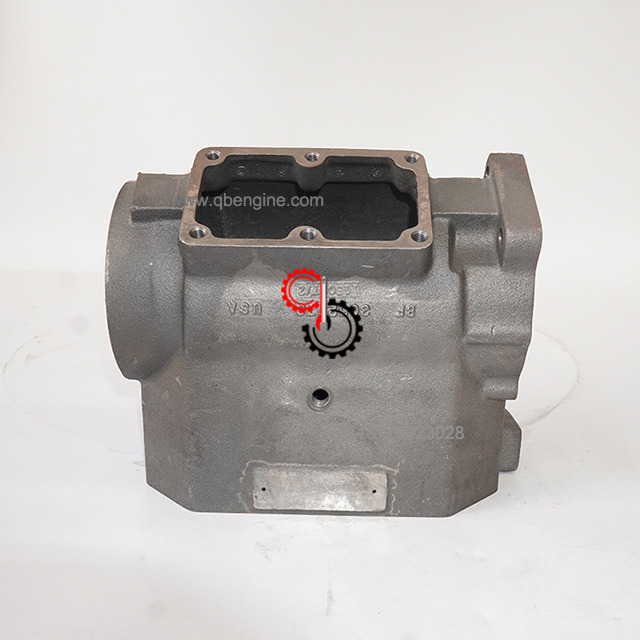

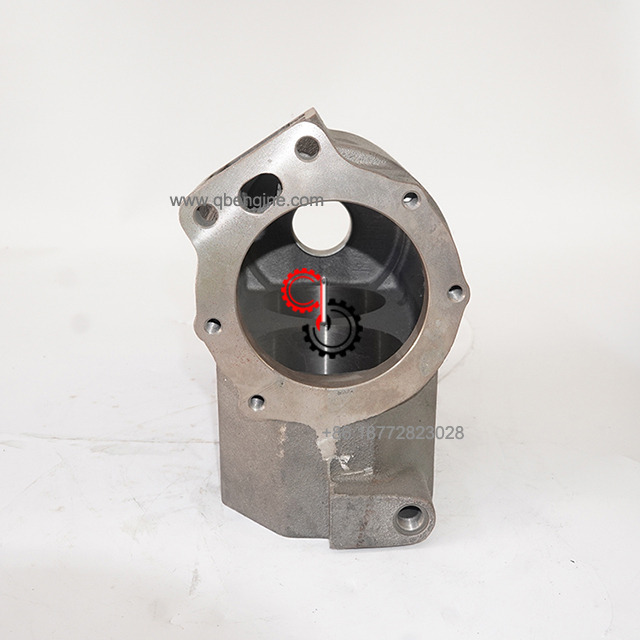

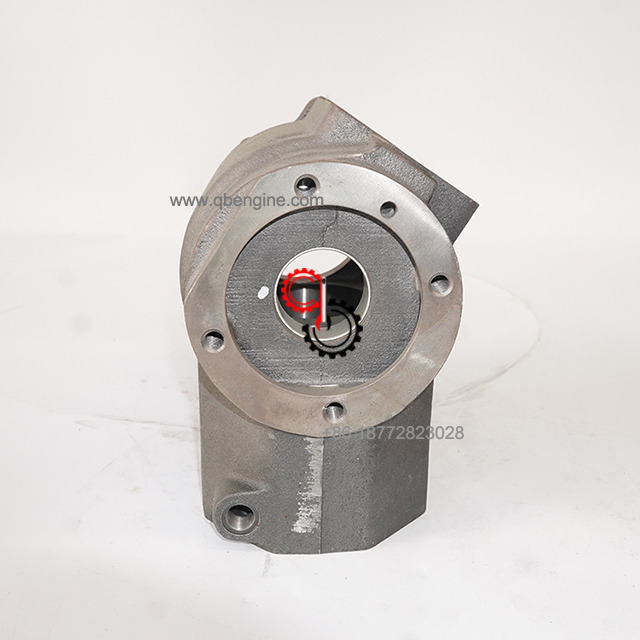

Cummins 2 Cylinder Compressor Crankcase 3052970 3058165

  • original

  • Cummins

  • 3052970 3058165

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins 2 Cylinder Compressor Crankcase 3052970 3058165 In Stock

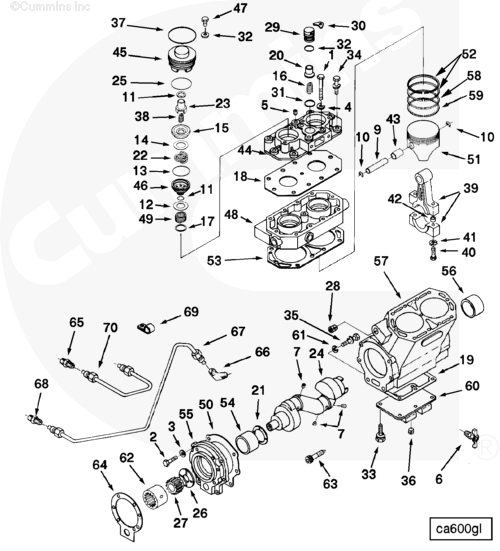

Electronic Parts Catalog - Option Detail
Cummins Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS

3052970

Ref No Part Number Part Description Required Remarks

CP6010-06 Air Compressor
Holset 34 CFM tilted air...(More)

3056615 Air Compressor 1 Recon equivalent 3056615 RX
1 S 130 A Hexagon Head Cap Screw 3 3/8 - 16 X 5 1/4 Inch.
2 S 172 B Hexagon Head Cap Screw 4 3/8 - 16 X 1 1/8 in.
3 S 602 Plain Washer 4 3/8 in.
4 S 604 Lock Washer 3 3/8 in.
5 3559041 Compressor Breather 1
6 S 923 E Draincock 1
7 3038081 Pipe Plug 3 1/16 NPT.
8 109557 Plain Washer 4 1/4 inch
9 119810 Piston Pin 2
10 3558754 Retaining Ring 4
11 127936 Rectangular Ring Seal 3
12 127940 Exhaust Valve 1
13 128086 O-Ring Seal 1
14 144948 Intake Valve 2
15 145028 Compressor Intake Valve Seat 2
16 150631 Compression Spring 1
17 183429 Compressor Wear Plate

18 184235 Air Compressor Gasket 1
19 184237 Accessory Drive Cover Gasket

20 184240 Unloader Valve Cap 1
21 188040 Thrust Bearing 1
22 190334 Valve Spring 2
23 191037 Unloader Valve Cap

24 200370 Compressor Crankshaft 1 Service as AR7542
25 211315 O-Ring Seal 2
26 211662 Thrust Bearing 1
27 3005474 Spline Coupling Hub 1
28 3008468 Pipe Plug 3 1/2 NPT.
29 3009735 Unloading Valve Body 1
30 3009736 Retaining Clamp 1
31 3009738 O-Ring Seal 1
32 3009739 O-Ring Seal 1
33 3010595 Captive Washer Cap Screw 6 3/8 - 16 X 1 in.
34 3010597 Captive Washer Cap Screw 8 3/8 - 16 X 3 3/4 in.
35 3012472 Captive Washer Cap Screw 2 3/8 - 16 X 1 1/2 in.
36 3013786 Pipe Plug 2 3/8 NPT.
37 3015068 O-Ring Seal 2
38 3023101 Compression Spring 2
39 3025825 Compressor Connecting Rod 2
40 S 111 Hexagon Head Cap Screw 2 5/16 - 18 X 1 1/2 in.
41 184125 Lock Plate 2
42 201982 Connection Rod Dowel Ring 2
43 3018153 Bushing 1
44 3028296 Air Compressor Cover 1
45 3028297 Unloading Valve Body 2
46 3043947 Compressor Exhaust Valve Seat 1
47 3046625 Hexagon Head Cap Screw 4 5/16 - 18 x 5/8 inch
48 3052983 Compressor Head 1
49 3054489 Compression Spring 2
50 3055776 Air Compressor Gasket 1
51 3056530 Compressor Piston 2
52 3058150 Compression Piston Ring 2
53 3058154 Air Compressor Gasket 1

3058162 Air Compressor Support 1
54 199510 Bushing 1
55 3053099 Air Compressor Support 1

3058165 Compressor Crankcase 1
56 147610 Bushing 1
57 3052970 Compressor Crankcase 1
58 3558860 Compression Piston Ring 4
59 3558870 Oil Piston Ring 2
60 3175514 Air Compressor Support 1
61 135783 Lock Washer 4 7/16 in.
62 199358 Spline Coupling Sleeve 1
63 206326 Twelve Point Cap Screw 4 7/16- 14 X 1 1/4 Inch.
64 3049688 Air Compressor Gasket 1
65 S  1002 A Male Connector 1
66 S  1005 A Male Adapter Elbow 1
67 3178585 Water Inlet Tube 1
68 204994 Male Connector 1 13/16-18 x 1/2 NPTF
69 68152 Clip 1 #4
70 3178583 Water Outlet Tube 1

3403479 Pressure Relief Valve 1



SHIPMENT CHARACTERISTICS
Length * Width * Height 29cm*26cm*19cm
Weight 14.628KG
