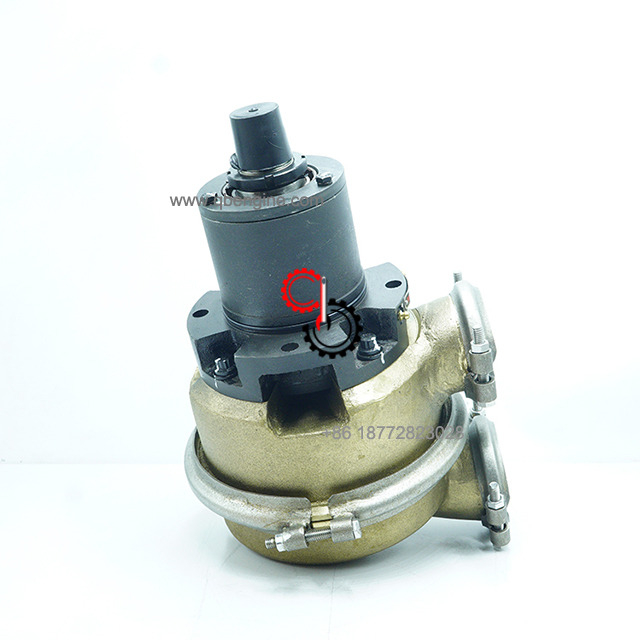

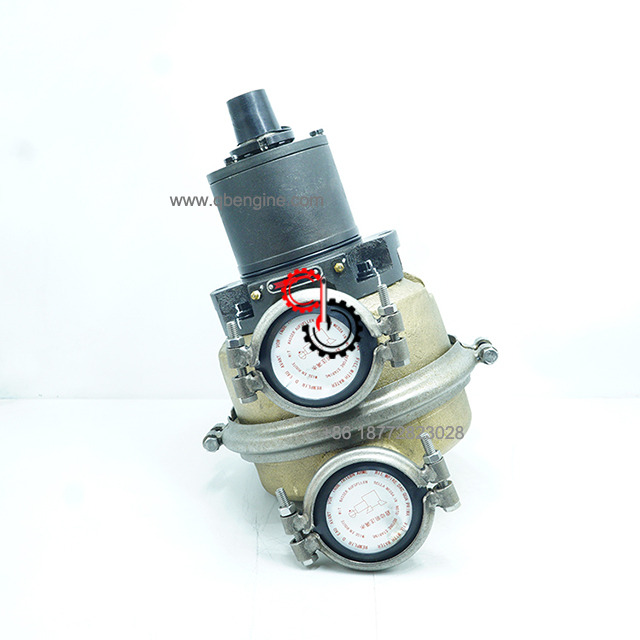

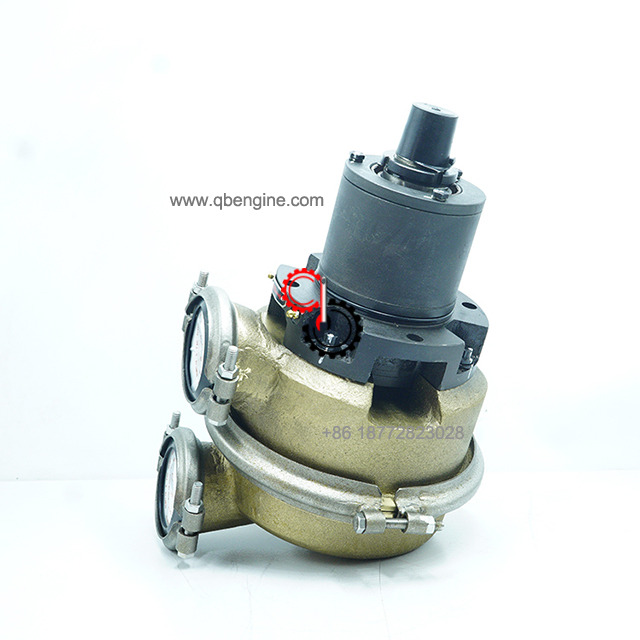

Cummins K19 K38 KTA19 Sea Water Pump 3074540 3049158

  • K19 K38 KTA19

  • Cummins

  • 3074540 3049158

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K19 K38 KTA19 Sea Water Pump 3074540 3049158 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, KTAA19 K131G, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3074540

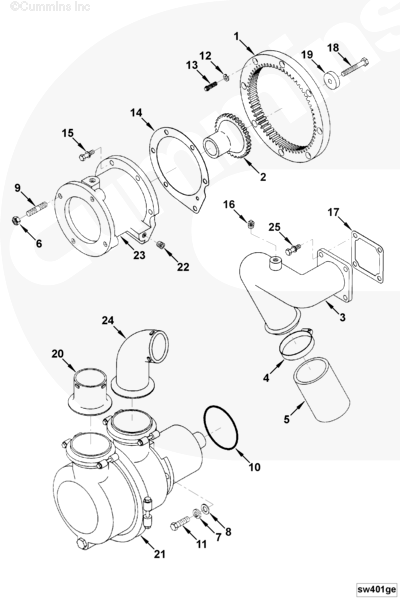

Ref No Part Number Part Description Required Remarks

SW4008 Raw Water Pump
Raw Water Pump
1 3008840 Accessory Drive Gear 1
2 3008841 Sea Water Pump Gear 1
3 3008874 Water Inlet Connection 1
4 43828 F Hose Clamp 4 2 9/16 - 3 1/2 in.
5 3024128 Plain Hose 1
6 S 231 Regular Hexagon Nut 1 7/16 - 20 UNF.
7 S 610 Lock Washer 4 7/16 in.
8 S 622 Plain Washer 4 3/8 in.
9 9740 Stud 1
10 145592 O-Ring Seal 1
11 185804 Hexagon Head Cap Screw 3 7/16 - 14 X 1 3/8 in.
12 S 605 Lock Washer 8 5/16 in.
13 212535 Twelve Point Cap Screw 8 5/16 - 18 X 1 Inch.
14 3008869 Sea Water Pump Gasket 1
15 3010596 Captive Washer Cap Screw 6 3/8 - 16 x 1 1/4 in.
16 S 962 A Pipe Plug 1 1/4 NPT.
17 3055769 Sea Water Pump Gasket 1
18 177020 Hexagon Head Cap Screw 1 3/8 - 16 X 2 1/2 Inch.
19 3010708 Plain Washer 1
20 3050954 Sea Water Connection 1
21 3074540 Sea Water Pump 1 Recon equivalent 3074540 RX
22 3008466 Pipe Plug 2 1/4 NPT.
23 3034483 Sea Water Pump Support 1
24 3200884 Sea Water Connection 1
25 3040838 Captive Washer Cap Screw 4 3/8 - 16 x 1 1/4 in.

SHIPMENT CHARACTERISTICS
Length * Width * Height 42cm*28cm*28cm
Weight 30.391KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
