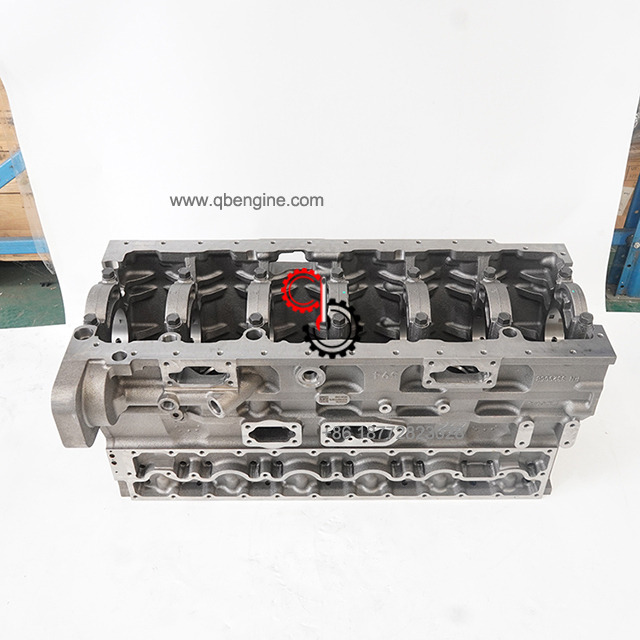

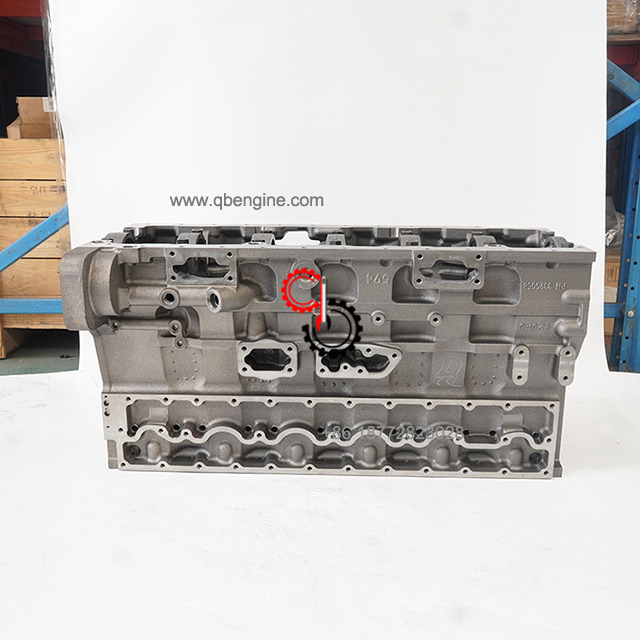

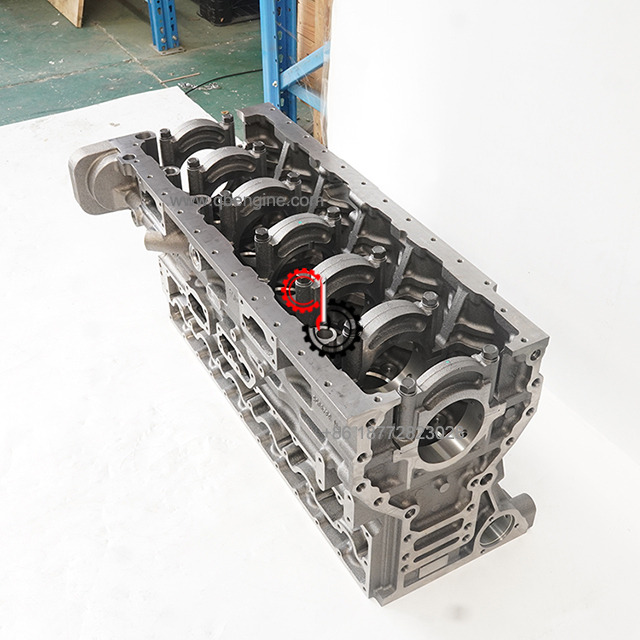

Genuine Diesel Cummins ISM QSM Engine Parts Cylinder Block Kit 5440745
Genuine Diesel Cummins ISM QSM Engine Parts Cylinder Block Kit 5440745 Genuine Diesel Cummins ISM QSM Engine Parts Cylinder Block Kit 5440745
Genuine Diesel Cummins ISM QSM Engine Parts Cylinder Block Kit 5440745 Genuine Diesel Cummins ISM QSM Engine Parts Cylinder Block Kit 5440745
Genuine Diesel Cummins ISM QSM Engine Parts Cylinder Block Kit 5440745 Genuine Diesel Cummins ISM QSM Engine Parts Cylinder Block Kit 5440745

loading

Genuine Diesel Cummins ISM QSM Engine Parts Cylinder Block Kit 5440745

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins ISM QSM Cylinder Block Kit 5440745

  • ISM QSM

  • Cummins

  • 5440745

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISM QSM Cylinder Block Kit 5440745 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  EnginesISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, Z14 CM2670 Z103B


Part  NumberPart DescriptionRequiredRemarks
BB2706Cylinder Block
Cylinder block
70550Pin Dowel1
142207Pin Dowel2



capability: 58.394nm (43



LB.FT)
179063Retainer Plug1
2864390
1



Increased Soot Level



Capability: No geometry
2868820Thrust Bearing4
2868924
1



revised: No BZL can use ID16



4985108 instead of
2868940Gear Retainer1
2882729Engine Crankshaft1



ID15-1 3025354, ID15-1



3893913 and
S 300Plain Woodruff Key1



ID10 4973541.
3073707Engine Crankshaft1
3084445Crankshaft Gear1
3008446Pin Dowel3
3014754Plain Washer13/4 Inch.
3014755Valve Disc1
3014756Compression Spring1
3025354Needle Bearing1
3026167Idler Shaft2
3026231Ring Dowel3
3026233Gear Retainer1
3026758Pressure Regulator Valve Seat1
3038996Idler Gear1
3026189Bushing1
3038995Idler Gear1
3045853Twelve Point Cap Screw3M10 X 1.50 X 70.
3084532Idler Gear1
3026188Bushing1
3084447Idler Gear1
3084533Idler Gear1
3026189Bushing1
3084448Idler Gear1
3088162Hexagon Head Cap Screw3
3417645Cam Follower Lever6
3029920Roll Pin1
3064621Tappet Socket1
3079589Cam Follower Lever1
3161423Cam Follower Roller1
3335343Cam Follower Roller Pin1
3819260
1
3009330Plain Washer7M10.
3044360Regular Hexagon Nut7M10 X 1.50.
3820478
1
2868820Thrust Bearing2
3026166Idler Shaft1
3026233Gear Retainer1
3088161Thrust Bearing Wear Plate1
3088162Hexagon Head Cap Screw3
3820483
1
3818060Captive Washer Cap Screw11M10 X 1.50 X 25.
3820186Captive Washer Cap Screw5M10 X 1.50 X 50.
3883150O-Ring Seal1
4973541Gear Housing1
3820825
1
3201659Rectangular Ring Seal6
3820945Rectangular Ring Seal1
3820946Rectangular Ring Seal1
3882513Mounting Spacer1
3883510Rectangular Ring Seal1
3883727
1
3016770Main Bearing7
3893913Needle Bearing1
3895832Stud7
4004368
1
3016780Main Bearing7
4926017Thrust Bearing2
4070734
1
3064582Cam Follower Shaft Support1
3064583Cam Follower Shaft Support1
3161475Cam Follower Lever12
3417766Cam Follower Shaft2
3895830Cam Follower Shaft Support5
4926018Thrust Bearing2
5440745Block, Cylinder1
3047188Rectangular Ring Seal6
3080760Cylinder Liner6
4060393Cylinder Block1Serviced as mult kits.
148555Pin Dowel2
2878168Bushing7
2892959Cylinder Block1
3007632Expansion Plug5
3019631Plain Washer141/2 Inch.
3328742Hexagon Head Cap Screw14
4999609Main Bearing Cap5
4999610Main Bearing Cap1
4999612Main Bearing Cap1

SHIPMENT CHARACTERISTIC


Length * Width * Height105cm*55cm*69cm
Weight308KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
