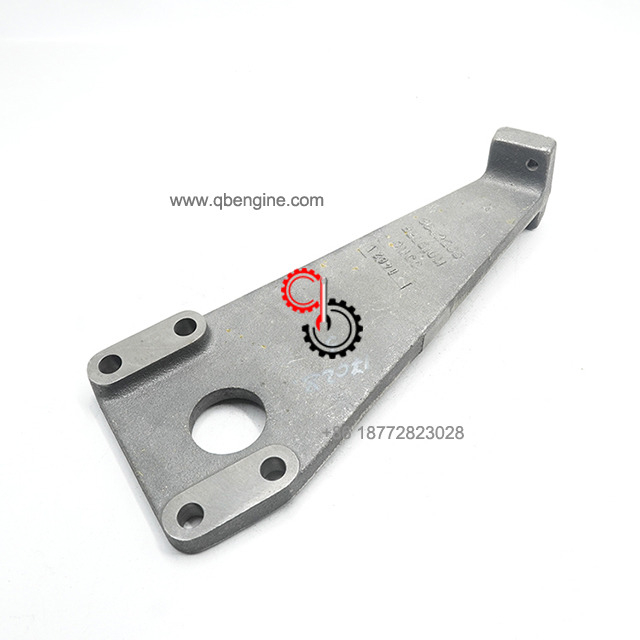

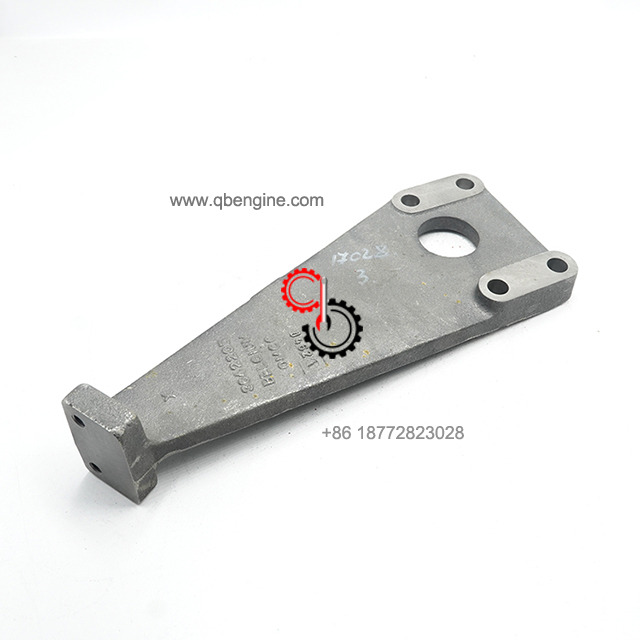

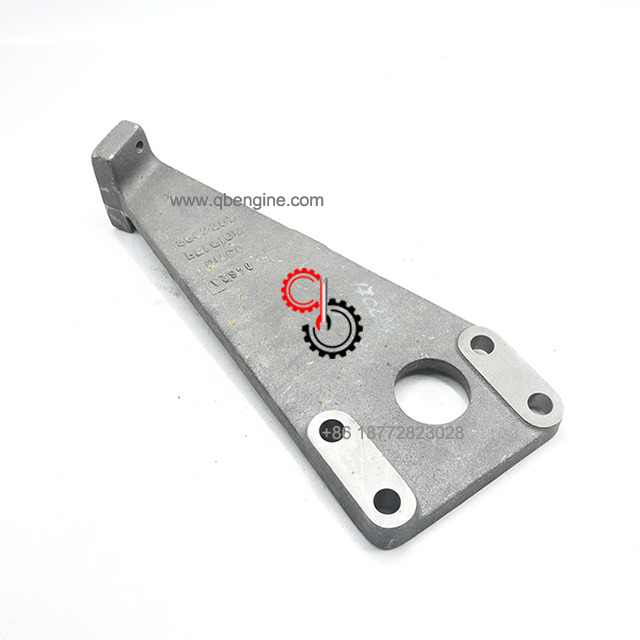

Cummins QSK60 Connection Support 3642205

  • QSK60

  • Cummins

  • 3642205

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Connection Support 3642205 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3642205

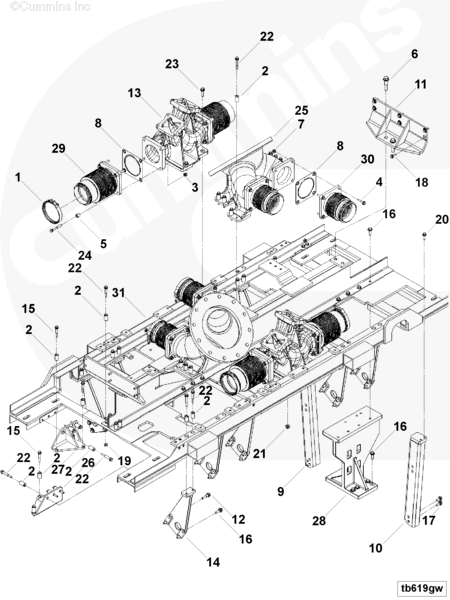

Ref No Part Number Part Description Required Remarks

TB6043-01 Turbocharger Arrangement
Turbocharger Arrangement
1 201989 V Band Clamp 8
2 3027728 Mounting Spacer 50
3 3089191 Hexagon Flange Nut 16
4 3089232 Hexagon Flange Head Cap Screw 16 M10 X 1.50 X 45.
5 3089321 Mounting Spacer 16
6 3089328 Hexagon Flange Head Cap Screw 4
7 3093828 Hexagon Flange Nut 16 M10 X 1.50.
8 3171306 Exhaust Outlet Connection Gasket 8
9 3410448 Connection Bracket 1
10 3410449 Connection Bracket 1
11 3410454 Connection Bracket 2
12 3410730 Hexagon Flange Head Cap Screw 20
13 3637390 Exhaust Transfer Connection 2
14 3642205 Connection Support 10
15 3900635 Hexagon Flange Head Cap Screw 6 M10 X 1.50 X 60.
16 3900637 Hexagon Flange Head Cap Screw 48 M12 X 1.75 X 35.
17 3901249 Hexagon Flange Head Cap Screw 4 M12 X 1.75 X 25.
18 3902460 Hexagon Flange Head Cap Screw 12 M10 X 1.50 X 25.
19 3902662 Hexagon Flange Nut 4 M10 X 1.50.
20 3903112 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 30.
21 3903210 Hexagon Flange Nut 8 M12 X 1.75.
22 3904446 Hexagon Flange Head Cap Screw 44 M10 X 1.50 X 70.
23 3920447 Hexagon Flange Head Cap Screw 8 M12 X 1.75 X 40.
24 4000837 Hexagon Flange Head Cap Screw 16
25 4065243 Exhaust Outlet Connection 2
26 4066826 Connection Bracket 1
27 4066828 Connection Bracket 1
28 4080207 Connection Support 1
29 4100758 Bellows 4
30 4100817 Bellows 4
31 3642933 Turbocharger Mounting Frame 1

SHIPMENT CHARACTERISTIC

Length * Width * Height

 22cm*13cm*36cm
Weight 4.915KG
