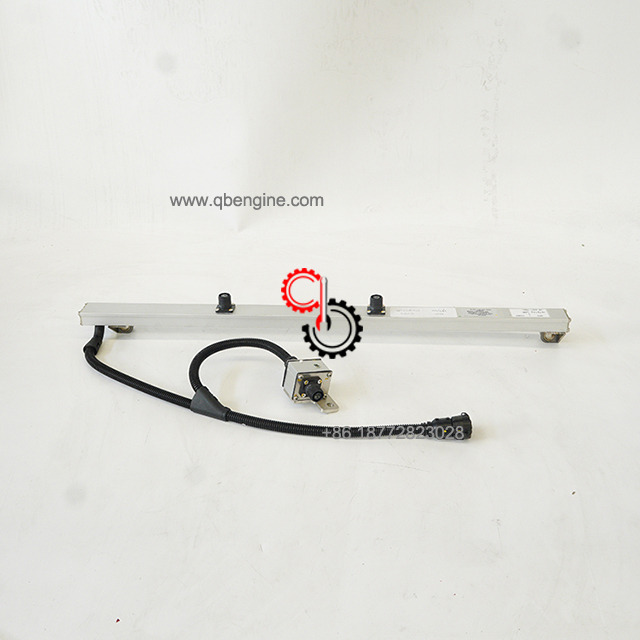

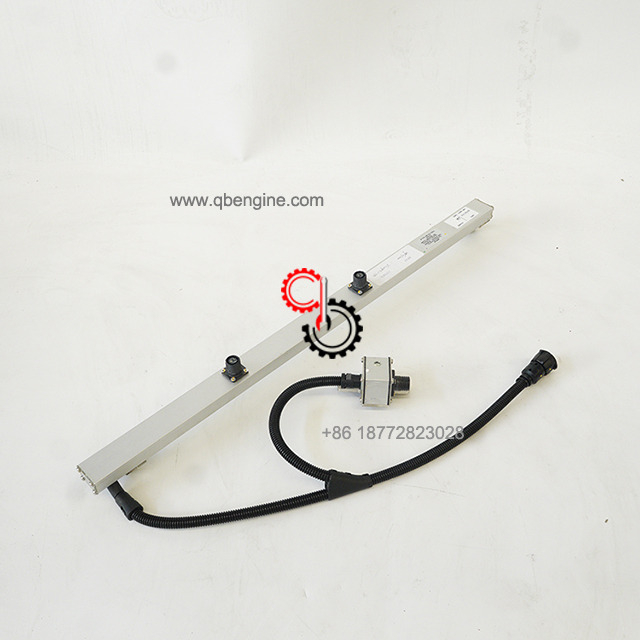

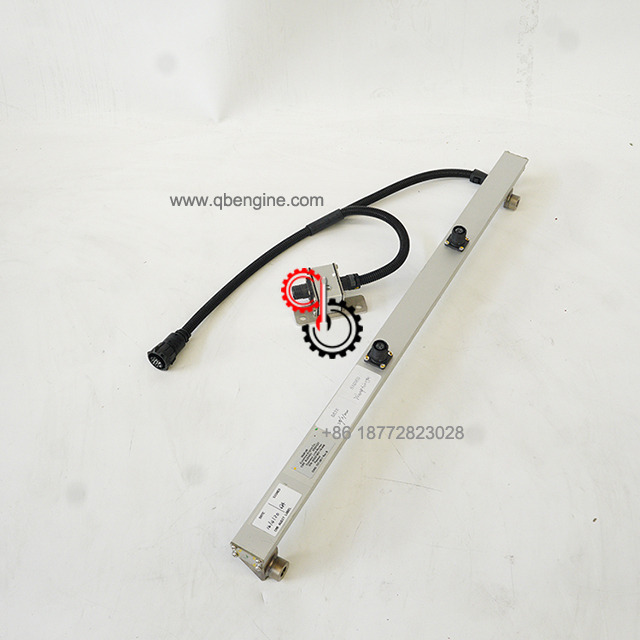

Cummins QSK45 Electronic Control Module Wiring Harness 3648148

  • QSK45

  • Cummins

  • 3648148

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK45 Electronic Control Module Wiring Harness 3648148 In Stock

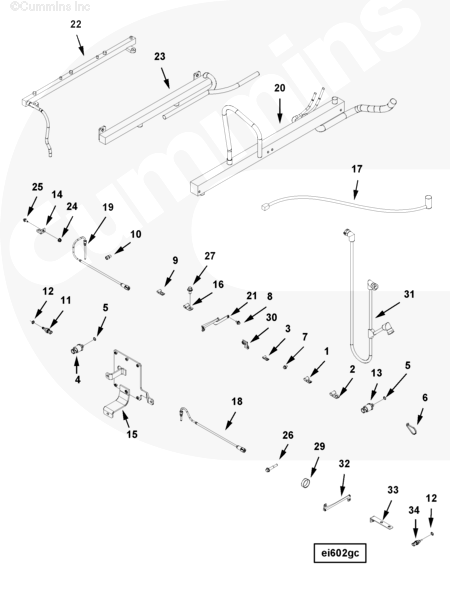

Electronic  Parts Catalog - Option Detail
Cummins  Engines QSK45 CM500, QSK45G

3648148

Ref No Part Number Part Description Required Remarks

EI6853-02 Engine Monitoring Wiring Harness
ENG MNG Wiring Harness...(More)
1 68152 Clip 4 #4
2 68152 B Clip 5
3 180371 Clip 14
4 2872254 Pressure Sensor 1 Intake Air or Coolant
5 4010519 O-Ring Seal 1
6 3062329 Wire Tie Clamp 2
7 3093956 Hexagon Flange Head Cap Screw 20 M8 X 1.25 X 12.
8 3279244 Hexagon Flange Head Cap Screw 4 M12 X 1.75 X 16.
9 3281178 Clip 4
10 3331658 Female Connector 1

3408345 Temperature Sensor 3 Coolant or Intake Manifold
11 3408346 Temperature Sensor 1
12 4010519 O-Ring Seal 1

3408558 Pressure Sensor 2
13 3408559 Pressure Sensor 1 Oil.
14 3628553 Tube Brace 1
15 3638772 Electronic Control Module Bracket 1
16 3639265 Clip 1
17 3639665 Wiring Harness 1
18 3645834 Temperature Sensor 11
19 3645835 Temperature Sensor 1
20 3646915 Wiring Harness 1
21 3647448 Wiring Brace 9
22 3648147 Electronic Control Module Wiring  Harness 2
23 3648148 Electronic Control Module Wiring  Harness 2
24 3900589 Hexagon Flange Nut 1 M8 X 1.25
25 3900629 Hexagon Flange Head Cap Screw 10 M8 X 1.25 X 16
26 3900635 Hexagon Flange Head Cap Screw 8 M10 X 1.50 X 60.
27 3913372 Hexagon Flange Head Cap Screw 1 M12 X 1.75 X 20.

4016268 Temperature Sensor 1

3408345 Temperature Sensor 1 Coolant or Intake Manifold
29 4017050 Protective Cover 1
30 4066560 Wiring Retainer Bracket 1
31 4066653 Electronic Control Module Wiring  Harness 1
32 4066663 Wiring Brace 1
33 4066935 Wiring Brace 1
34 4954905 Temperature Sensor 1 Coolant Or Fuel Or Oil.


SHIPMENT CHARACTERISTICS
Length * Width * Height 34cm*6.75cm*4.25cm
Weight 3.45KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
