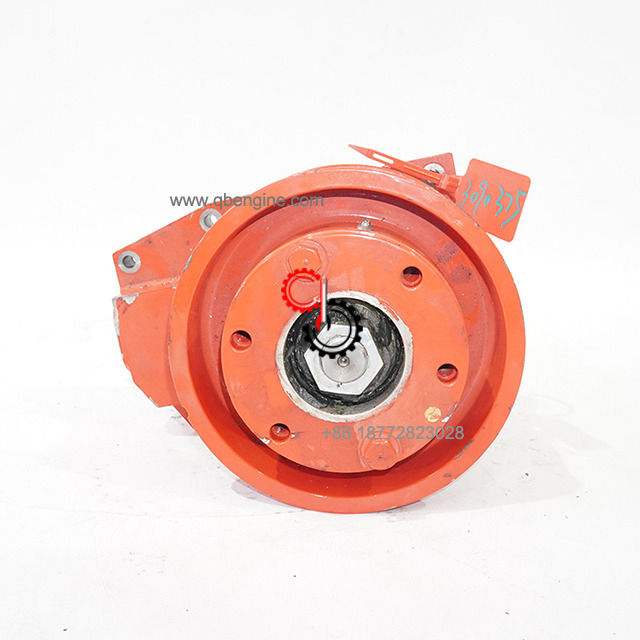

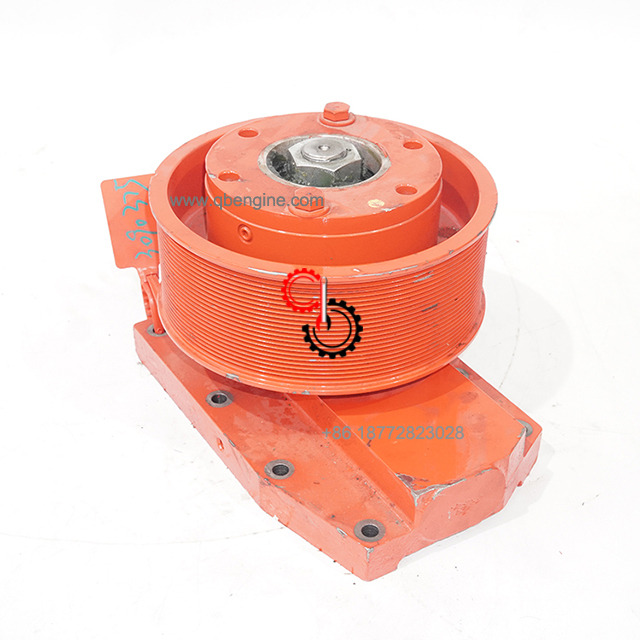

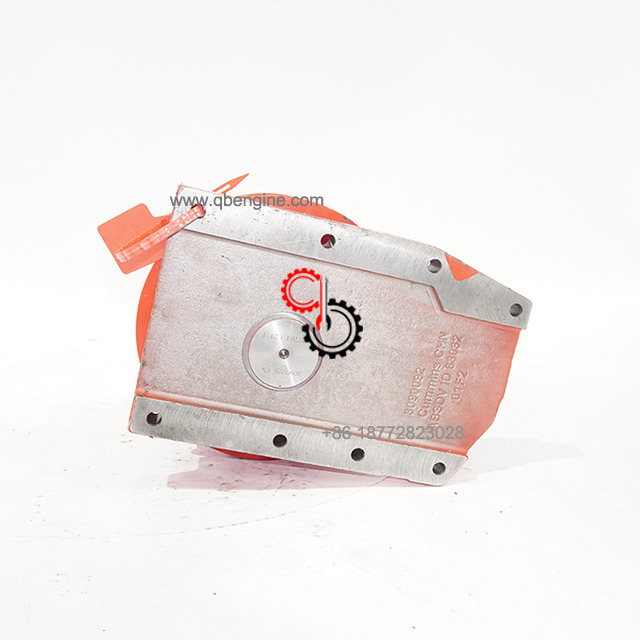

Genuine Cummins QSK19 Engine Fan Belt Pulley 3090375 3090090

Name: Genuine Cummins QSK19 Engine Fan Belt Pulley 3090375 3090090
Brand: Cummins
Rating: 5.0 (85 reviews)

Cummins QSK19 Fan Belt Pulley 3090375 3090090

Model:
QSK19
Brand:
Cummins
Code:
3090375 3090090
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins QSK19 Fan Belt Pulley 3090375 3090090 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3090373

Ref No	Part Number	Part Description	Required	Remarks
	FA4112-11	Fan Drive		Fan Drive
1	S 113	Hexagon Head Cap Screw	1	1/2 - 13 X 1 1/2 in.
2	S 178 C	Hexagon Head Cap Screw	3
3	S 205	Regular Hexagon Nut	8	3/8 - 24 UNF.
4	68050	Plain Washer	1	1/2 in.
5	127362	Plain Washer	4	3/8 in.
6	3010596	Captive Washer Cap Screw	2	3/8 - 16 X 1 1/4 in.
7	3010597	Captive Washer Cap Screw	2	3/8 - 16 X 3 3/4 in.
8	3036900	Plain Washer	1	1/2 in.
9	3041859	Alternator Support	1
10	3042329	Plain Washer	8	3/8 in.
11	3042330	Plain Washer	3	3/8 in.
	3090375	Fan Hub	1
8	3036900	Plain Washer	8	1/2 in.
12	S 911 B	Pipe Plug	2	1/8 NPT.
13	S 2268	Grease Fitting	1
14	3085857	Wear Sleeve	1
15	3085867	Oil Seal	1
16	3085868	Roller Bearing	1
17	3085869	Lock Nut	1
18	3086279	Dust Seal	1
19	3090090	Fan Pulley	1
20	3090227	Plain Washer	1
21	3090307	Fan Spindle	1
22	3090475	Pilot Adapter	1
23	3090493	Fan Hub	1
24	3096345	Protective Cover	1
25	3201117	Double End Plain Stud	5
	2888887	Belt Tensioner	1
26	S 253	Regular Hexagon Jam Nut	2	1/2 - 20 UNF.
27	S 500	Cotter Pin	1
28	146517	Regular Hexagon Nut	1	1/2 - 20 UNF.
29	177269	Control Rod End	1
30	4295620	Wire Tie Clamp	2
31	3086244	Belt Tensioner Housing	1
32	4967782	Preload Adjusting Screw	1
33	3086251	Spring Retainer	1
34	3086252	Clevis Pin	1
35	3086269	Compression Spring	1
36	3090194	Dust Seal	1
37	3086253	Control Rod End	1
38	3402156	Spring Guide	1
39	2888795	Control Rod Retainer	1
40	4334091	Double End Plain Stud	3
	4910479		1
	3086185	Idler Lever	1
41	135530	Retaining Ring	1
42	3086278	Plain Washer	1
43	3329559	Idler Lever	1
	3329561	Pivot Shaft Support	1
44	3329556	Bushing	2
45	3329560	Pivot Shaft Support	1
46	3410136	Dust Seal	1
	3090059	Idler Pulley	1
47	S 249	Regular Hexagon Jam Nut	1	3/4 - 16 UNF.
48	S 626	Plain Washer	2	5/16 in.
49	S 640	Plain Washer	1	3/4 in.
50	207603	Idler Pulley Cover	1
51	3003354	Roller Bearing	1
52	3004057	Lock Nut	1	3/4 - 16 UNF.
53	3014449	Flange Gasket	1
	3016766	Idler Pulley	1
54	3009483	Idler Pulley	1
55	3065830	Oil Seal	1
56	3086188	Idler Shaft	1
57	3021470	Captive Washer Cap Screw	2	5/16 - 18 X 3/4 in.
58	3347727	V Ribbed Belt	1

SHIPMENT CHARACTERISTICS
Length * Width * Height	36cm36cm11cm
Weight	11.6KG
