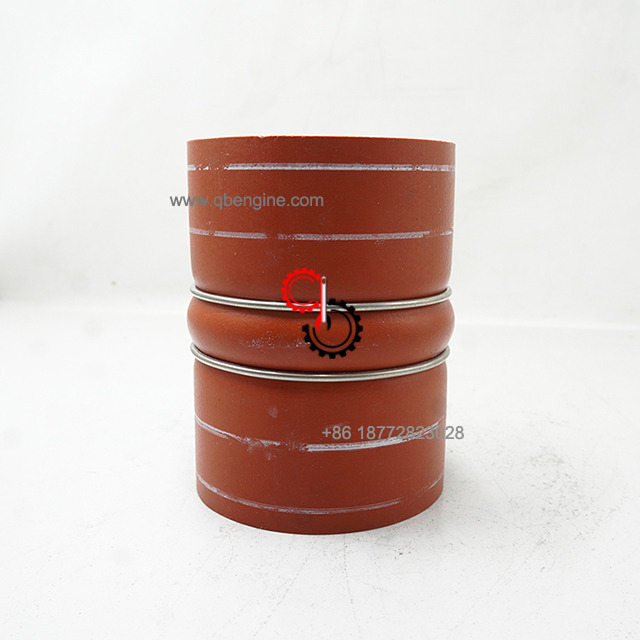

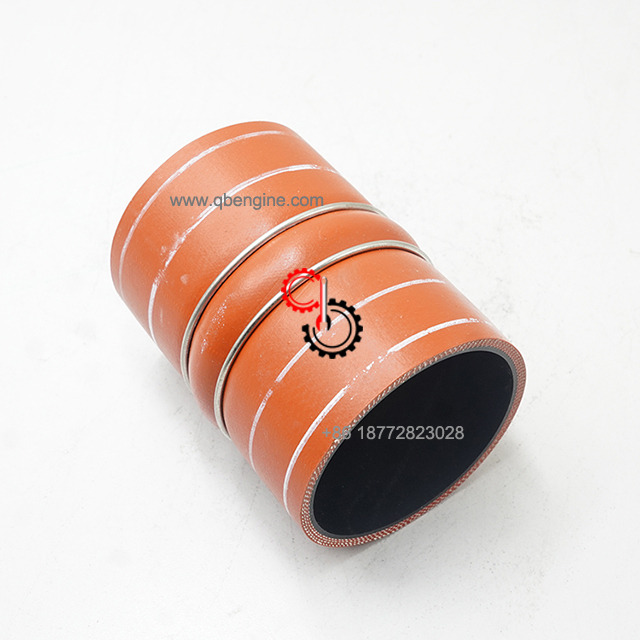

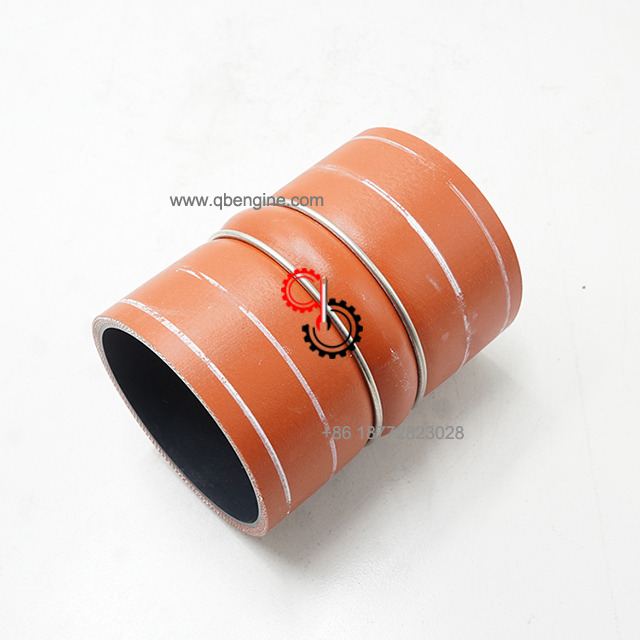

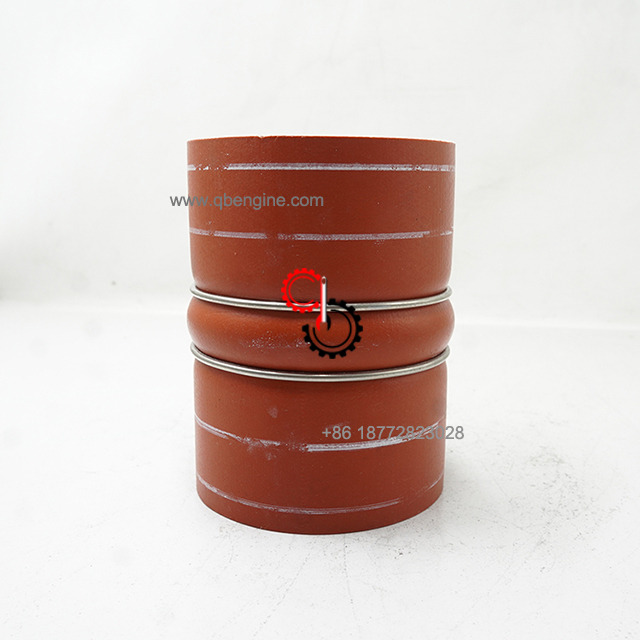

Cummins QSK Hump Hose 3641726

  • QSK

  • Cummins

  • 3641726

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK Hump Hose 3641726 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3641726

Ref No Part Number Part Description Required Remarks

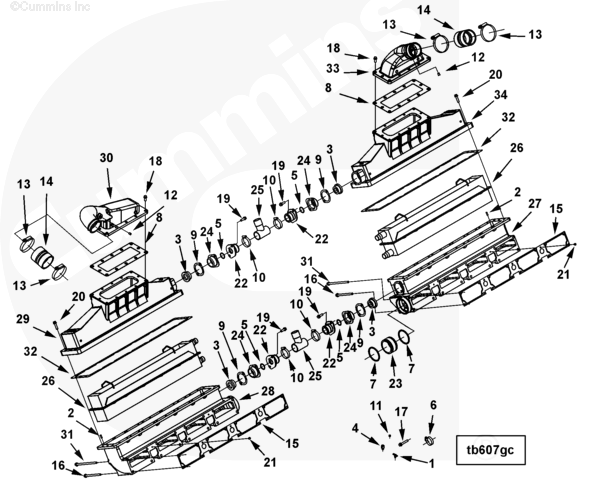

TB6824-01 Aftercooler
Aftercooler
1 3638582 Draincock 1
2 131584 Roll Pin 16
3 206808 Grommet Seal 8
4 3638769 Coupling Nipple 2
5 3035026 O-Ring Seal 8
6 3645975 Hose Clamp 4
7 3082358 O-Ring Seal 4
8 3171170 Connection Gasket 4
9 3171287 Connection Gasket 8
10 3645972 Hose Clamp 8
11 3628604 Pipe Plug 5 1/8-27 X 0.3 (in).
12 3628605 Pipe Plug 2
13 4008037 T-Bolt Clamp 8
14 3641726 Hump Hose 4
15 3637776 Intake Manifold Gasket 4
16 3681390 Hexagon Flange Head Cap Screw 32
17 3102651 Hexagon Flange Head Cap Screw 8
18 3093932 Hexagon Flange Head Cap Screw 48 M10 X 1.50 X 25.
19 3903112 Hexagon Flange Head Cap Screw 64 M10 X 1.50 X 30.
20 3925437 Hexagon Flange Head Cap Screw 138 M10 X 1.50 X 40.
21 3643875 Round Head Cap Screw 8
22 4017163 Connection Flange 8
23 4017508 Air Balance Tube 2
24 4066129 Seal Retainer 8
25 3651300 Water Transfer Connection 4
26 3641078 Aftercooler Core 4
27 4999046 Air Intake Manifold 2
28 4999049 Air Intake Manifold 2
29 4999052 Aftercooler Cover 2
30 4924753 Air Crossover Connection 2
31 4924790 Hexagon Flange Head Cap Screw 32
32 4080573 Aftercooler Cover Gasket 4
33 4924755 Air Crossover Connection 2
34 4999239 Aftercooler Cover 2


SHIPMENT CHARACTERISTICS
Length * Width * Height 13.5cm*10cm*10cm
Weight 0.249KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
