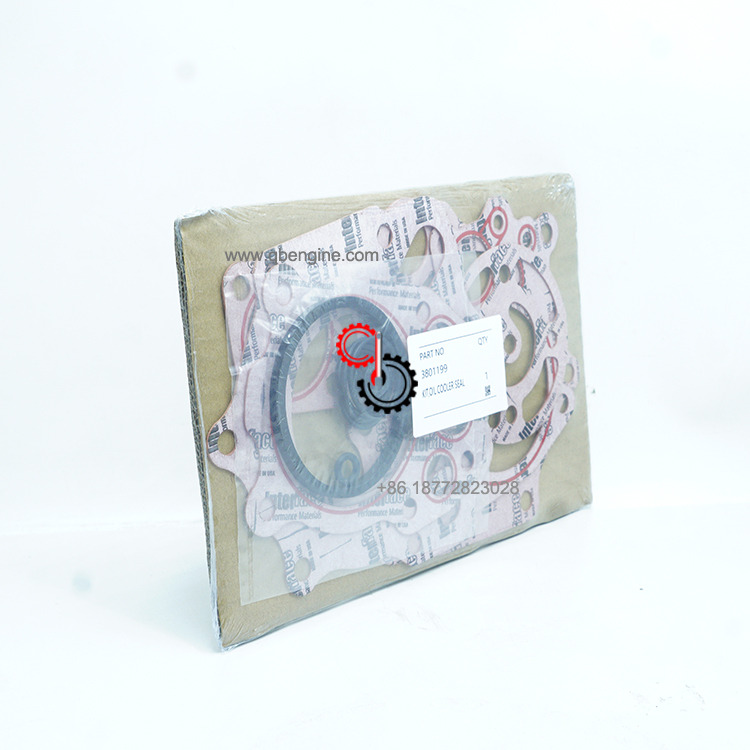

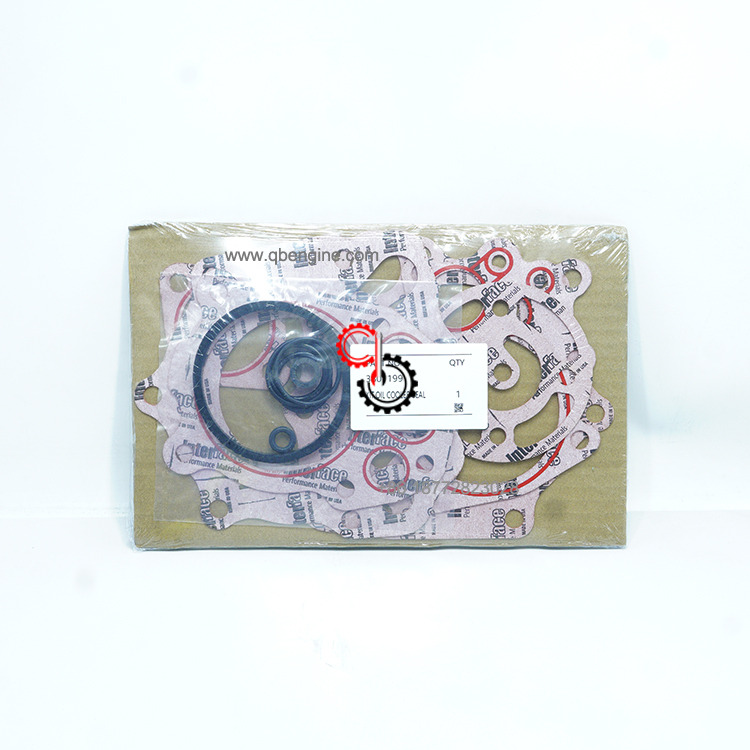

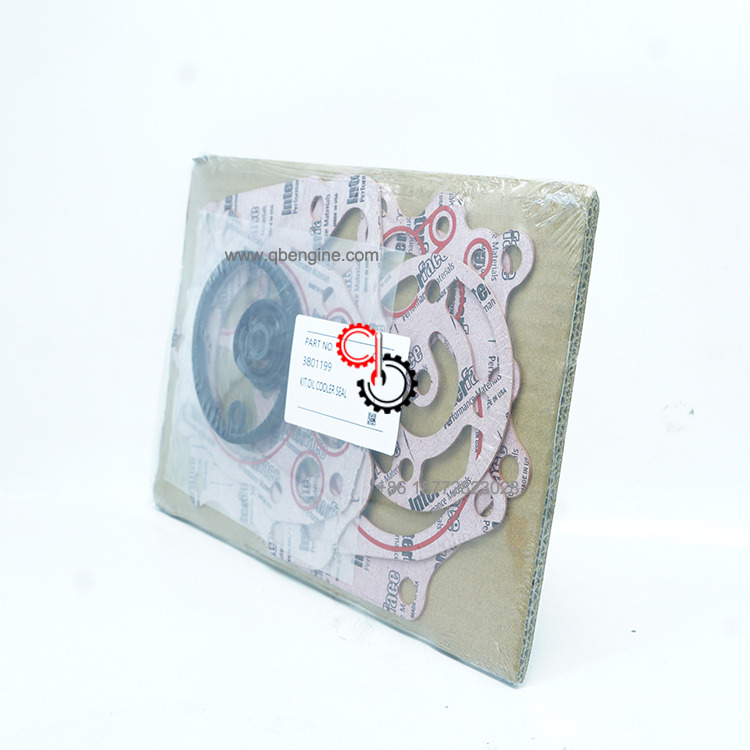

Cummins NT855 Oil Cooler Seal Kit 3801199

  • NT855

  • Cummins

  • 3801199

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins NT855 Oil Cooler Seal Kit 3801199 In Stock

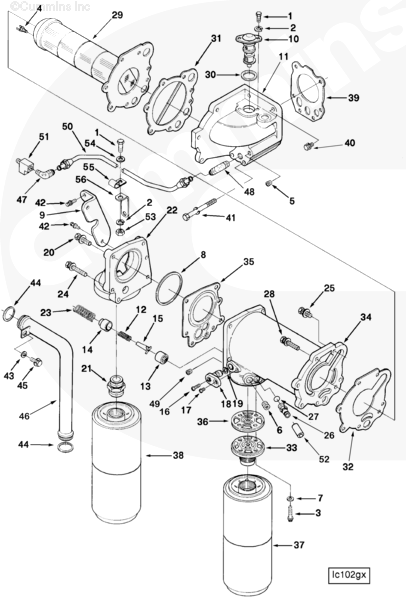

Electronic Parts Catalog - Option Detail
Cummins Engines NH/NT 855, NT495, NT743, NTA855 N106


3801199


Ref No Part Number Part Description Required Remarks

LF1089-03 Lubricating Oil Cooler


3053392 Engine Oil Cooler 1
1 S 117 Hexagon Head Cap Screw 3 3/8 - 16 x 3/4 in.
2 S 604 Lock Washer 3 3/8 in.
3 115482 Twelve Point Cap Screw 4 5/16 - 18 x 1 1/4 inch
4 214345 Draincock 1
5 3008466 Pipe Plug 1 1/4 NPT.
6 3013786 Pipe Plug 1 3/8 NPT.
7 3017915 Plain Washer 4 1/4 inch
8 3018695 Rectangular Ring Seal 1
9 3018697 Oil Cooler Brace 1
10 3023512 Bypass Valve 1
11 3027460 Oil Cooler Support 1
12 3030803 Compression Spring 1
13 3030804 Bypass Valve Piston 1
14 3030805 Pressure Sensing Piston 1
15 3030806 Bypass Valve Plunger 1
16 3031005 Pan Head Cap Screw 1 1/4 - 20 x 3/4 inch

3035028 Sensing Unit Assembly 1
17 101996 Pan Head Cap Screw 1 #8 - 32 x 3/8 inch
18 3030807 Sending Unit 1
19 3030808 O-Ring Seal 1
20 3035624 Captive Washer Cap Screw 3 3/8 - 16 X 1 1/2 in.

3037242 Head , Lubrication Oil Filter 1
21 3037219 Filter Head Insert 1
22 3037241 Lubricating Oil Filter Head 1
23 3039296 Compression Spring 1
24 3040837 Captive Washer Cap Screw 2 3/8 - 16 X 2 1/4 Inch.
25 3040838 Captive Washer Cap Screw 1 3/8 - 16 x 1 1/4 in.
26 3042619 Coupling Nipple 1
27 3037537 O-Ring Seal 1
28 3044413 Captive Washer Cap Screw 6 3/8 - 16 x 2 in.
29 3412285 Cooler Core 1
30 3045979 O-Ring Seal 1
31 3047464 Oil Cooler Core Gasket 1
32 3047465 Lubricating Oil Cooler Housing  Gasket 1
33 3052129 Lubricating Oil Filter Head 1
34 3052210 Oil Cooler Housing 1
35 3069014 Lubricating Oil Cooler Cover  Gasket 1
36 3071736 Filter Head Gasket 1
37 3889310 Lubricating Oil Filter Element 1
38 3889311 Oil Bypass Filter Element 1
39 3008017 Oil Cooler Support Gasket 1
40 3010596 Captive Washer Cap Screw 3 3/8 - 16 x 1 1/4 in.
41 3010597 Captive Washer Cap Screw 3 3/8 - 16 X 3 3/4 in.
42 3044901 Captive Washer Cap Screw 2 1/4 - 20 x 7/8 inch
43 S  626 Plain Washer 1 5/16 in.
44 212161 O-Ring Seal 2
45 3022589 Captive Washer Cap Screw 1 5/16 - 18 X 5/8 in.
46 3024666 Water Transfer Tube 1
47 S  1040 A Male Adapter Elbow 1
48 68645 Male Adapter Elbow 1
49 3008466 Pipe Plug 1 1/4 NPT.
50 3037052 Lubricating Oil Bypass Tube 1
51 3818101 Female Street Pipe Tee 1
52 3044896 Protective Cover 1
53 S  223 Heavy Hexagon Nut 1 3/8 - 16 UNC
54 S  602 Plain Washer 1 3/8 in.
55 108722 Clip 1
56 109895 Oil Tube Bracket 1

3801199 Kit , Oil Cooler Maint 1

3034579 Grommet Seal 1

3052127 Filter Head Gasket 1

3054445 Oil Cooler Core Gasket 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 26cm*19cm*0.2cm
Weight 0.23KG
