Cummins / Cummins Parts / Rocker Lever Assembly, STC Tappet, Cam Follower / Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306

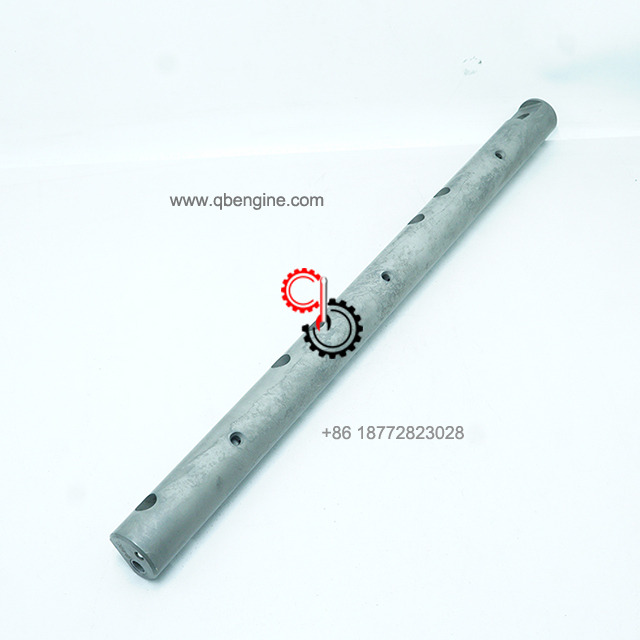

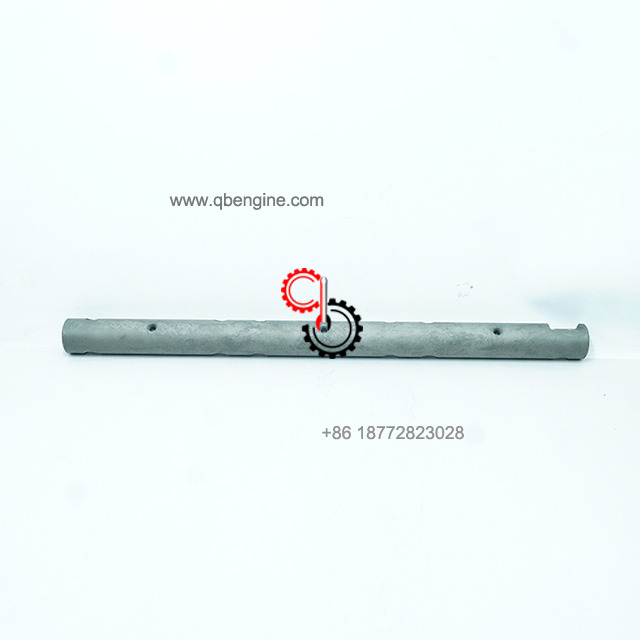

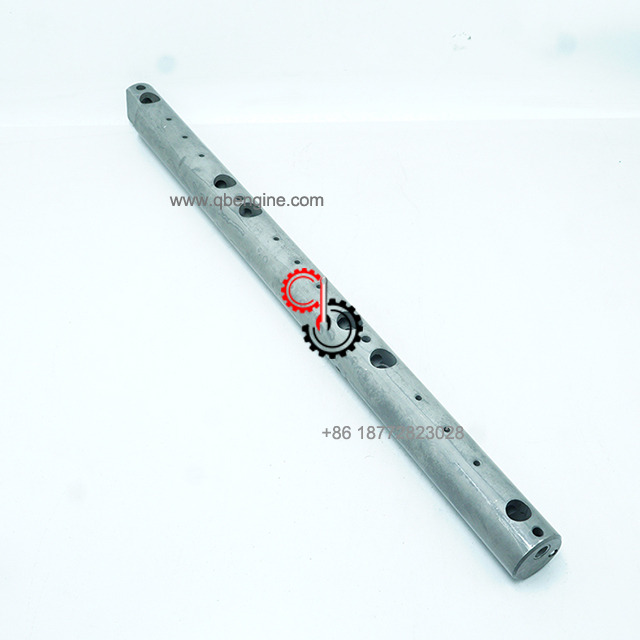

Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306
Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306 Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306
Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306 Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306
Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306 Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306

loading

Genuine Cummins ISX QSX X15 Engine Parts Rocker Lever Shaft 2882571 4059306

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins ISX QSX X15 Rocker Lever Shaft 2882571 4059306

  • ISX QSX X15

  • Cummins

  • 2882571 4059306

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX QSX X15 Rocker Lever Shaft 2882571 4059306 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

2882570

Ref No Part Number Part Description Required Remarks

RL1754-07

Rocker Lever
1 3686307 Engine Brake Valve 2
2 3413137 Brake Actuator Plunger 6
3 4059329 Valve Crosshead 6
4 4059342 Valve Crosshead 6
5 3412351 Mounting Spacer 2
6 3679427 Retaining Clamp 6
7 3681221 Hexagon Flange Head Cap Screw 12

3683309 Rocker Lever 1 Front Shaft Assembly

2882570 Rocker Lever Shaft 1
8 2878242 Rocker Lever Shaft 1
9 3105973 Drive Plug 2
10 3105974 Ball Plug 2

4393087 Lever, Engine Brake 3
11 2882738 Engine Brake Slave Piston 1
12 2892986 Compression Spring 1
13 2863691 Pipe Plug 1
14 3413133 Bushing 1
15 3679504 Spiral Pin 1
16 3679914 Cam Follower Roller 1
17 3680173 Cam Follower Roller Pin 1
18 3413129 Check Valve 1
19 3413131 Actuator Cover 1
20 3413132 Retaining Ring 1
21 3679921 Regular Hexagon Jam Nut 1

4386045 Rocker Lever 3 Reference TSB120053.
22 4386550 Cam Follower Roller Pin 1
23 4319026 Cam Follower Roller 1

4386041 Rocker Lever 1
24 3067941 Ball Plug 1
25 3679694 Regular Hexagon Jam Nut 1
26 4059282 Bushing 1
27 4059377 Rocker Lever Adjusting Screw 1
28 4386586 Lever, Rocker 1

4386047 Rocker Lever 3 Reference TSB120053.

4386043 Rocker Lever 1
29 4386588 Lever, Rocker 1

4059415 Rocker Lever 1 Rear Shaft Assembly

2882571 Rocker Lever Shaft 1
30 2878243 Rocker Lever Shaft 1

4393087 Lever, Engine Brake 3
33 3413127 Engine Brake Lever 1

4386046 Rocker Lever 3 Reference TSB120053.
31 4386587 Lever, Rocker 1

4386048 Rocker Lever 3 Reference TSB120053.
32 4386589 Lever, Rocker 1

3685827 Engine Brake Valve Body 1 Component Of 3686307 Assembly

3686406 Engine Brake Solenoid 1 Component Of 3686307 Assembly

3686788 Electrical Insulator 1 Component Of 3686307 Assembly

3902093 Socket Head Cap Screw 1 Component Of 3686307 Assembly

4298247 O-Ring Seal 1 Component Of 3686307 Assembly

4298248 O-Ring Seal 1 Component Of 3686307 Assembly

4298249 Screen 1 Component Of 3686307 Assembly


SHIPMENT CHARACTERISTICS
Length * Width * Height 59cm*8cm*8cm
Weight 3.148KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
