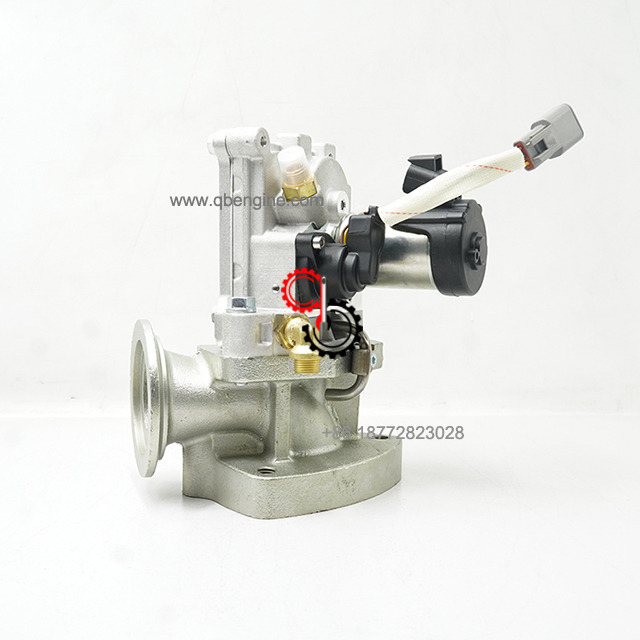

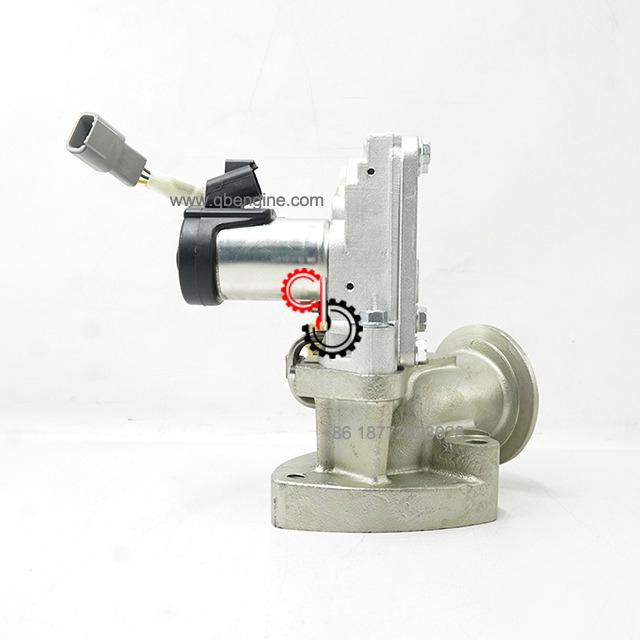

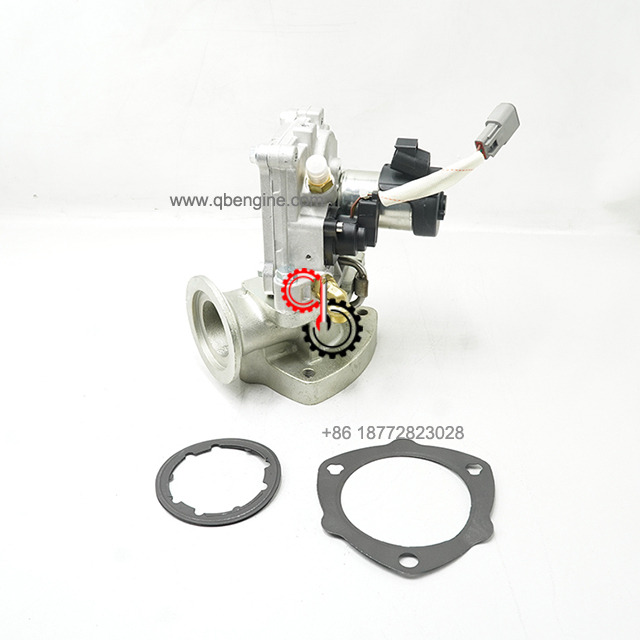

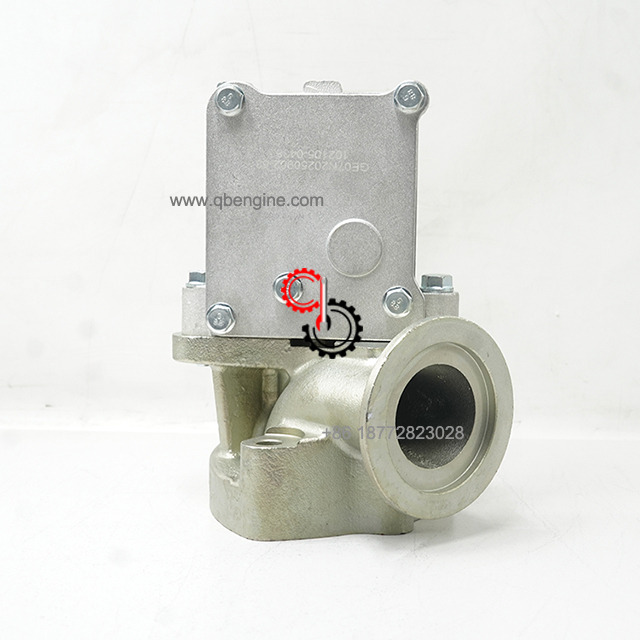

Cummins ISM Egr Valve Kit 4955421 3104875

  • ISM

  • Cummins

  • 4955421 3104875

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISM Egr Valve Kit 4955421 3104875 In Stock

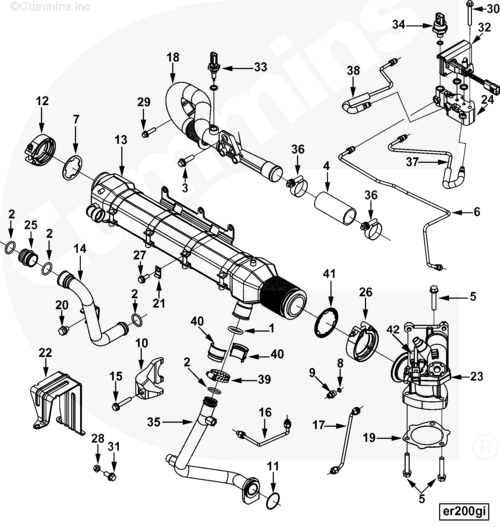

Electronic   Parts Catalog - Option Detail
Cummins   Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

4955421

Ref No Part Number Part Description Required Remarks

ER2709-05 Exhaust Recirculation
Exhaust Recirculation...(More)
1 3033915 O-Ring Seal 1
2 3049221 O-Ring Seal 2
3 3089016 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 35.
4 3101632 Plain Hose 2
5 3102043 Hexagon Flange Head Cap Screw 3
6 3102386 Pressure Sensing Tube 1
7 3102392 Exhaust Gas Recirculation Valve  Gasket 1

3102561 Male Union 2
8 3036666 O-Ring Seal 1
9 3102562 Male Union 1
10 3102643 Retaining Clamp 1
11 3102645 O-Ring Seal 1
12 3102650 V Band Clamp 1
13 3102803 Exhaust Gas Recirculation Cooler 1 4089380 Kit
14 3102846 Water Outlet Tube 1
15 3102873 Captive Washer Cap Screw 1
16 3102895 Water Inlet Tube 1
17 3102939 Water Outlet Tube 1
18 3102967 Air Transfer Connection 1
19 3103077 Exhaust Gas Recirculation Valve  Gasket 1
20 3103099 Captive Washer Cap Screw 1 M10 x 1.50 x 16
21 3103122 Clip 1
22 3103593 Heat Shield 1
23 3104875 Exhaust Gas Recirculation Valve 1 Serviced As 4955421.

3684014 Socket Head Cap Screw 2
24 3103825 Sensor Adapter 1

3683068 Plain Pipe Coupling 1
25 3683067 Plain Pipe Coupling 1
26 3683144 V Band Clamp 1
27 3821783 Captive Washer Cap Screw 5 M8 x 1.25 x 20
28 3900589 Hexagon Flange Nut 1 M8 X 1.25
29 3900630 Hexagon Flange Head Cap Screw 1 M8 X 1.25 X 20
30 3901446 Hexagon Flange Head Cap Screw 3 M8 X 1.25 X 60.
31 3903990 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 20.
32 4921728 Pressure Sensor 1 Egr differential.
33 4088712 Temperature Sensor 1 Exhaust Gas
34 4928594 Pressure Sensor 1 Exhaust gas.
35 4920488 Water Transfer Tube 1
36 4920565 Spring Hose Clamp 2
37 4926190 Pressure Sensing Tube 1
38 4926194 Pressure Sensing Tube 1
39 3895734 Hose Clamp 3
40 4907445 Tube Retainer 2
41 3104230 Exhaust Gas Recirculation Valve  Gasket 1 EGR Cooler Outlet
42 3103823 Position Sensor 1 EGR Valve

4965517 Air Transfer Connection 1

4965691
1

3089016 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 35.

3102392 Exhaust Gas Recirculation Valve  Gasket 1

3102650 V Band Clamp 1

4955421 Engineering Valve Kit
Recon Equivalent 4955421 NX

3103823 Position Sensor 1 EGR Valve

3104230 Exhaust Gas Recirculation Valve  Gasket 1 EGR Cooler Outlet

3104875 Exhaust Gas Recirculation Valve 1 Serviced As 4955421.

3103823 Position Sensor 1 EGR Valve

3684014 Socket Head Cap Screw 2

3684014 Socket Head Cap Screw 2

4089380 Engineering Cooler Kit


3102803 Exhaust Gas Recirculation Cooler 1 4089380 Kit

3101917 Exhaust Gas Recirculation Valve  Gasket 1

3102392 Exhaust Gas Recirculation Valve  Gasket 1

3101632 Plain Hose 1

3683144 V Band Clamp 1

3033915 O-Ring Seal 1

3101662 O-Ring Seal 1

4089832 Engineering Position Sensor Kit


3103823 Position Sensor 1 EGR Valve

3165138 Guide Pin 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 11.25cm*7.5cm*7.5cm
Weight 8.8KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
