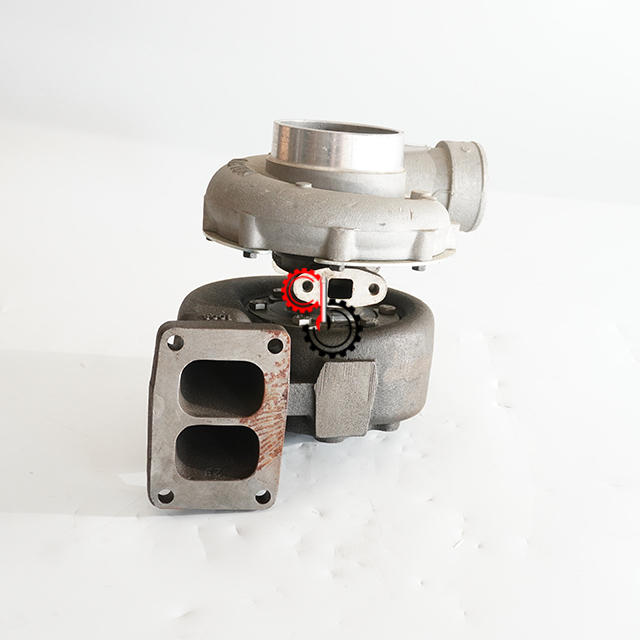

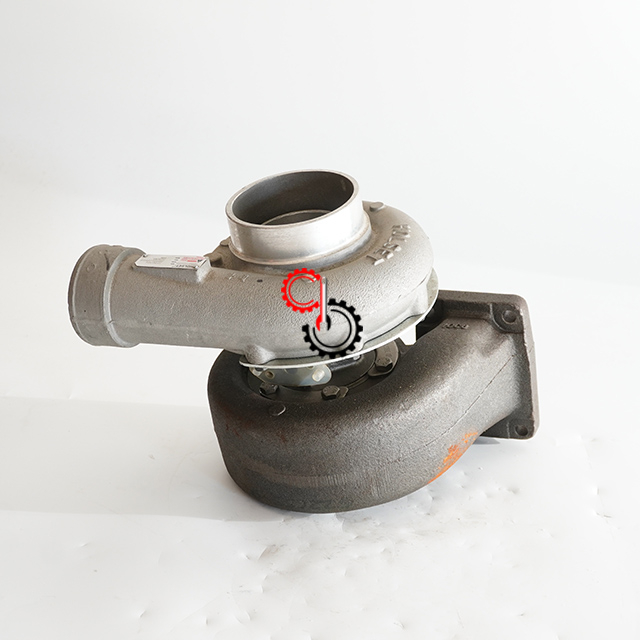

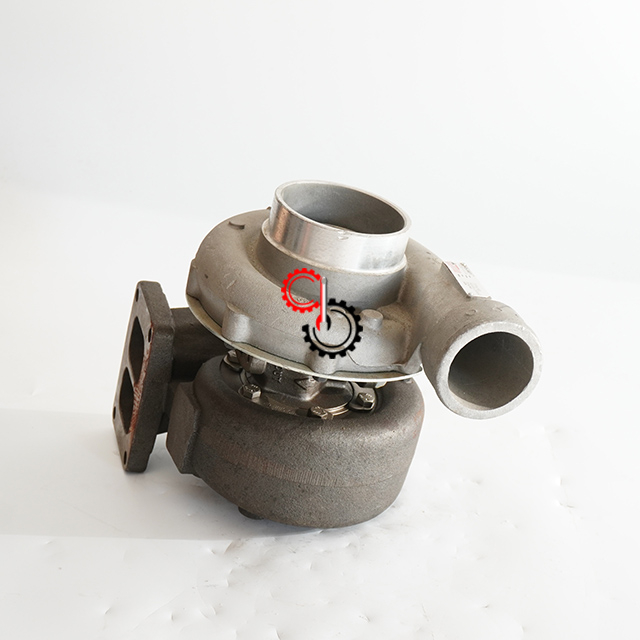

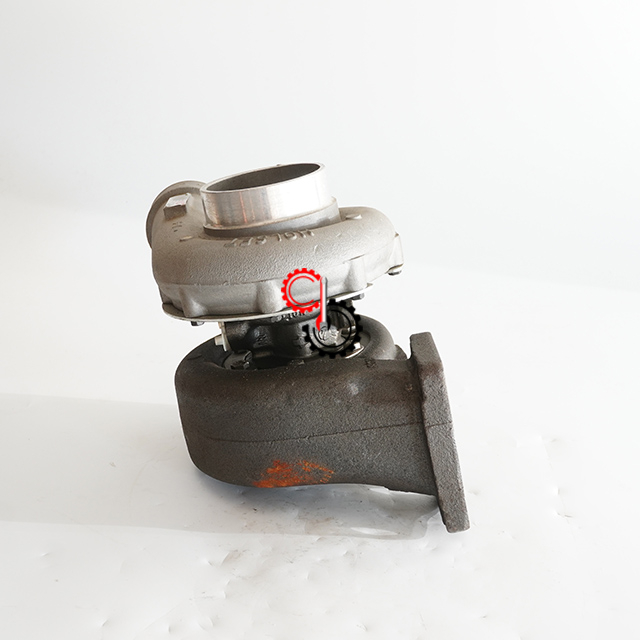

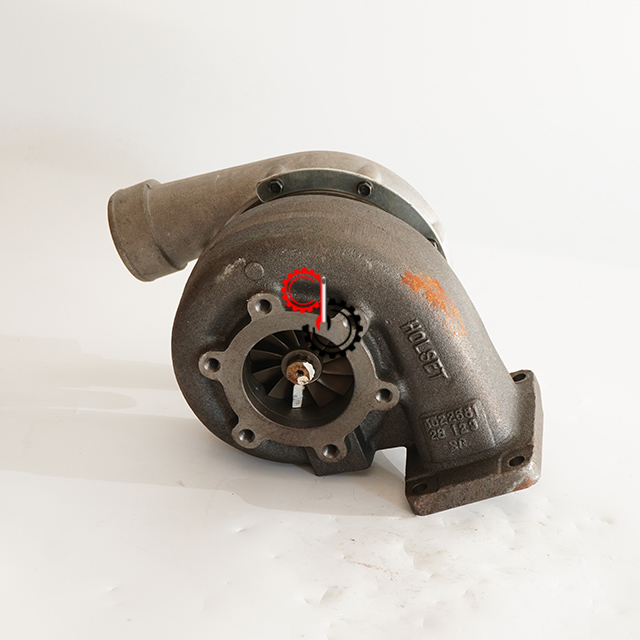

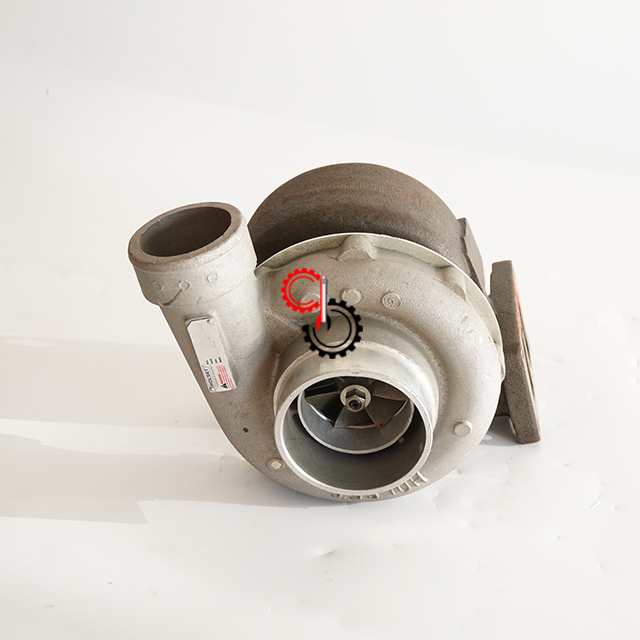

Cummins VTA28 HX50 Turbocharger 3596901 3796941 3596903 3596902 4089828

  • 3596901 3796941 3596903 3596902 4089828

  • Cummins

Supersession Part Number:
3596901
3596902
3596903
4089828
3796941
weigt(kg):
17.125
Size:
32cm*20cm*33cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export

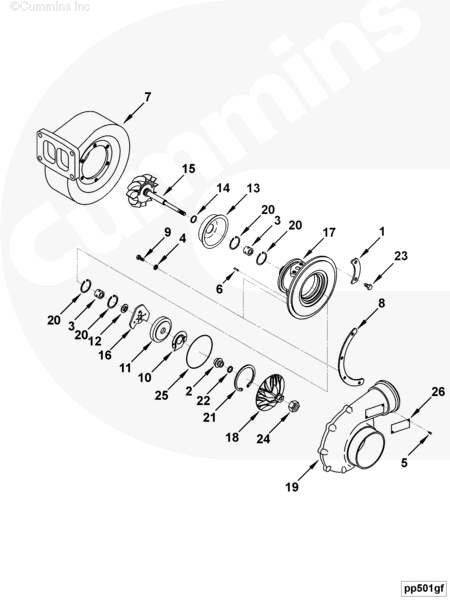

Electronic Parts Catalog - Option Detail
Engines G28, V28

4089828

Cart Ref No Part Number Part Description


PP43480 Turbocharger

4089828 Turbocharger  Kit 1

3596901 Turbocharger 1
1 3502017 Clamping  Plate 3
2 3502231 Oil  Slinger 1
3 3504413 Turbocharger  Bearing 2
4 3518004 Lock  Washer 8
5 3519163 Drive  Screw 2
6 3522597 Roll  Pin 2
7 3522655 Turbine  Housing 1
8 3523227 Clamping  Plate 2
9 3524262 Hexagon  Head Set Screw 8
10 3528094 Oil  Baffle 1
11 3528096 Oil  Seal Plate 1
12 3529162 Thrust  Collar 1
13 3529846 Turbocharger  Heat Shield 1
14 3532814 Split  Ring Seal 2
15 3534287 Shaft  Wheel Rotor 1
16 3591655 Turbocharger  Thrust Bearing 1
17 3591759 Turbocharger  Bearing Housing 1
18 3596135 Turbocharger  Compressor Impeller 1
19 3596904 Compressor  Housing 1
20 3709753 Retaining  Ring 4
21 3723863 Retaining  Ring 1
22 3758848 Split  Ring Seal 1
23 3759917 Hexagon  Head Set Screw 6
24 3760250 Lock  Nut 1
25 3762915 O-Ring  Seal 1
26 3527619 Dataplate 1

4089828 Turbocharger  Kit A/R

3545577 Turbocharger  Gasket Kit 1
