Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034
Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034 Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034
Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034 Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034
Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034 Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034
Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034 Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034

loading

Genuine Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

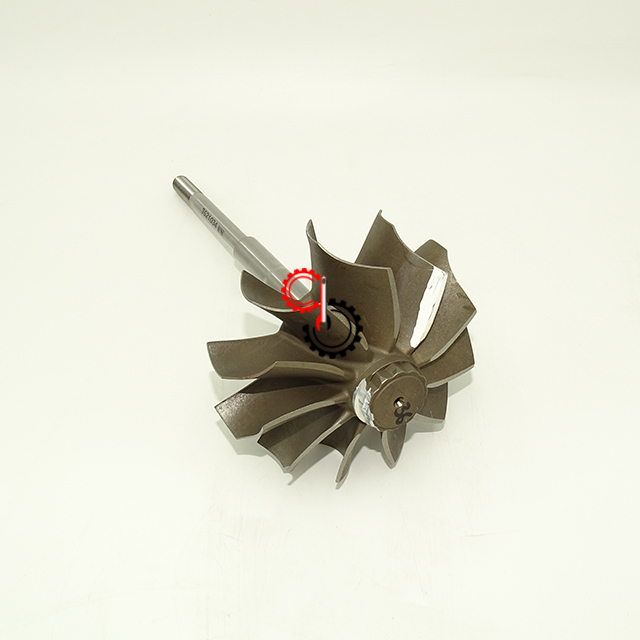

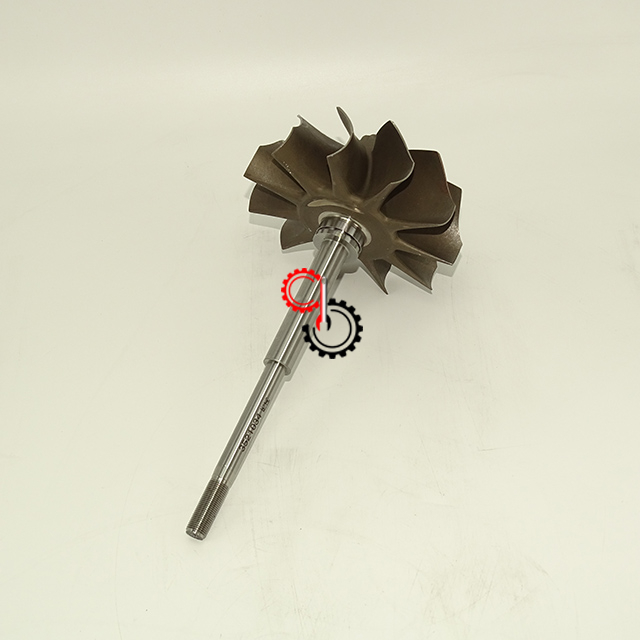

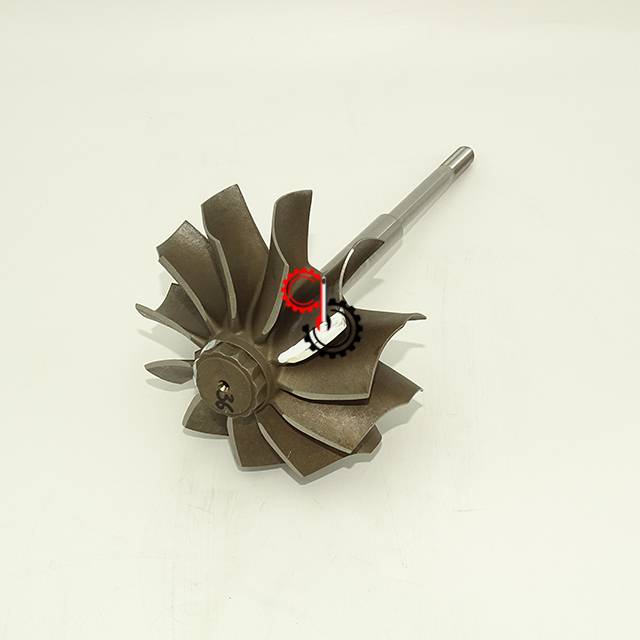

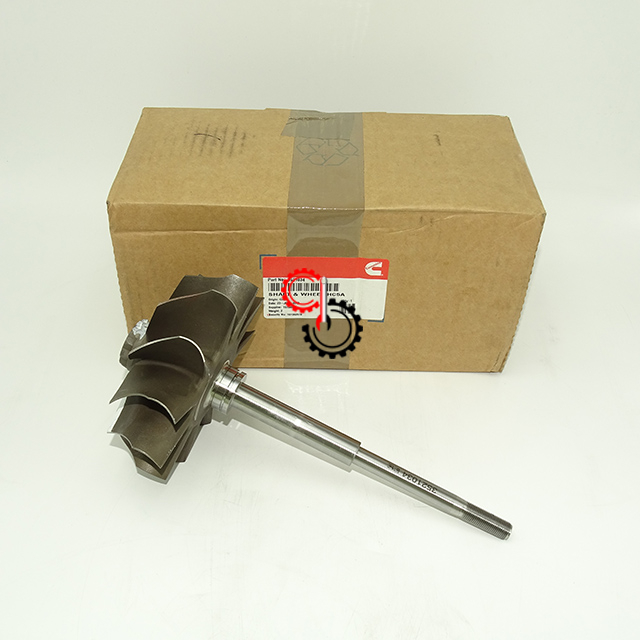

Cummins Diesel Engine Parts Shaft Wheel Rotor 3521034

  • 3521034

  • Cummins

Supersession Part Number:
3521034
3526150
weigt(kg):
0.772
Size:
14cm*14cm*27cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export

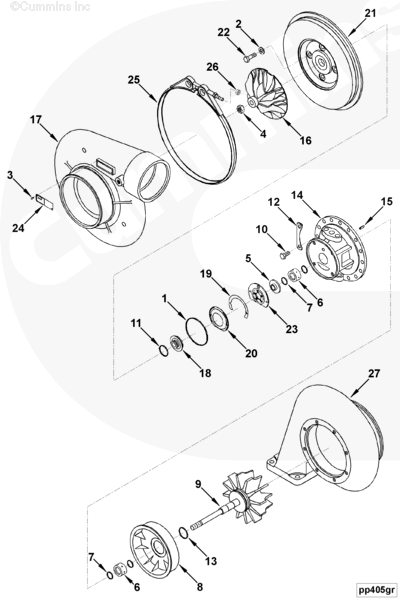

Electronic Parts Catalog - Option Detail
Engines K19, KTA19 G CMEICS  K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19  CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3521034

Cart Ref No Part Number Part Description


PP4131 Turbocharger


3594066 Turbocharger
1 3502449 Rectangular   Ring Seal 1
2 3504967 Plain   Washer 4
3 3519163 Drive   Screw 2
4 3519535 Lock   Nut 1
5 3519623 Thrust   Collar 1
6 3519627 Turbocharger   Bearing 2
7 3519641 Retaining   Ring 4
8 3519783 Turbocharger   Heat Shield 1
9 3521034 Shaft   Wheel Rotor 1
10 3521225 Hexagon   Head Set Screw 8
11 3521442 Split   Ring Seal 1
12 3522904 Lock   Plate 4
13 3523412 Split   Ring Seal 1

3523429 Turbocharger   Bearing Housing 1
14    3520933 Turbocharger   Bearing Housing 1
15    3522597 Roll   Pin 2
16 3523024 Turbocharger   Compressor Impeller 1
17 3525076 Compressor   Housing 1
18 3523980 Oil   Slinger 1
19 3524418 Shim 1
20 3524419 Oil   Baffle 1
21 3524863 Turbocharger   Diffuser 1
22 3525073 Hexagon   Head Set Screw 4
23 3523306 Turbocharger   Thrust Bearing 1
24 3527619 Dataplate 1
25 3522631 V   Band Clamp 1
26 3503335 Regular   Hexagon Nut 1
27 3521265 Turbine   Housing 1

3594111 Turbocharger 1
1 3502449 Rectangular   Ring Seal 1
2 3504967 Plain   Washer 4
3 3519163 Drive   Screw 2
4 3519535 Lock   Nut 1
5 3519623 Thrust   Collar 1
6 3519627 Turbocharger   Bearing 2
7 3519641 Retaining   Ring 4
8 3519783 Turbocharger   Heat Shield 1
9 3521034 Shaft   Wheel Rotor 1
10 3521225 Hexagon   Head Set Screw 8
11 3521442 Split   Ring Seal 1
12 3522904 Lock   Plate 4
13 3523412 Split   Ring Seal 1

3523429 Turbocharger   Bearing Housing 1
14    3520933 Turbocharger   Bearing Housing 1
15    3522597 Roll   Pin 2
16 3523546 Turbocharger   Compressor Impeller 1
17 3523556 Compressor   Housing 1
18 3523980 Oil   Slinger 1
19 3524418 Shim 1
20 3524419 Oil   Baffle 1
21 3524421 Turbocharger   Diffuser 1
22 3525073 Hexagon   Head Set Screw 4
23 3523306 Turbocharger   Thrust Bearing 1
24 3527619 Dataplate 1
25 3528109 V   Band Clamp 1
26 3503335 Regular   Hexagon Nut 1
27 3529706 Turbine   Housing 1


Previous:
Next:
3521034 turbocharger impeller wheels turbocharger shaft wheel shaft wheel rotor shaft wheel rotor 3521034
