Genuine Cummins Diesel Engine Lubrication Part K19 Oil Pan 3410241 3086097
Genuine Cummins Diesel Engine Lubrication Part K19 Oil Pan 3410241 3086097 Genuine Cummins Diesel Engine Lubrication Part K19 Oil Pan 3410241 3086097
Genuine Cummins Diesel Engine Lubrication Part K19 Oil Pan 3410241 3086097 Genuine Cummins Diesel Engine Lubrication Part K19 Oil Pan 3410241 3086097
Genuine Cummins Diesel Engine Lubrication Part K19 Oil Pan 3410241 3086097 Genuine Cummins Diesel Engine Lubrication Part K19 Oil Pan 3410241 3086097

loading

Genuine Cummins Diesel Engine Lubrication Part K19 Oil Pan 3410241 3086097

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins K19 Oil Pan 3410241 3086097

  • K19

  • Cummins

  • 3410241 3086097

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins K19 Oil Pan 3410241 3086097 In Stock

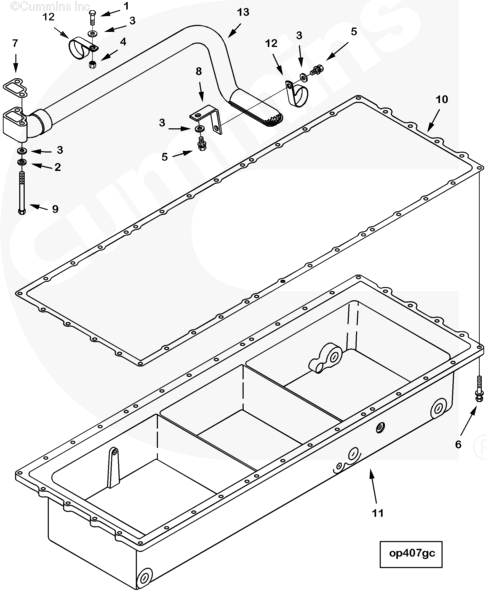

Electronic Parts Catalog - Option Detail
Cummins Engines K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G

3410241

Ref No Part Number Part Description Required Remarks

OP4076 Oil Pan
Oil Pan...(More)
1 S 194 Hexagon Head Cap Screw 1 3/8 - 24 x 1 1/4 in.
2 S 610 Lock Washer 2 7/16 in.
3 108330 Plain Washer 5 3/8 in.
4 129069 Lock Nut 1 3/8 - 24 UNF.
5 3010595 Captive Washer Cap Screw 2 3/8 - 16 X 1 in.
6 3068533 Captive Washer Cap Screw 38 3/8 - 16 X 2 1/2 in
7 3079754 Oil Suction Connection Gasket 1
8 3081817 Tube Brace 1
9 3085752 Hexagon Head Cap Screw 2 7/16 - 14 x 4.5
10 3085778 Oil Pan Gasket 1
11 3410241 Oil Pan 1
12 3086144 Clip 2
13 3086207 Lubricating Oil Suction Tube 1


SHIPMENT CHARACTERISTIC

Length * Width * Height

 125cm*46cm*3cm
Weight 36.287KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.



Previous:
Next:
3086097 3410241 cummins K19 Oil Pan k19 oil pan oil pan engine oil pan truck oil pan cummins oil pan
