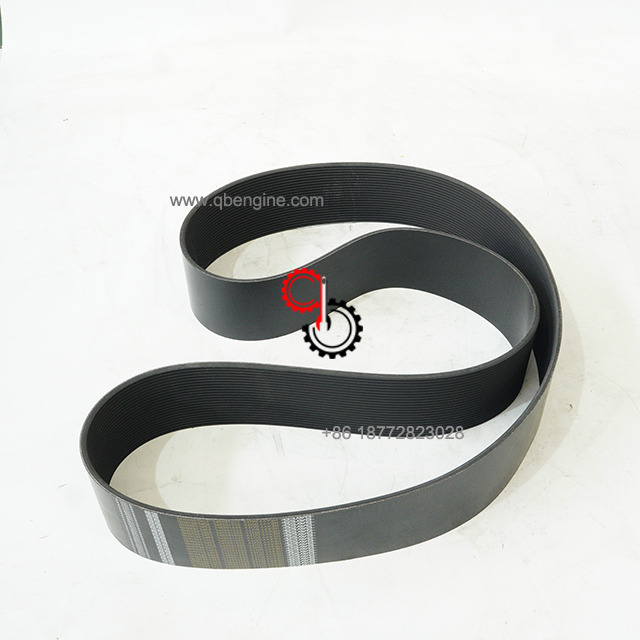

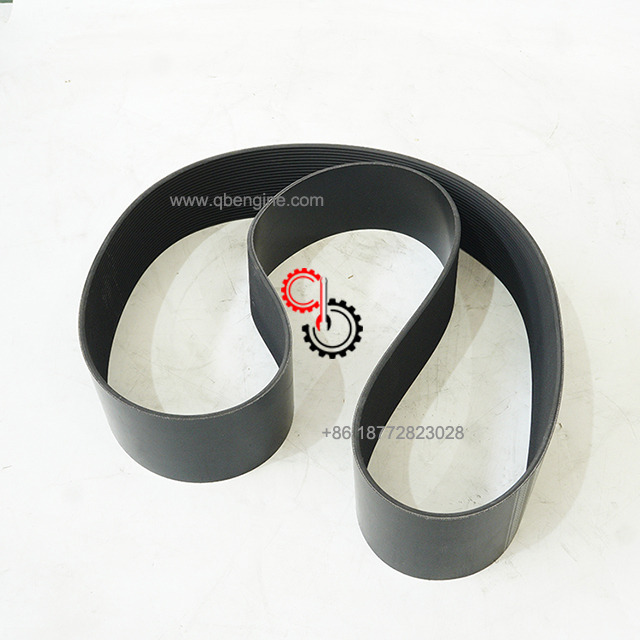

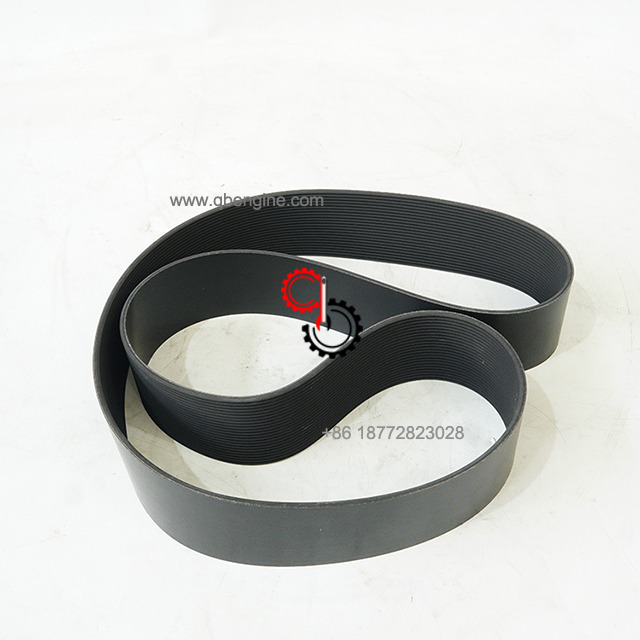

Cummins QSK45 QSK60 QSK95 Engines V Ribbed Belt 4015784

  • QSK45 QSK60 QSK95

  • Cummins

  • 4015784

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK45 QSK60 QSK95 Engines V Ribbed Belt 4015784 In Stock

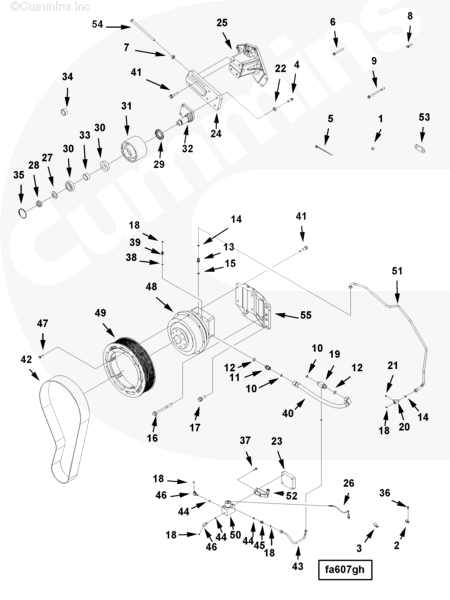

Electronic  Parts Catalog - Option Detail
Cummins  Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

4015784

Ref No Part Number Part Description Required Remarks

FA6200-03 Fan Drive

1 66747 Mounting Spacer 2
2 68152 Clip 1 #4
3 69911 A Clip 1
4 206391 Twelve Point Cap Screw 4 5/8 - 11 X 1 1/2 in.
5 3062329 Wire Tie Clamp 7
6 3089563 Hexagon Flange Head Cap Screw 1
7 3171181 Hexagon Flange Nut 1
8 3171713 Hexagon Flange Head Cap Screw 2 M12 X 1.75 X 50.
9 3171715 Hexagon Flange Head Cap Screw 2 M12 x 1.75 x 190

3171722 Male Union 1
10 3085709 O-Ring Seal 1
11 3171723 Male Union 1
12 3678606 O-Ring Seal 1 M27 X 2.00

3331873 Male Union 1
13 3331838 Male Union 1
14 3627695 O-Ring Seal 1
15 3678786 O-Ring Seal 1 M18
16 3332174 Hexagon Flange Head Cap Screw 4
17 3332175 Hexagon Flange Head Cap Screw 2

3410781 Male Union Tee 1
10 3085709 O-Ring Seal 1
18 3089392 O-Ring Seal 1
19 3410367 Male Run Tee 1

3410782 Male Union Tee 1
20 3410368 Male Union Tee 1
21 3678912 O-Ring Seal 1 M14
22 3628745 Plain Washer 4
23 3635316 Mounting Spacer 1
24 3636278 Clamping Plate 1
25 3636285 Idler Pulley Bracket 1
26 3637075 Wiring Harness 1

3638640 Idler Assembly Pulley 1
27 205168 Plain Washer 1 1 1/2 in.

206506 Lock Nut 1
29 3048625 Oil Seal 1
30 3048626 Roller Bearing 2
31 3637487 Idler Pulley 1
32 3637488 Fan Hub Shaft 1
33 3637489 Bearing Spacer 1
34 3640391 Bearing Spacer 1
35 4101292 Expansion Plug 1
36 3900630 Hexagon Flange Head Cap Screw 1 M8 X 1.25 X 20
37 3902460 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 25.

4000730 Male Union 1
38 3678603 O-Ring Seal 1
39 4000728 Male Union 1
40 4001213 Flexible Hose 1
41 4001226 Hexagon Flange Head Cap Screw 8
42 4015784 V Ribbed Belt 1
43 4015819 Flexible Hose 2

4016277 Male Union 1
44 3037537 O-Ring Seal 1
45 4016278 Male Union 1

4016279 Male Union Elbow 2
44 3037537 O-Ring Seal 1
46 4016280 Male Union Elbow 1

4017551 Clutch , Fan Top Level Assembly 1
47 3093805 Hexagon Flange Head Cap Screw 8 M10 X 1.50 X 35.
48 4016983 Fan Clutch 1
49 4016985 Fan Clutch Pulley 1
50 4066810 Solenoid 1
51 4080262 Flexible Hose 1
52 4086160 Solenoid Bracket 1
53 4101256 Mounting Spacer 2
54 4101288 Hexagon Flange Head Cap Screw 1
55 4917006 Fan Bracket 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 14cm*33cm*28cm
Weight 0.249KG
