Cummins / Cummins Parts / Rocker Lever Assembly, STC Tappet, Cam Follower / Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144
Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144
Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144 Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144
Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144 Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144
Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144 Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144

loading

Genuine Construction Machinery Cummins Engine Parts V Band Clamp 3683144

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

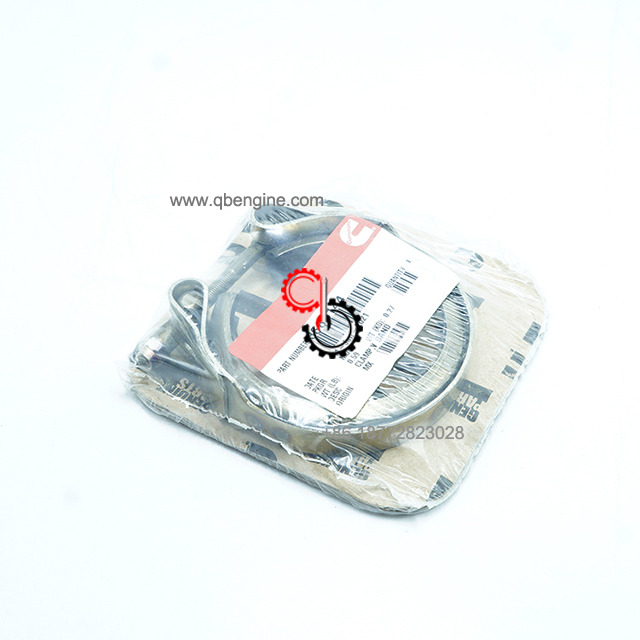

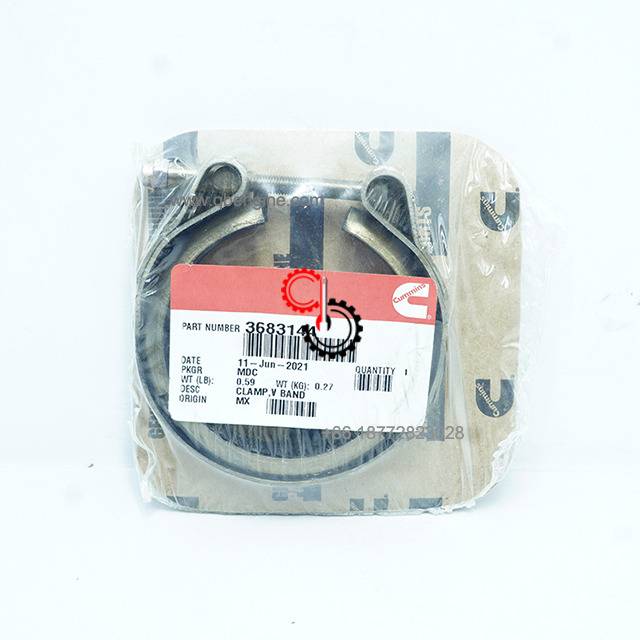

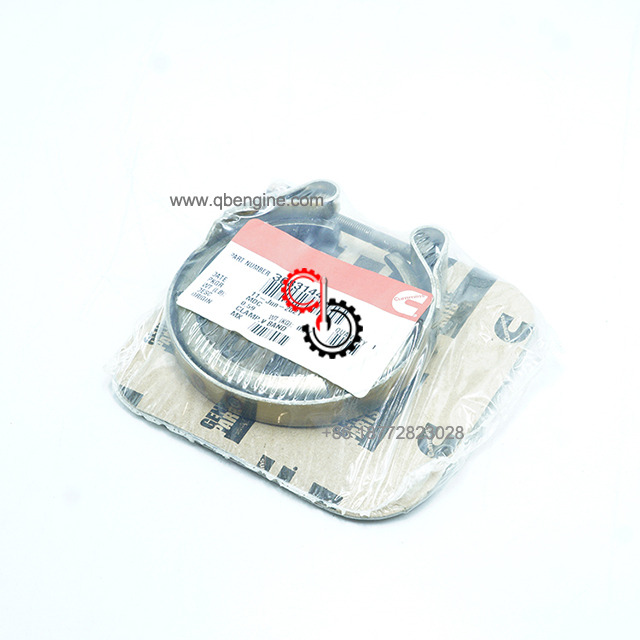

Cummins V Band Clamp 3683144

  • Original

  • Cummins

  • 3683144

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins V Band Clamp 3683144 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines ISM CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876 E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11 CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

3683144

Ref No Part Number Part Description Required Remarks

ER2708-15 Exhaust Recirculation


3026806 Hose Clamp 2 1 3/8 - 1 3/4 in.

3033915 O-Ring Seal

1 3049221 O-Ring Seal 2
2 3089016 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 35.
3 3103529 Hose Clamp 2
4 3101632 Plain Hose 1
5 3101917 Exhaust Gas Recirculation Valve  Gasket 1
6 3102043 Hexagon Flange Head Cap Screw 3 M10 x 1.50 x 55
7 3102317 Exhaust Gas Recirculation Valve  Gasket

8 3102383 Pressure Sensing Tube 1
9 3102386 Pressure Sensing Tube 1
10 3102392 Exhaust Gas Recirculation Valve  Gasket 1

3102561 Male Union 2
11 3036666 O-Ring Seal 1
12 3102562 Male Union 1
13 3102643 Retaining Clamp 1
14 3102645 O-Ring Seal 1
15 3102650 V Band Clamp 1
16 3103765 Exhaust Gas Recirculation Valve 1
17 3102803 Exhaust Gas Recirculation Cooler 1 4089380 Kit
18 3102832 Water Transfer Tube 1
19 3102835 Water Inlet Tube 1
20 3102846 Water Outlet Tube 1
21 3102873 Captive Washer Cap Screw 1
22 3102890 Pressure Sensing Tube 1
23 3102895 Water Inlet Tube 1

3102937 Water Outlet Tube 1
24 3102915 Water Outlet Tube 1
25 3102967 Air Transfer Connection 1

3103077 Exhaust Gas Recirculation Valve  Gasket 1
26 3103099 Captive Washer Cap Screw 1 M10 x 1.50 x 16
27 3103402 Sensor Adapter 1
28 3103122 Clip 1

4907445 Tube Retainer 2

3103230 Water Transfer Tube 1

4907202 Water Inlet Tube 1

3103250 Plain Hose 1

3683068 Plain Pipe Coupling 1
29 3683067 Plain Pipe Coupling 1
30 3683144 V Band Clamp 1
31 3821783 Captive Washer Cap Screw 5 M8 x 1.25 x 20

3895734 Hose Clamp 3
32 3900629 Hexagon Flange Head Cap Screw 1 M8 X 1.25 X 16
33 3900630 Hexagon Flange Head Cap Screw 1 M8 X 1.25 X 20
34 3901446 Hexagon Flange Head Cap Screw 3 M8 X 1.25 X 60.

4903035 Pressure Sensor 1 EGR Differential
35 4076823 Rectangular Ring Seal 2
36 4903036 Pressure Sensor 1

4903479 Pressure Sensor 1 Exhaust Gas
37 4921574 O-Ring Seal 1
38 4903480 Pressure Sensor 1

4088712 Temperature Sensor 1 Exhaust Gas
39 4088389 Temperature Sensor 1
40 4088528 Sealing Washer 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 13cm*3cm*13cm
Weight 0.259KG



Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number orEngine Serial Number ready, so that we can give you the best price possible along with our expertise.
