Cummins / Cummins Parts / Rocker Lever Assembly, STC Tappet, Cam Follower / Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069
Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069
Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069 Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069
Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069 Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069
Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069 Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069

loading

Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

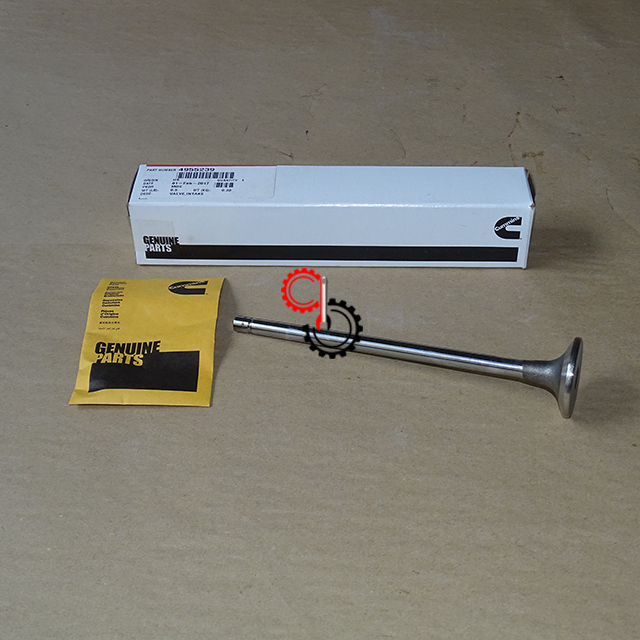

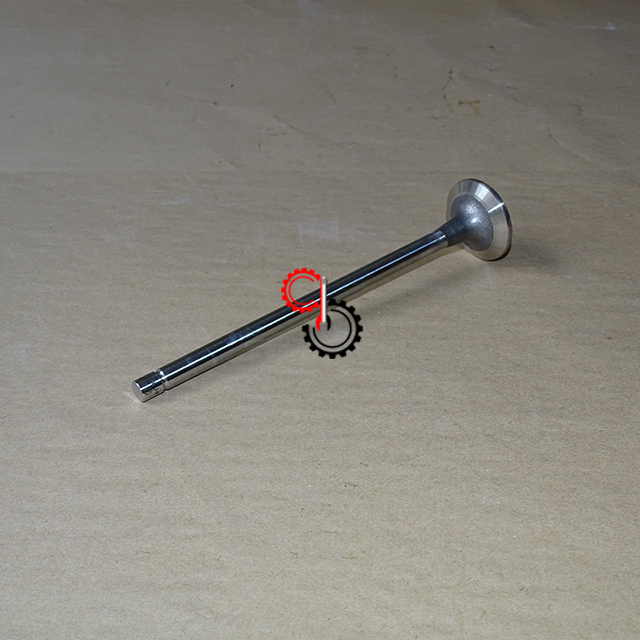

Engine Parts Cummins ISM11 QSM11 M11 Intake Valve 3804533 3800636 4955239 3080975 3417778 4926069

  • 3804533 3800636 4955239 3080975 3417778 4926069

  • Cummins

Supersession Part Number:
3804533
3417778
3080975
4926069
3800636
4955239
weigt(kg):
0.225
Size:
25cm*5cm*5cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export
Electronic   Parts Catalog - Option details
motor ISM   CM570, ISM CM570/870, ISM CM875, ISM CM876, ISM CM876   E, ISM11 CM876 M103, ISM11 CM876 SN, M11 CELECT, M11   CELECT PLUS, M11 MECHANICAL, QSM11 CM570, QSM11 CM876

3804533

Cart Ref No Part Number Part   Description


PP2199-01 Cylinder   head

3097260 Cylinder   head 1
1 3097261 Cylinder   head 1
2 3007632 Expansion   Plug 2
3 206741 Expansion   Plug 2
4 3007635 Expansion   Plug 8
5 3007759 O-Ring   Seal 6
6 3070486 Injector   Sleeve 6
7 3088980 Valve   Insert 24
8 3073512 Valve   Stem Guide 24
9 3895860 Valve   Spring 24

3804533 Intake   Valve Kit 12
10 3080975 Intake   Valve 12
11 3275354 Valve   Collet 48

3804534 Exhaust   Valve Kit 12
12 3080976 Exhaust   Valve 12
13 3883512 Valve   Spring Retainer 24
14 3070072 Valve   Spring Guide 24
15 3008465 Pipe   Plug 16
16 3820749 Orifice   Plug 6
17 3073509 Valve   Stem Seal 12
18 3328781 Valve   Stem Seal 12
19 3895479 Expansion   Plug 2
20 3045850 Hexagon   Flange Head Cap Screw 29
21 3161515 Hexagon   Flange Head Cap Screw 3
22 3328925 Cylinder   Head Gasket 1
23 3882885 Plain   Washer 7
24 3328637 Studded   Flange Cap Screw 5
25 3328379 Hexagon   Flange Head Cap Screw 2
