Cummins QSX Oil Pan 3104436

  • QSX

  • Cummins

  • 3104436

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSX Oil Pan 3104436 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

3104436

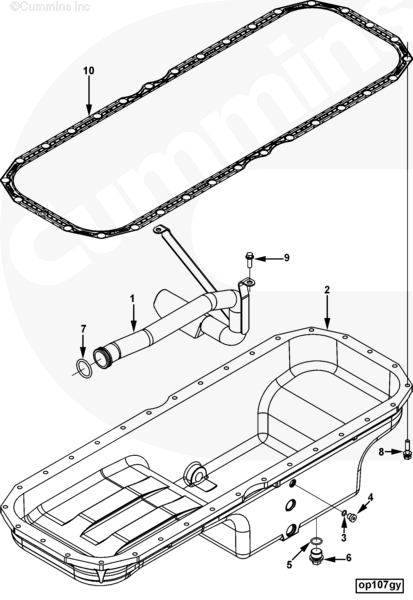

Ref No Part Number Part Description Required Remarks

OP1193 Oil Pan
Oil Pan...(More)
1 3103223 Oil Suction Connection 1

3104436 Pan , Oil Top Level Assembly 1
2 3104107 Oil Pan 1

3680420 Threaded Plug 1
3 3678912 O-Ring Seal 1 M14
4 3680419 Threaded Plug 1

3680534 Threaded Plug 1
5 3678606 O-Ring Seal 1 M27 X 2.00
6 3680533 Threaded Plug 1
7 3678756 O-Ring Seal 1
8 3892692 Captive Washer Cap Screw 32
9 3903112 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 30.
10 4026684 Oil Pan Gasket 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 50cm*40cm*110cm
Weight 36.5KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
