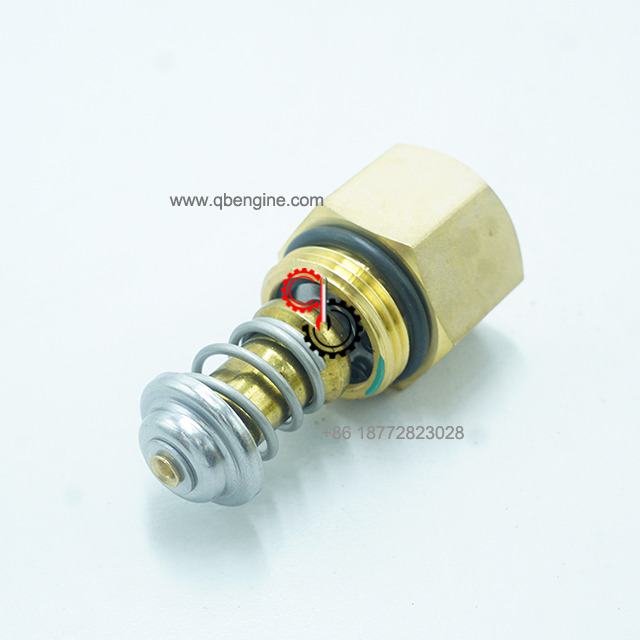

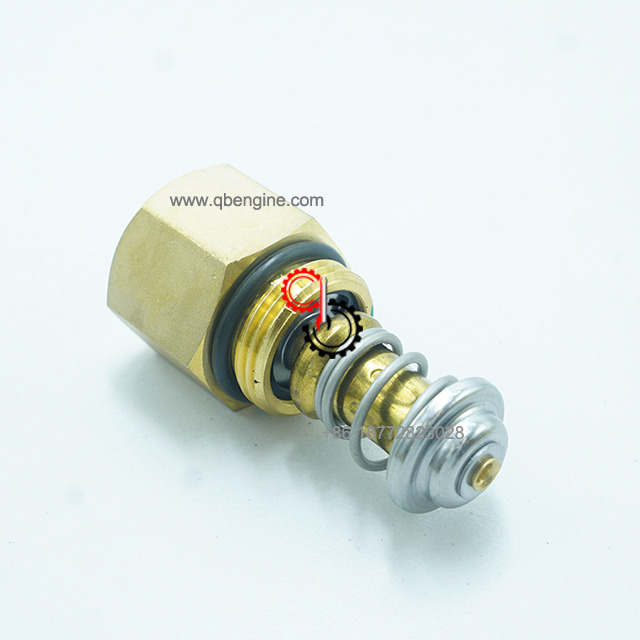

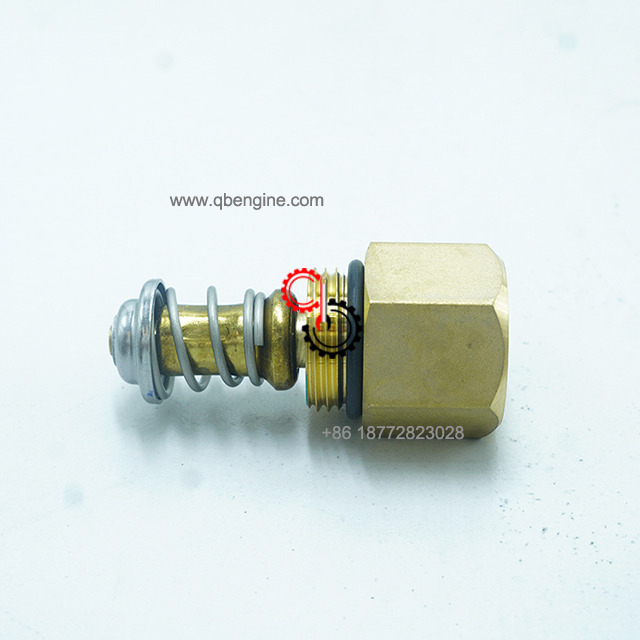

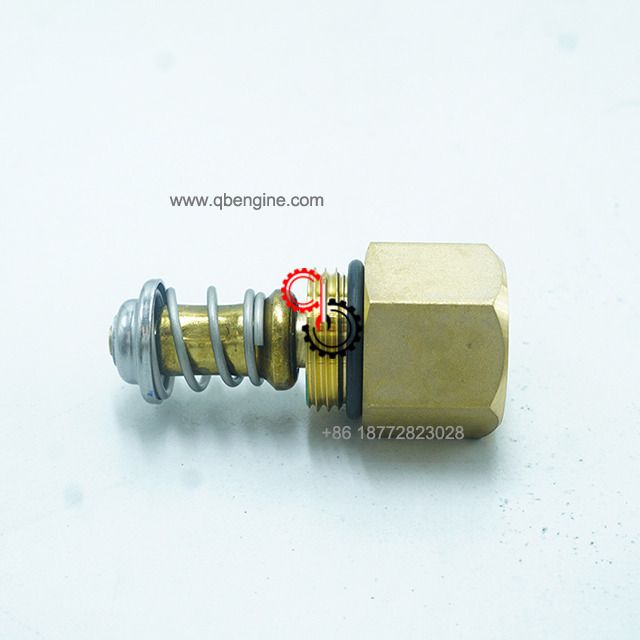

Cummins Oil Thermostat 3696558

  • original

  • Cummins

  • 3696558

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Oil Thermostat 3696558 In Stock

3696558

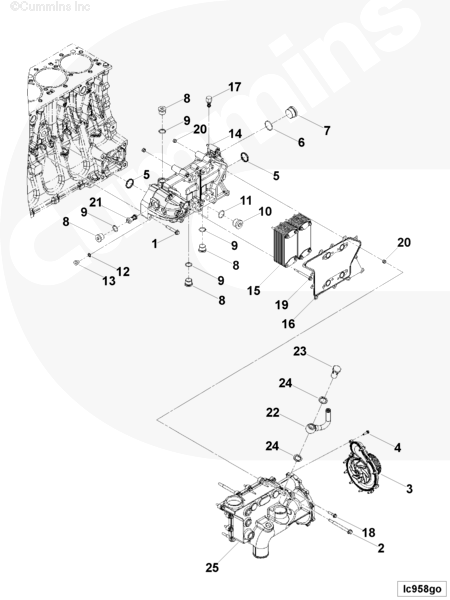

Ref No Part Number Part Description Required Remarks

LC2781 Engine Oil Cooler
Engine Oil Cooler
1 3900635 Hexagon Flange Head Cap Screw 6 M10 X 1.50 X 60.
2 3902663 Hexagon Flange Head Cap Screw 3 M10 X 1.50 X 120.

5377716 Engine Oil Cooler 1
3 3698067 Water Pump 1
4 3902023 Hexagon Flange Head Cap Screw 11 M6 X 1.00 X 25.

5377717 Lubricating Oil Filter Head 1
5 2865048 Diamond Ring Seal 2

3089023 Threaded Plug 1
6 3089019 O-Ring Seal 1
7 3089021 Threaded Plug 1

3678611 Threaded Plug 4
8 3678605 Threaded Plug 1
9 3678606 O-Ring Seal 1

3678838 Threaded Plug 1
10 3678845 Threaded Plug 1
11 3678846 O-Ring Seal 1

3678921 Threaded Plug 1
12 3678912 O-Ring Seal 1
13 3678922 Threaded Plug 1
14 3691939 Oil Filter Cooler Housing 1
15 3695682 Cooler Core 2
16 3696552 Lubricating Oil Cooler Cover  Gasket 1
17 3696558 Thermostat 1
18 3900632 Hexagon Flange Head Cap Screw 7 M8 X 1.25 X 35.
19 3913366 Hexagon Flange Head Cap Screw 8 M8 X 1.25 X 90.
20 4067993 Ring Dowel 4
21 4357177 Pressure Relief Valve 1
22 5377718 Water Transfer Tube 1
23 5377719 Banjo Connector Screw 1
24 5377720 Sealing Washer 2
25 5377721 Lubricating Oil Cooler Cover 1


SHIPMENT CHARACTERISTICS

Length * Width * Height

 4.5cm*4.5cm*8cm
Weight 0.242KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
