Cummins / Products / Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013
Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013
Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013 Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013
Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013 Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013
Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013 Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013

loading

Durable Cummins Engine Parts Lubricating Oil Filter Head 3629386 3629541 3630013

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins Lubricating Oil Filter Head 3629386 3629541 3630013

  • original

  • cummins

  • 3629386 3629541 3630013

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins Lubricating Oil Filter Head 3629386 3629541 3630013 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines G50, K50, K50-DPM, QSK50 CM2150 K107, QSK50 CM2150 MCRS, QSK50 CM2350 K108, QSK50 CM850 MCRS, QSK50 DF CM850/CM2150 MCRS


3629386

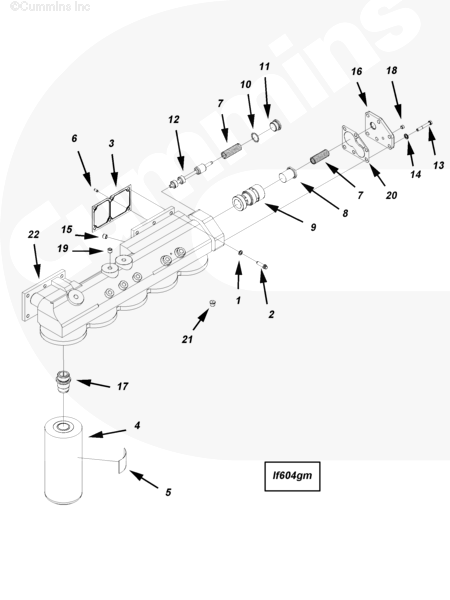

Ref No Part Number Part Description Required Remarks

LF6027-03 Lubricating Oil Filter
Lubricating Oil Filter

3012565 Filter Head Mounting Lubricating  Oil 1
1 127362 Plain Washer 12 3/8 in.
2 191772 Twelve Point Cap Screw 12 3/8 - 16 X 1 1/4 in.
3 3643837 Filter Head Gasket 2
4 3310169 Lubricating Oil Filter Element 5
5 3315228 Decal 5

3629386 Lubricating Oil Filter 1
6 69558 Pin Dowel 1
7 205659 Compression Spring 1
8 3021618 Pressure Regulator Plunger 1
9 3028552 Bypass Valve Body 1

3080495 Pressure Regulator Valve 1
7 205659 Compression Spring 1

3040818 Threaded Plug 1 1 3/16 - 12 UN
10 3035228 O-Ring Seal 1
11 3040819 Threaded Plug 1
12 3627927 Pressure Regulator Plunger 1

3629385 Lubricating Oil Filter Head 1
13 S 103 D Hexagon Head Cap Screw 6 3/8 - 16 x 1 1/4 in.
14 S 604 Lock Washer 6 3/8 in.
15 S 910 B Pipe Plug 1 1/4 NPT.
16 3177433 Cover Plate 1
17 3627309 Filter Head Adapter 5
18 3628604 Pipe Plug 1 1/8 - 27 X 0.3 in.
19 3628605 Pipe Plug 8 1/4 - 18.
20 3629141 Lubricating Oil Filter Cover  Gasket 1

3630013 Head , Lubrication Oil Filter 1
21 3037536 Threaded Plug 2 9/16 - 18 UNF
22 3629541 Lubricating Oil Filter Head 1

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
