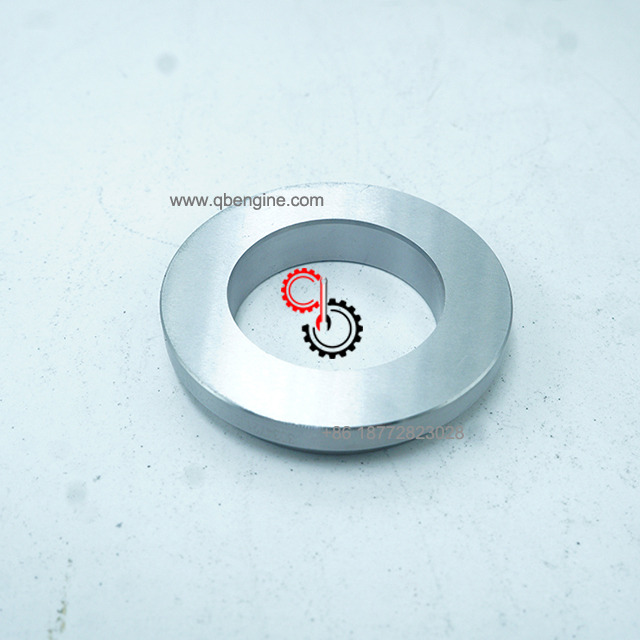

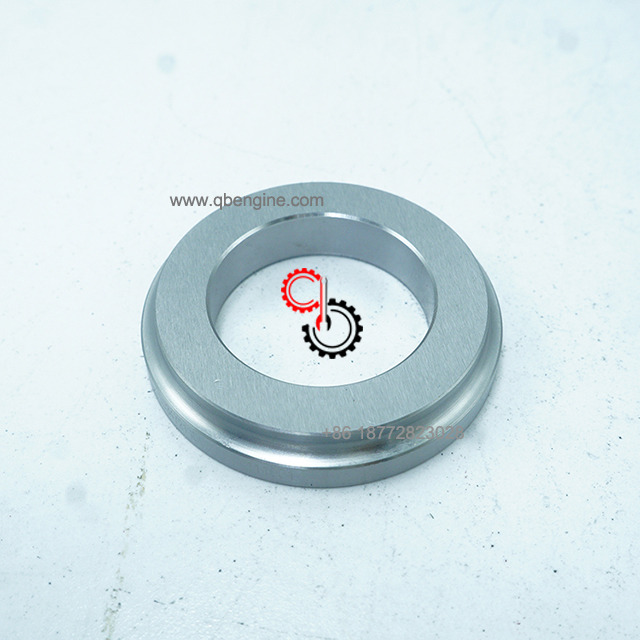

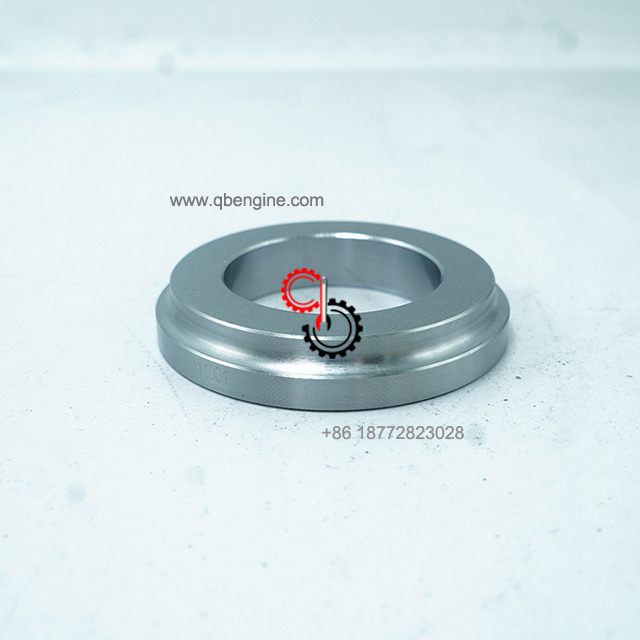

Cummins Water Pump Shaft Lock Washer 3034721 In Stock
| Electronic Parts Catalog - Option Detail |
| Cummins Engines | K19, KTA19 G CMEICS K123, KTA19GC, KTA19GC CM558, QSK19 CM2150 MCRS, QSK19 CM2350 K105, QSK19 CM500, QSK19 CM850 MCRS, QSK19G |

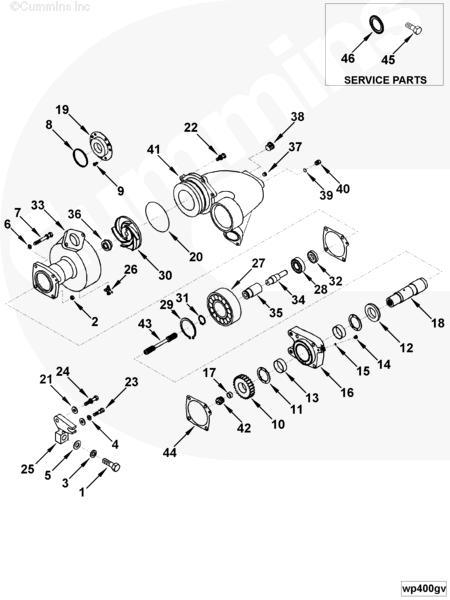

| Ref No | Part Number | Part Description | Required | Remarks |
| WP4704-03 | Water Pump |
| Pump, water...(More) |
| 1 | S 103 A | Hexagon Head Cap Screw | 1 | 5/8 - 11 X 2 in. |
| 2 | S 205 | Regular Hexagon Nut | 1 | 3/8 - 24 UNF. |
| 3 | S 603 | Lock Washer | 1 | 5/8 in. |
| 4 | S 604 | Lock Washer | 1 | 3/8 in. |
| 5 | S 658 | Plain Washer | 1 | 5/8 in. |
| 6 | 127362 | Plain Washer | 3 | 3/8 in. |
| 7 | 3012476 | Captive Washer Cap Screw | 3 | 3/8 - 16 X 3 in. |
| 8 | 3086120 | Rectangular Ring Seal | 1 |
|
| 9 | 3086121 | Round Head Cap Screw | 6 |
|
| 3086132 | Water Pump Shaft | 1 | Recon Equivalent 3086132 RX |
| 10 | 207251 | Water Pump Gear | 1 |
|
| 11 | 3026556 | Thrust Bearing | 2 |
|
| 12 | 3034721 | Shaft Retainer | 1 |
|
| 3086177 | Water Pump Support | 1 |
|
| 13 | 205156 | Bushing | 2 |
|
| 3056416 | Threaded Plug | 1 | 5/16 - 24 UNF |
| 14 | 3056003 | Threaded Plug | 1 |
|
| 15 | 3056415 | O-Ring Seal | 1 |
|
| 16 | 3086178 | Water Pump Support | 1 |
|
| 3329524 | Water Pump Shaft | 1 | Serviced as 3806279 |
| 17 | 205498 | Solid Plug | 1 |
|
| 18 | 3086123 | Water Pump Shaft | 1 |
|
| 19 | 3090437 | Oil Seal | 1 |
|
| 3331600 | Pump , Water Painted Top Level Assembly | 1 |
|
| 3331599 | Pump , Water Top Level Assembly | 1 |
|
| 20 | 145623 | O-Ring Seal | 1 |
|
| 21 | 3005594 | Plain Washer | 2 | 3/8" |
| 22 | 3010596 | Captive Washer Cap Screw | 3 | 3/8 - 16 x 1 1/4 in. |
| 23 | 3012472 | Captive Washer Cap Screw | 1 | 3/8 - 16 X 1 1/2 in. |
| 24 | 3012474 | Captive Washer Cap Screw | 1 | 3/8 - 16 x 2 in. |
| 25 | 3036096 | Water Pump Brace | 1 |
|
| 3201986 | Water Pump | 1 | Recon equivalent 3201986 RX |
| 26 | S 962 E | Draincock | 1 |
|
| 27 | S 16002 | Ball Bearing | 1 |
|
| 28 | S 16069 | Ball Bearing | 1 |
|
| 29 | 70183 | Retaining Ring | 1 |
|
| 30 | 205243 | Water Pump Impeller | 1 |
|
| 31 | 205258 | Retaining Ring | 1 |
|
| 32 | 206948 | Oil Seal | 1 | Serviced as 3804573 |
| 33 | 206964 | Water Pump Body | 1 |
|
| 3042827 | Water Pump Shaft | 1 | Serviced as 3804573 |
| 34 | 205158 | Water Pump Shaft | 1 |
|
| 35 | 3040833 | Water Pump Shaft | 1 |
|
| 36 | 3071085 | Water Pump Seal | 1 |
|
| 3865971 | Water Inlet Connection | 1 |
|
| 37 | 3008466 | Pipe Plug | 1 | 1/4 NPT. |
| 38 | 3027232 | Pipe Plug | 1 | 1/2 NPT. |
| 3629114 | Threaded Plug | 2 |
|
| 39 | 3037236 | O-Ring Seal | 1 | Ref. SPT 97T10 |
| 40 | 3629113 | Threaded Plug | 1 |
|
| 41 | 3866637 | Water Inlet Connection | 1 |
|
| 42 | 3200968 | Threaded Plug | 1 | 7/8 - 14 UNF |
| 43 | 3202007 | Water Pump Shaft | 1 |
|
| 44 | 3202283 | Water Pump Gasket | 2 |
|
| 3804705 | Accessory Drive Seal Kit | A/R |
|
| 45 | 3090392 | Hexagon Head Cap Screw | 1 |
|
| 46 | 3200287 | Keyway Seal | 1 |
|
| 3090395 | Seal Installation Tool | 1 |
|
| 3806279 | Water Pump Shaft | 1 |
|
SHIPMENT CHARACTERISTICS |
|
| Length * Width * Height | 9cm*9cm*4cm |
| Weight | 0.197KG |
