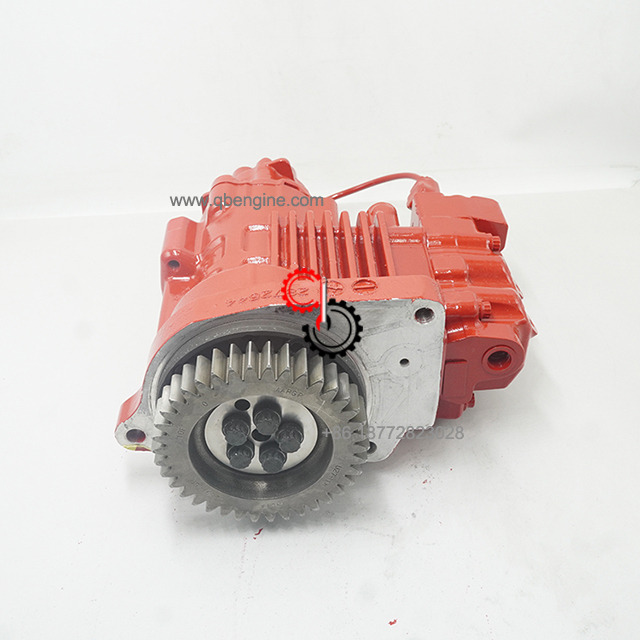

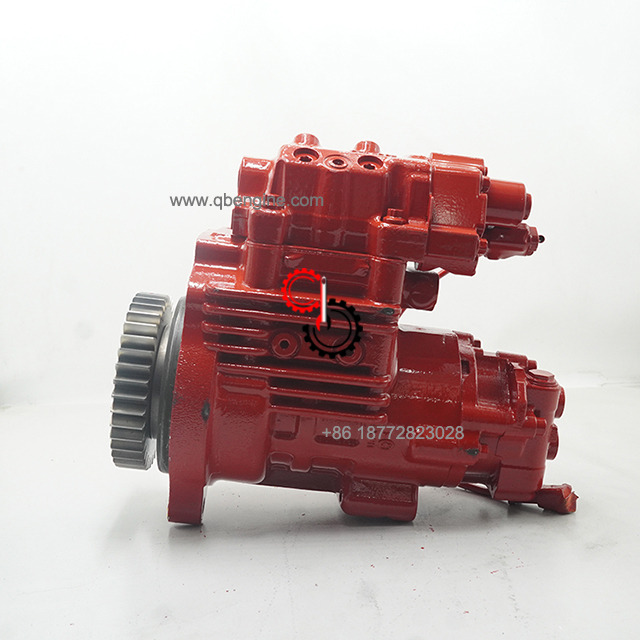

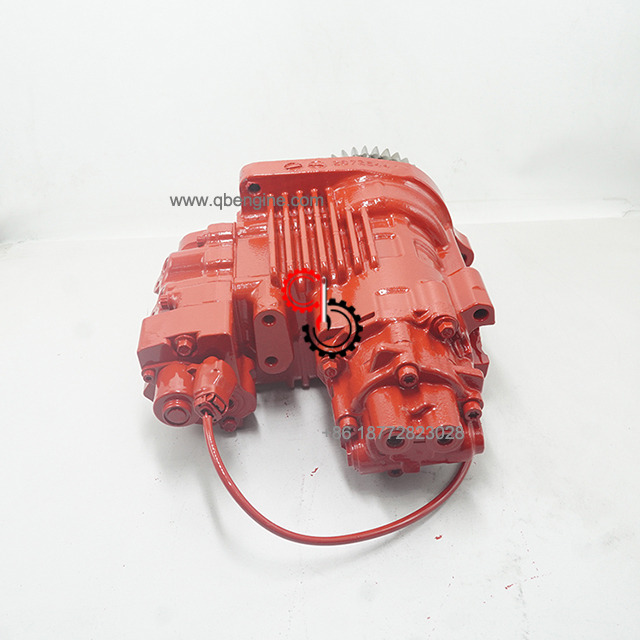

Cummins X15 Fuel Injection Pump 4359487 4359489 4359490 5491785 5491784 5491786

Cummins X15 Fuel Injection Pump 4359487 4359489 4359490 5491785 5491784 5491786

Name: Cummins X15 Fuel Injection Pump 4359487 4359489 4359490 5491785 5491784 5491786
Brand: cummins
Rating: 5.0 (97 reviews)

Model:
X15
Brand:
cummins
Code:
4359487 4359489 4359490 5491785 5491784 5491786
Delivery Period:
1-7 days
Package:
Genuine Original package or Ne
Warranty:
6 Months

Availability:

Quantity:



Inquire Add to Basket PDF Export

Product Description

Cummins X15 Fuel Injection Pump 4359487 4359489 4359490 5491785 5491784 5491786 In Stock

Electronic Parts Catalog - Option Detail
Cummins Engines	ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, QTR TR101, R2.8 CM2220 R101B, X11 CM2670 X126B, X12 CM2350 X119B, X12 CM2670 X121B, X12 CM2670 X136B, X13 CM2670 X122B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X130C, X15 CM2450 X124B, Z14 CM2670 Z103B

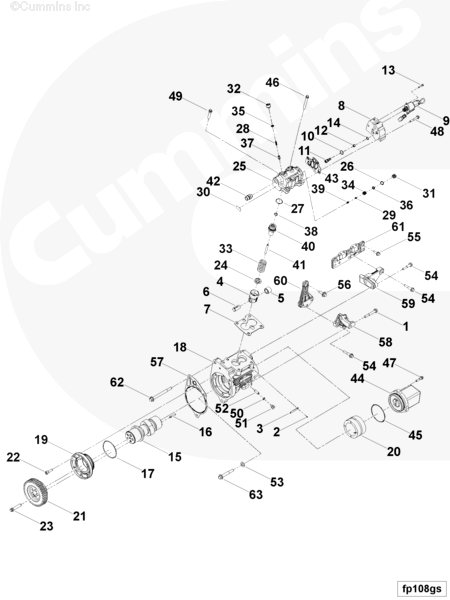

4359487

Ref No	Part Number	Part Description	Required	Remarks
	FP10278	Fuel Pump		PUMP, FUEL...(More)
1	2830730	Hexagon Flange Head Cap Screw	2	M10 X 1.50 X 70.
	4359487	Fuel Pump	1
2	S 2286	Drive Screw	2	3/16 in.
3	105375	Nameplate	1
	4359134	Pump Tappet	2
4	2897660	Pump Tappet	1
5	2872368	Tappet Roller	1
6	4327200	Tappet Roller Pin	1
7	2872513	Fuel Pump Gasket	1
	2872518	Fuel Pump Adapter	1
8	2872517	Fuel Pump Adapter	1
9	4307411	Electronic Fuel Control Actuator	1
10	3922794	O-Ring Seal	1
11	4928536	Orifice Plug	1
12	4928537	Filter Screen	1
13	4954179	Socket Head Cap Screw	2	M5 X 0.80 X 16.
14	4984808	O-Ring Seal	1
	2872658	Fuel Pump Body	1
	2872507	Camshaft	1
15	2872475	Camshaft	1
16	4928622	Pin Dowel	2
17	2872509	O-Ring Seal	1
18	4307000	Fuel Pump Body	1
19	4307065	Bearing Support	1
20	2897453	Bearing Support	1
21	2897458	Fuel Pump Gear	1
22	3901350	Socket Head Cap Screw	6	M10 X 1.50 X 30.
23	4954275	Twelve Point Cap Screw	5	M12 X 1.75 X 55.
	2872661	Fuel Pump Head	1
24	2872626	Spring Retainer	2
25	2872660	Fuel Pump Head	1
26	3867641	O-Ring Seal	2
27	3867651	O-Ring Seal	2
28	4088602	Compression Spring	2
29	4902781	Compression Spring	2
30	4903291	Identification Tag	1
31	4928155	Threaded Plug	2
32	4928540	Threaded Plug	2
33	4928605	Compression Spring	2
41	4954937	Check Valve Plunger Stop	2
35	4954944	Sealing Washer	2
36	4954945	Sealing Washer	2
37	4359505	Check Valve Plunger	2
38	4984382	Sealing Washer	3
39	4984474	Check Valve Plunger	2
	4307402	Barrel And Plunger	2
40	4984182	Pump Tappet Barrel	1
41	4307336	Pump Tappet Plunger	1
42	4984978	High Pressure Fuel Fitting	1
43	2872663	Fuel Pump Gasket	1
	4307482	Fuel Pump	1	Low Pressure Pump.
44	4307438	Gear Fuel Pump	1
45	4903514	O-Ring Seal	1
46	3046599	Twelve Point Cap Screw	1	M10 X 1.50 X 80.
47	3900632	Hexagon Flange Head Cap Screw	3	M8 X 1.25 X 35.
48	3900633	Hexagon Flange Head Cap Screw	3	M8 X 1.25 X 50.
49	3946085	Twelve Point Cap Screw	3	M10 X 1.50 X 50.
	4921713	Threaded Plug	2
50	3417238	O-Ring Seal	1
51	4921712	Threaded Plug	1
52	4984768	Guide Pin	2
53	3035806	Plain Washer	2	M12.
54	3093807	Hexagon Flange Head Cap Screw	8	M10 X 1.50 X 50.
55	3093932	Hexagon Flange Head Cap Screw	4	M10 X 1.50 X 25.
56	3093938	Hexagon Flange Head Cap Screw	1	M12 X 1.75 X 30.
57	3686758	Fuel Pump Gasket	1
58	3686876	Fuel Pump Support	1
59	3687025	Fuel Pump Support	1
60	3687065	Fuel Pump Support	1
61	3687073	Fuel Pump Support	1
62	3687444	Hexagon Flange Head Cap Screw	1	M12 X 1.75 X 130.
63	3914177	Hexagon Flange Head Cap Screw	2	M12 X 1.75 X 80.

SHIPMENT CHARACTERISTICS
Length * Width * Height	60cm35cm35cm
Weight	27.22KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.

For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
