Cummins / Products / Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666
Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666
Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666 Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666
Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666 Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666
Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666 Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666

loading

Cummins Universal ISX QSX Engine Fan Hub 2899668 2899667 2899666

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

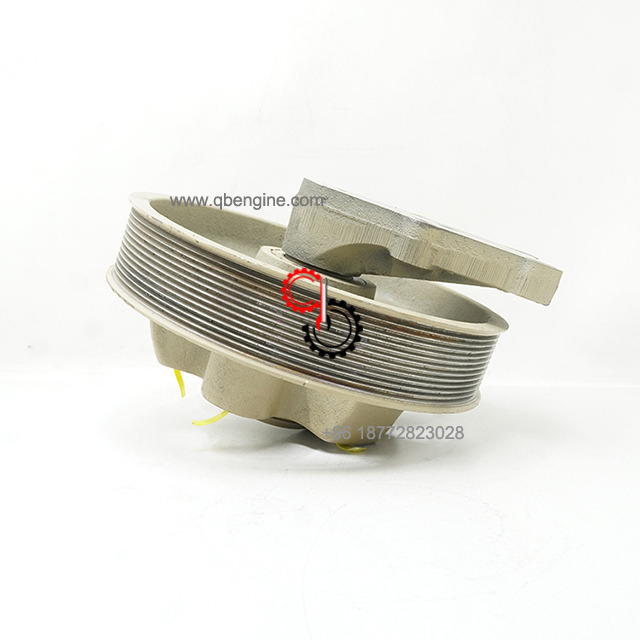

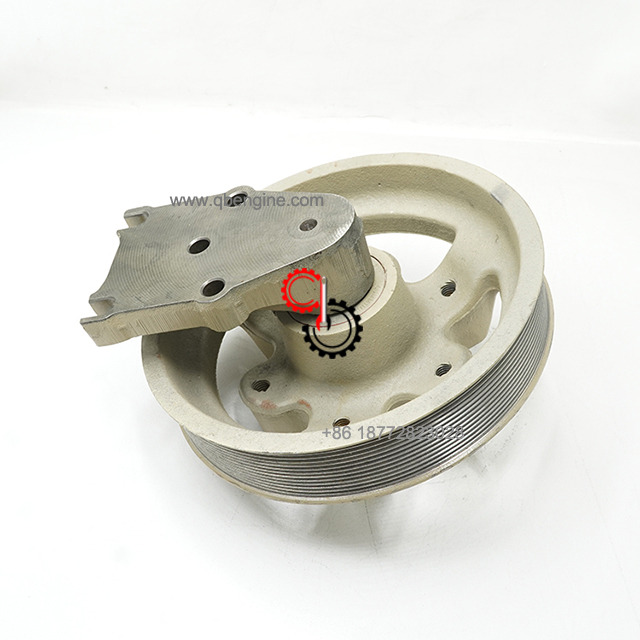

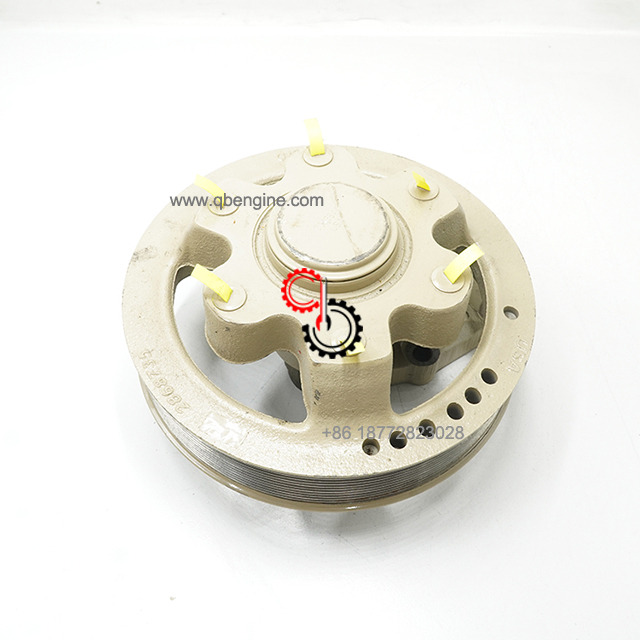

Cummins ISX QSX Fan Hub 2899668 2899667 2899666

  • ISX QSX

  • Cummins

  • 2899668 2899667 2899666

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins ISX QSX Fan Hub 2899668 2899667 2899666 In Stock

Electronic  Parts Catalog - Option Detail
Cummins  Engines ISX CM570, ISX CM870, ISX CM871, ISX CM871 E, ISX15 CM2250, ISX15 CM2250 SN, ISX15 CM2350 X101, ISX15 CM2350 X129, ISZ13 CM2150 SN, QSX11.9 CM2250 ECF, QSX15 CM2250, QSX15 CM2250 ECF, QSX15 CM2250 X115, QSX15 CM2350 X105, QSX15 CM2350 X106, QSX15 CM2350 X118, QSX15 CM2350 X130, QSX15 CM2350 X131, QSX15 CM570, QSZ13 CM2150 Z101, QSZ13 CM2150 Z102, R2.8 CM2220 R101B, X12 CM2350 X119B, X15 CM2350 X114B, X15 CM2350 X116B, X15 CM2350 X125M, X15 CM2350 X132C

2899668


Ref No Part Number Part Description Required Remarks

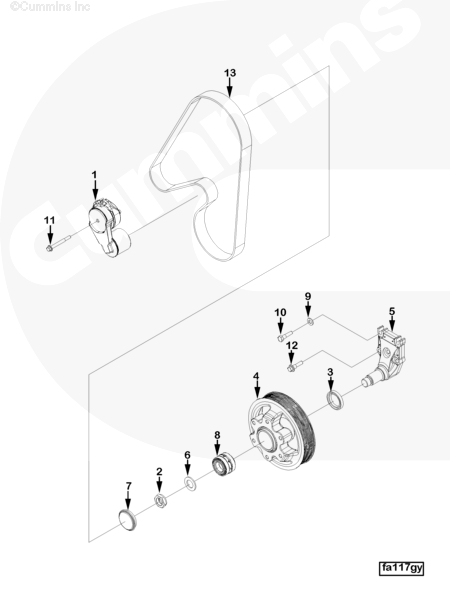

FA1617-02 Fan Drive
Fan Drive...(More)
1 4299051 Belt Tensioner 1

2899668 Fan Hub 1
2 142176 Lock Nut 1 1 1/8 - 12 UNF.
3 200307 Oil Seal 1
4 2868735 Fan Pulley 1
5 2899743 Fan Spindle 1
6 3012467 Plain Washer 1 1 1/8 in.
7 3063844 Fan Hub Cover 1
8 3081164 Roller Bearing 1
9 3035806 Plain Washer 2 M12.
10 3093754 Hexagon Head Cap Screw 2
11 3093936 Hexagon Flange Head Cap Screw 1 M10 X 1.50 X 90.
12 3093940 Hexagon Flange Head Cap Screw 3 M12 X 1.75 X 45.
13 3104679 V Ribbed Belt 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 29cm*27cm*19.5cm
Weight 14.716KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
