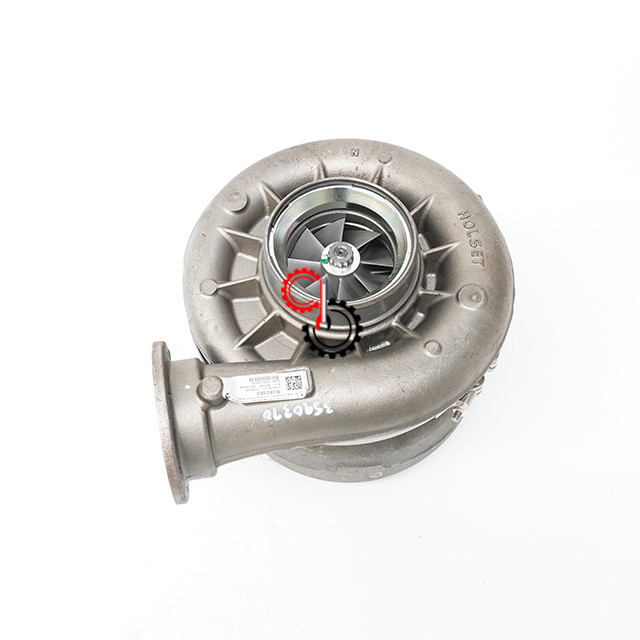

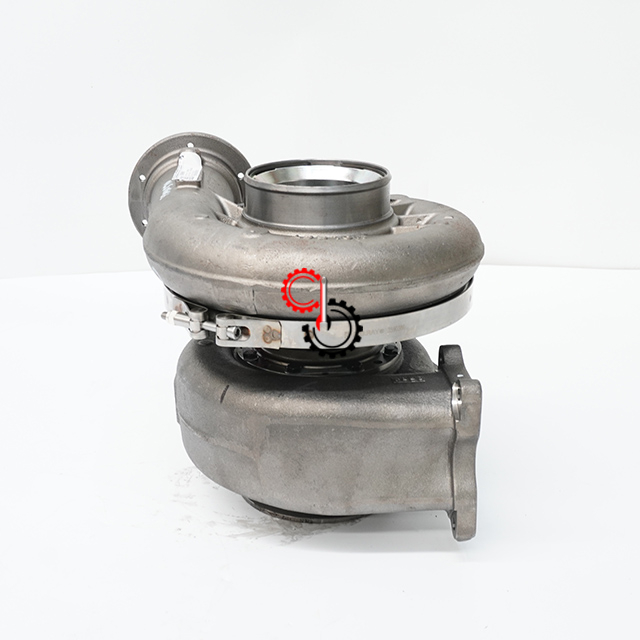

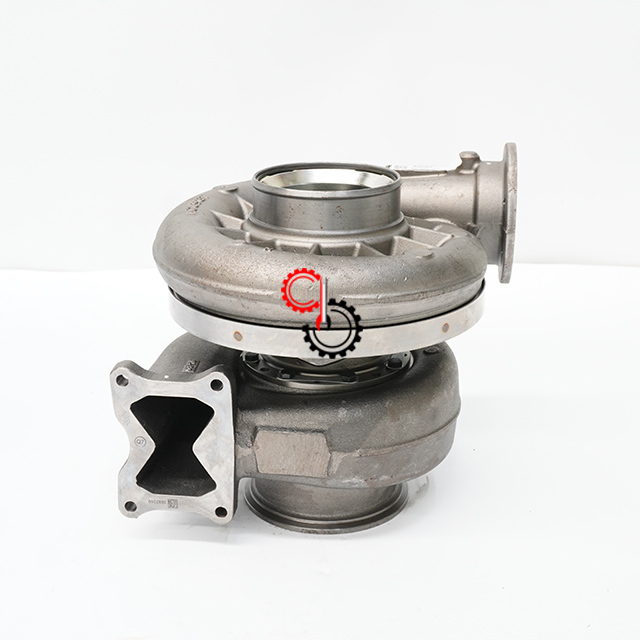

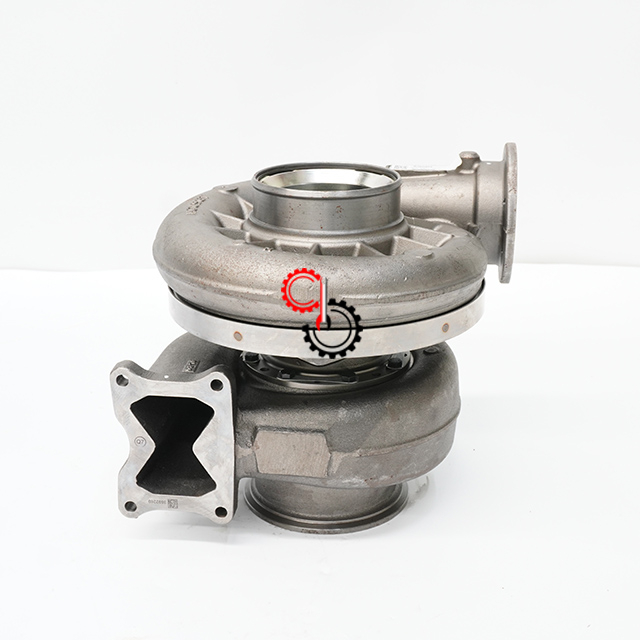

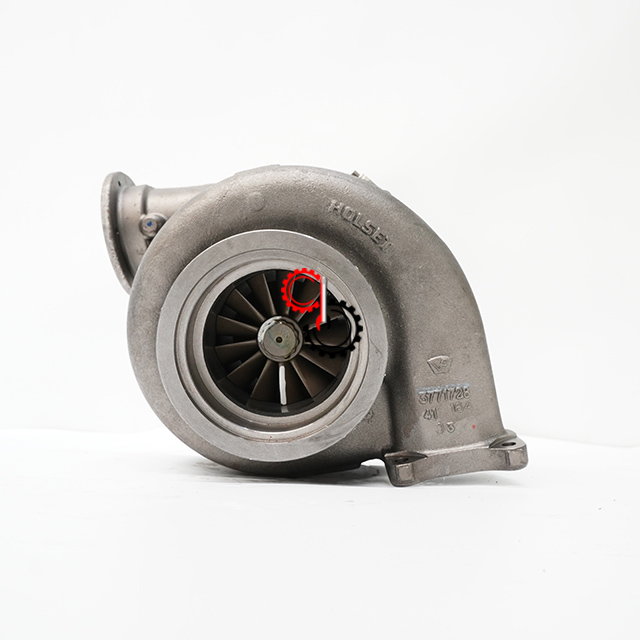

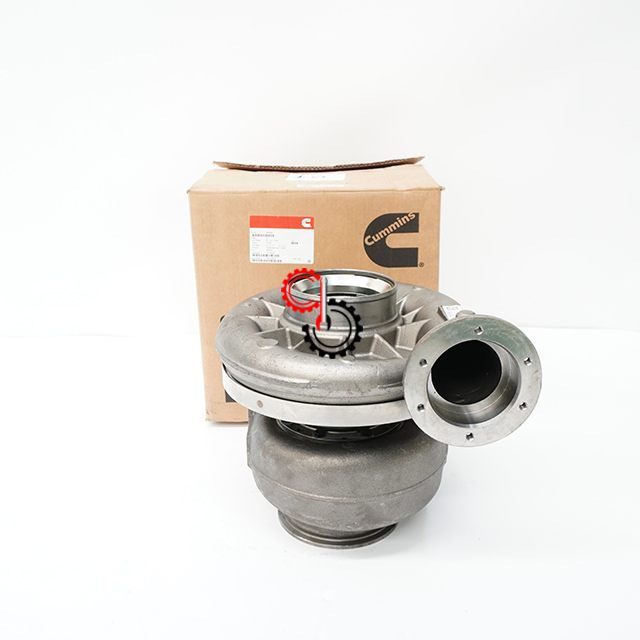

Cummins QSK60 HX82 DRY Turbocharger 4033494 3774223 3599346 4089498

  • 4033494 3774223 3599346 4089498

  • Cummins

Supersession Part Number:
4033494
3599346
3774223
4089498
weigt(kg):
61.689
Size:
49cm*47cm*36cm
Availability:
Quantity:
Inquire Add to Basket

PDF Export

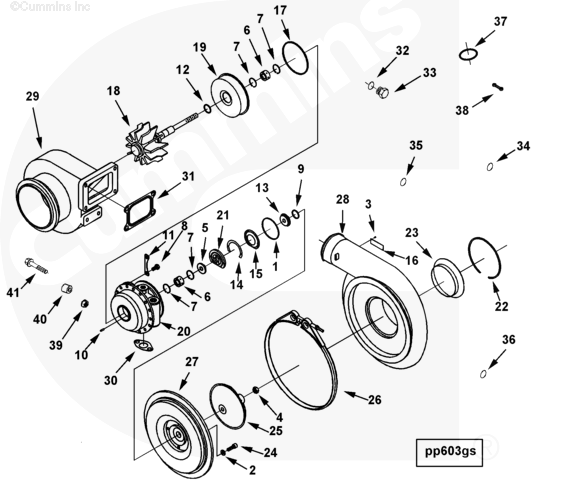

Electronic Parts Catalog - Option Detail
Engines QSK60 CM2150 MCRS, QSK60 CM2250  K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350  K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850  MCRS, QSK60 G, QSK60 G CM2358 K110

4089498

Cart Ref No Part Number Part Description


PP6789-05 Turbocharger

4089498 Turbocharger   Kit 2

3599346 Turbocharger 1
1 3502449 Rectangular   Ring Seal 1
2 3504967 Plain   Washer 4
3 3519163 Drive   Screw 2
4 3519535 Lock   Nut 1
5 3591522 Thrust   Collar 1
6 3598528 Turbocharger   Bearing 2
7 3519641 Retaining   Ring 4
8 3521225 Hexagon   Head Set Screw 8
9 3521442 Split   Ring Seal 1
10    3522597 Roll   Pin 2
11 3522904 Lock   Plate 4
12 3523412 Split   Ring Seal 1
13 3523980 Oil   Slinger 1
14 3524418 Shim 1
15 3524419 Oil   Baffle 1
16 3527619 Dataplate 1
17 3534405 Rectangular   Ring Seal 1
18 3535977 Shaft   And Wheel 1
19 3536588 Turbocharger   Heat Shield 1
20 3536591 Turbocharger   Bearing Housing 1
21 3591532 Turbocharger   Thrust Bearing 1
22 3537301 Retaining   Ring 1
23 3539756 Turbocharger   Noise Baffle 1
24 3590377 Socket   Head Cap Screw 4
25 3593926 Turbocharger   Compressor Impeller 1
26 3590386 V   Band Clamp 1
27 3599931 Turbocharger   Diffuser 1
28 3590370 Compressor   Housing 1
29 3592269 Turbine   Housing 1
30 3089955 Connection   Gasket 1
31 3331924 Turbocharger   Gasket 1

3678873 Threaded   Plug 2
32 3678786 O-Ring   Seal 1
33 3678791 Threaded   Plug 1
34 3679139 O-Ring   Seal 1
35 3627695 O-Ring   Seal 2
36 3922794 O-Ring   Seal 1
37 3023066 O-Ring   Seal 2
38 4097509 Retaining   Brace 2
39 3636059 Lock   Nut 8
40 3089321 Mounting   Spacer 8
41 4000837 Hexagon   Flange Head Cap Screw 8
