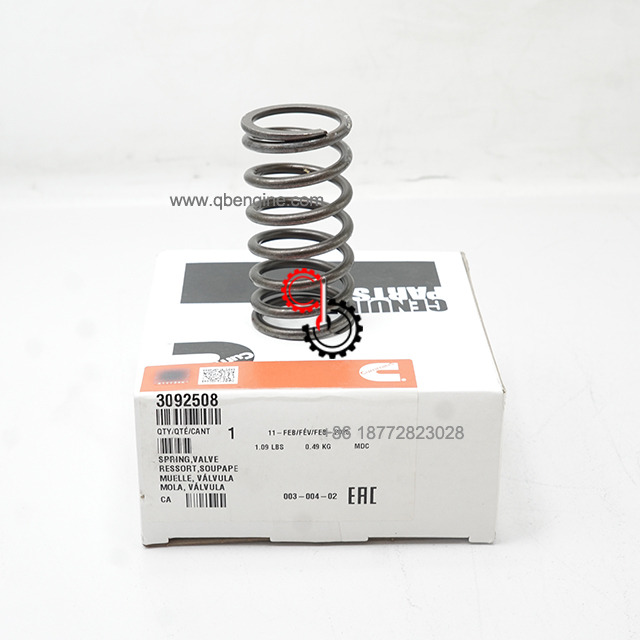

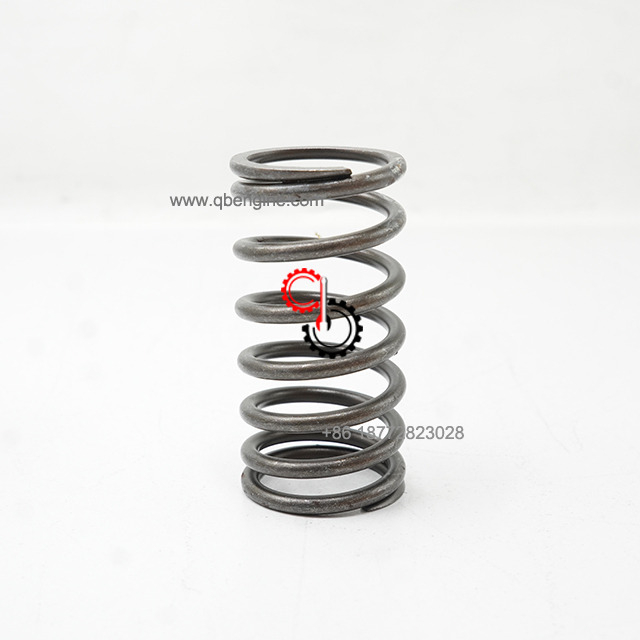

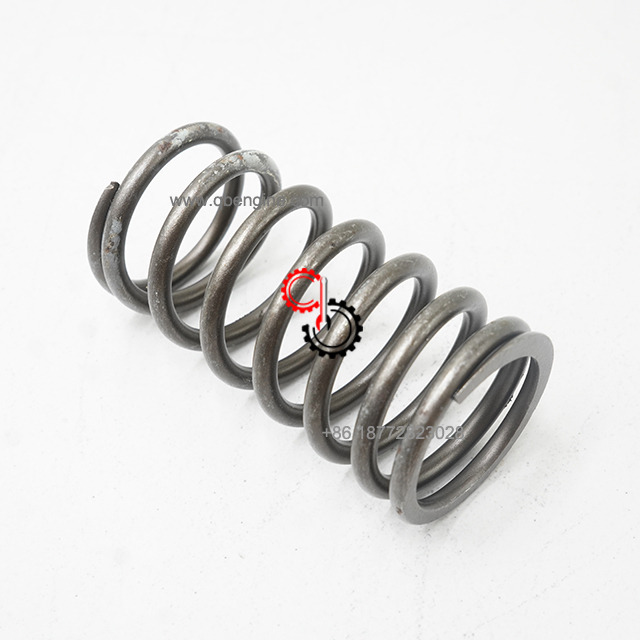

Cummins QST30 Valve Spring 3092508

  • QST30

  • Cummins

  • 3092508

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QST30  Valve Spring 3092508 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   Engines QST30 CM2350 T101, QST30 CM552, QST30 CM850

3092508

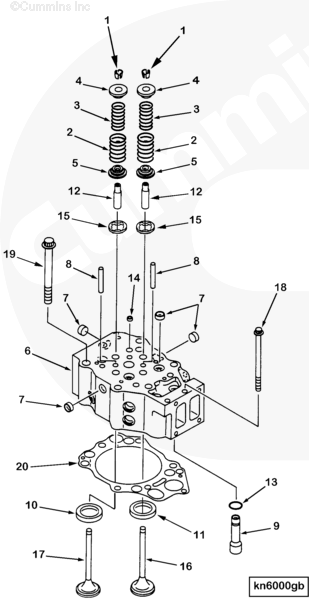

Ref No Part Number Part Description Required Remarks

PP2127-02 Cylinder Head


3094190 Head , Cylinder ( Top Level  Assembly ) 12 TLA
1 3092344 Valve Collet 8
2 3092508 Valve Spring 4
3 3092509 Valve Spring 4
4 3092510 Valve Spring Retainer 4
5 3092511 Valve Spring Guide 4
6 3092583 Cylinder Head 1
7 3092396 Expansion Plug 12
8 3092459 Valve Crosshead Guide 2
9 3092460 Sleeve 1
10 3092461 Valve Insert 2 Exhaust
11 3092584 Valve Insert 2
12 3092585 Valve Stem Guide 4
13 3093781 O-Ring Seal 1
14 3093782 Expansion Plug 1
15 3092608 Valve Stem Seal 2
16 3092975 Intake Valve 2
17 3092976 Exhaust Valve 2
18 3093789 Twelve Point Cap Screw 12 M10 x 1.75 x 120
19 3092463 Fracture Resistant Screw 72 M16 x 2.00 x 162


SHIPMENT CHARACTERISTICS
Length * Width * Height 13cm*6cm*3cm
Weight 0.113KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
