Cummins / Cummins Parts / Electronic Control Module (ECM), Sensor, Wiring Harness / Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505

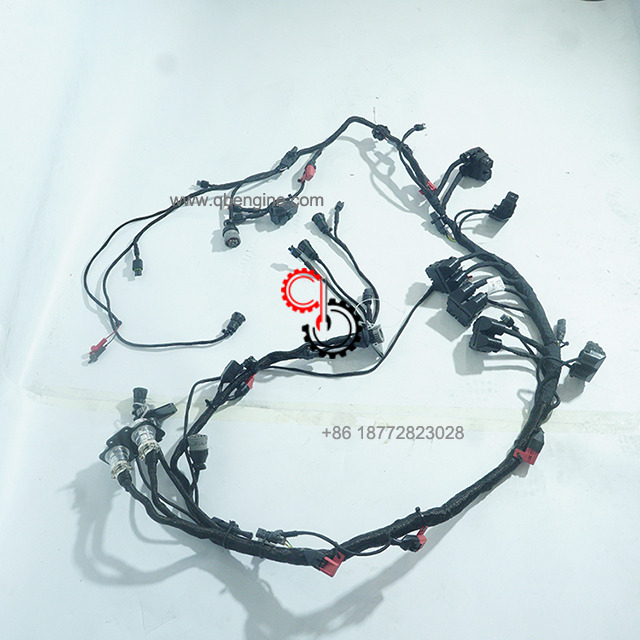

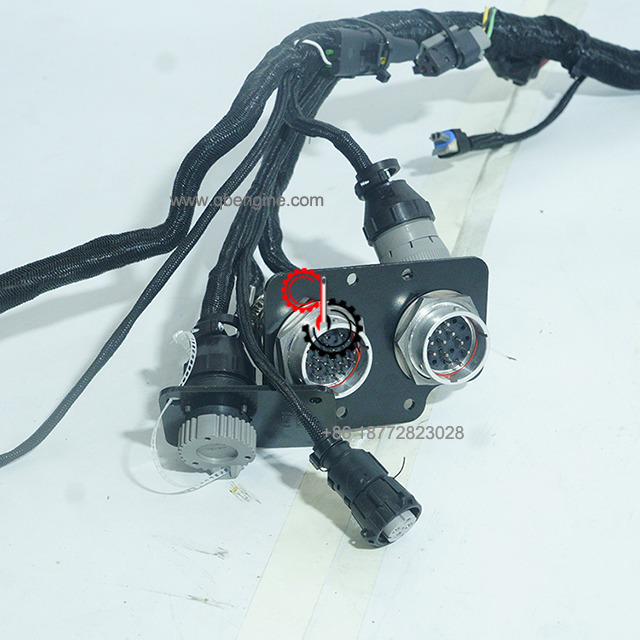

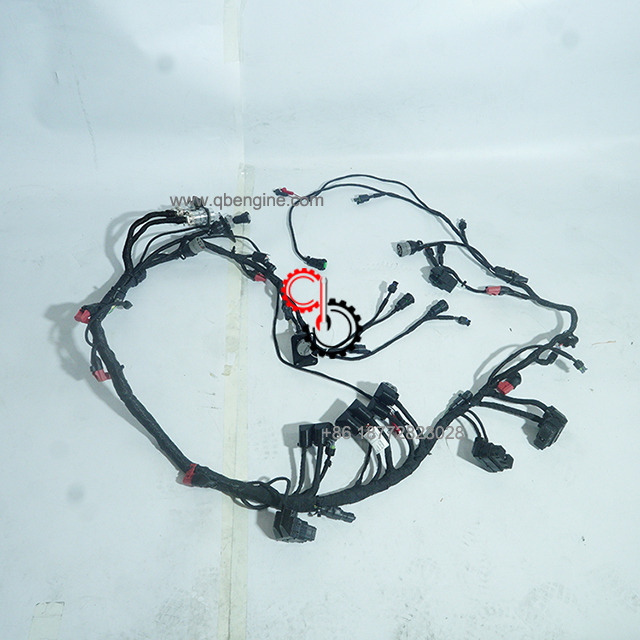

Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505
Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505 Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505
Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505 Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505
Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505 Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505

loading

Cummins QST30-G4 QST30-G5 Engine Control Module Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505

Share to:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button
Cummins QST30-G4 QST30-G5 ECM Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505

  • QST30-G4 QST30-G5

  • Cummins

  • 4371631 4310983 4975760 4975747 2881121 4975505

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QST30-G4 QST30-G5 ECM Wiring Harness 4371631 4310983 4975760 4975747 2881121 4975505 In Stock

Electronic   Parts Catalog - Option Detail
Cummins   EnginesQST30 CM2350 T101, QST30 CM552, QST30 CM850
Part  NumberPart DescriptionRequiredRemarks
PH5741-09Engine Control Module
Engine Control Module
68152Clip1
2872254Pressure Sensor3Intake Air Or Coolant.
4010519O-Ring Seal1
3016478Clip1
3076301Wire Tie Clamp17
3092246Round Head Cap Screw6
3093752Hexagon Head Cap Screw1M12 X 1.75 X 25.
3093930Hexagon Flange Head Cap Screw1M10 X 1.50 X 16.
3094024Plain Washer1
3094088Wear Pad4
3408560Pressure Sensor1Oil.
3408561Pressure Sensor1
4010519O-Ring Seal1
3609872Wire Tie Clamp Retainer6
3678921Threaded Plug2
3900678Hexagon Flange Head Cap Screw4M8 X 1.25 X 40.
3901445Hexagon Flange Head Cap Screw1M8 X 1.25 X 45.
4088832Temperature Sensor2Coolant Or Intake Manifold.
4088833Temperature Sensor1Coolant Or Intake Manifold.
4921574O-Ring Seal1
4295618Wiring Retainer Bracket1
4295620Wire Tie Clamp14
4921797Electronic Control Module1
4921776Electronic Control Module1
4954905Temperature Sensor2Coolant Or Fuel Or Oil.
4010519O-Ring Seal1
4975496Wiring Retainer Bracket1
4975500Brackets , Aftercooler ( Right )1
3093896Hexagon Head Cap Screw1M10 X 1.50 X 105.
3093901Hexagon Head Cap Screw5M10 X 1.50 X 65.
4295617Wiring Retainer Bracket6
4975501Brackets , Aftercooler ( Left )1
3092430Wiring Retainer Bracket1
3093763Hexagon Head Cap Screw1
3093767Hexagon Head Cap Screw5M10 X 1.50 X 60.
3093896Hexagon Head Cap Screw2M10 X 1.50 X 105.
3093901Hexagon Head Cap Screw3M10 X 1.50 X 65.
4295617Wiring Retainer Bracket5
4975430Wiring Retainer Bracket2
4371631Electronic Control Module Wiring  Harness1
2897331Pressure Sensor1Ambient Air.
3062329Wire Tie Clamp7
3076174Protective Cover2
3090846Socket Head Cap Screw8
3092051Wiring Retainer Bracket1
3095623Clip1
3658780Relay1
3681596Battery Module1
4001537Wire Tie Clamp12
4371632Electronic Control Module Wiring  Harness1
4975428Wiring Retainer Bracket1
4975429Wiring Retainer Bracket1
4975761Electrical Connector2

SHIPMENT CHARACTERISTICS


Length * Width * Height72cm*55cm*33cm
Weight16.3KG

Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
