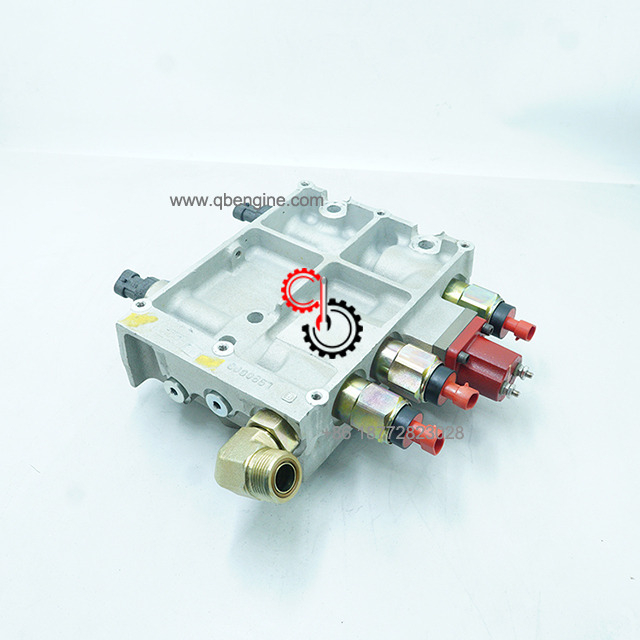

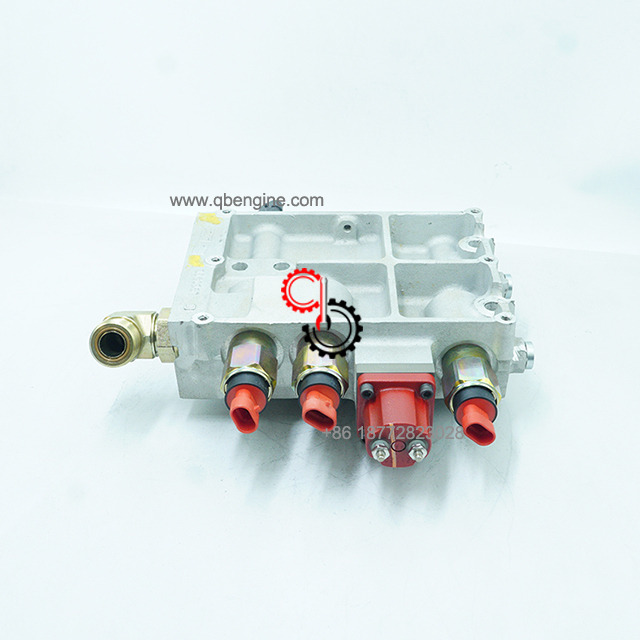

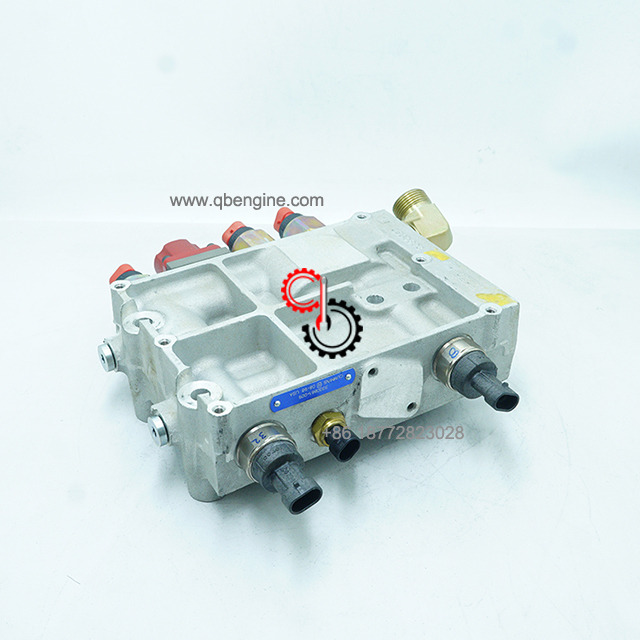

Cummins QSK60 QSK45 Fuel Control Valve 4088062 3408413 4009873 3348673

  • QSK60 QSK45

  • Cummins

  • 4088062 3408413 4009873 3348673

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 QSK45 Fuel Control Valve 4088062 3408413 4009873 3348673 In Stock

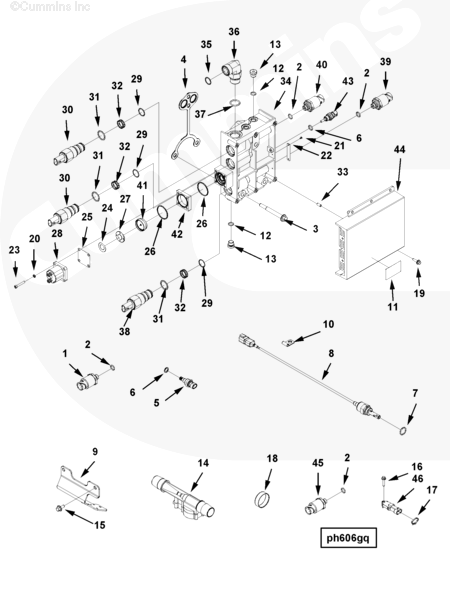

Electronic  Parts Catalog - Option Detail
Cummins  Engines QSK45 CM500, QSK45G

4088062

Ref No Part Number Part Description Required Remarks

PH6893-01 Engine Control Module
Engine control module...(More)
1 2872254 Pressure Sensor 2 Intake Air or Coolant
2 4010519 O-Ring Seal 1
3 3093936 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 90
4 3332183 Connection Gasket 1

3408345 Temperature Sensor 1 Coolant or Intake Manifold
5 3408346 Temperature Sensor 1
6 4010519 O-Ring Seal 1

3408653 Fluid Level Sensor 1 Oil
7 3089240 O-Ring Seal 1 M22
8 3408654 Fluid Level Sensor 1 Oil
9 3638453 Sensor Bracket 1
10 3639266 Clip 1
11 3645413 Dataplate 1

3678921 Threaded Plug 1 M14 X 1.5 X 16
12 3678912 O-Ring Seal 1 M14
13 3678922 Threaded Plug 1 M14 X 1.5 X 16
14 3867561 Blowby Flow Sensor 1 Blowby flow.
15 3900629 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 16
16 3968475 Hexagon Flange Head Cap Screw 1 M5 X 0.8 X 25.
17 4001537 Wire Tie Clamp 1
18 4017050 Protective Cover 2

4088062 Electronic Fuel Control Valve 1
19 3901865 Hexagon Flange Head Cap Screw 6 M6 X 1.00 X 20.

4088061 Electronic Control Pressure Valve 1
20 S 607 Lock Washer 4 #10
21 S 2286 Drive Screw 2 3/16 in.
22 105375 Nameplate 1
23 118226 Socket Head Cap Screw 4 #10 - 24 x 1 1/4 in.
24 129768 Valve Spring 1
25 129839 Shut-Off Valve Shield 1
26 129888 Rectangular Ring Seal 2
27 196057 Valve Disc 1
28 3021420 Solenoid 1

3330601 Electronic Fuel Control Actuator 2
29 3042542 O-Ring Seal 1
30 3331030 Electronic Fuel Control Actuator 1
31 3865398 O-Ring Seal 1
32 3867393 Filter Screen 1

3330658 Control Valve Body 1
33 3329693 Threaded Insert 8
34 3330657 Control Valve Body 1

3331818 Male Union Elbow 1
35 3085709 O-Ring Seal 1
36 3331819 Male Union Elbow 1
37 3678606 O-Ring Seal 1 M27 X 2.00

3347906 Electronic Fuel Control Actuator 1
38 3348441 Electronic Fuel Control Actuator 1

3408562 Pressure Sensor 1 Fuel Supply
39 3408563 Pressure Sensor 1 Fuel Supply

3408564 Pressure Sensor 1 Timing Rail
40 3408565 Pressure Sensor 1 Timing Rail

3678921 Threaded Plug 4 M14 X 1.5 X 16
41 4088274 Actuator Disc 1
42 4088863 Actuator Housing 1
43 4954905 Temperature Sensor 1 Coolant Or Fuel Or Oil.
6 4010519 O-Ring Seal 1
44 4921411 Electronic Control Module 1

4088734 Pressure Sensor 1 Oil.
45 4088735 Pressure Sensor 1
46 4902720 Pressure Sensor 1 Ambient air.
43 4954905 Temperature Sensor 1 Coolant Or Fuel Or Oil.


SHIPMENT CHARACTERISTICS
Length * Width * Height 43cm*30cm*30cm
Weight 8.5KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
