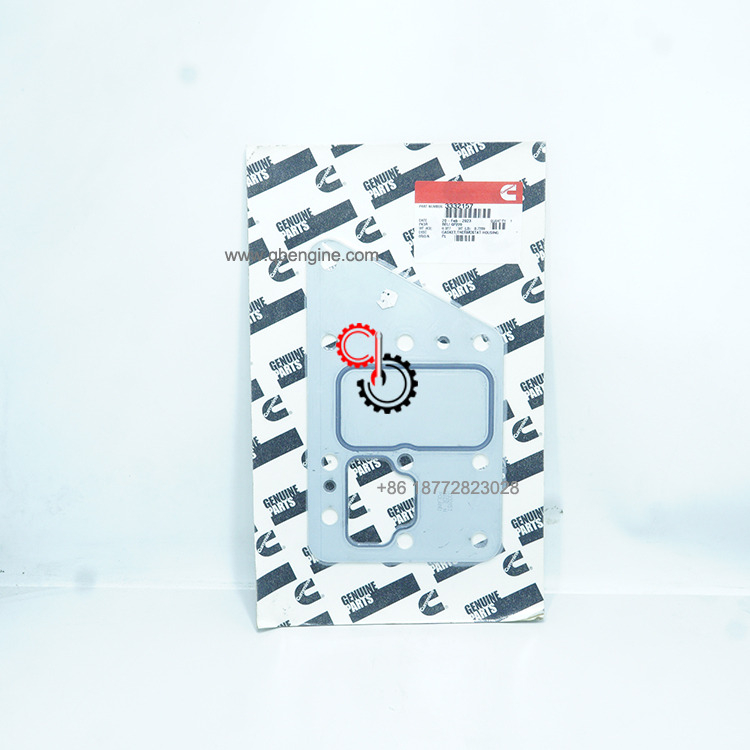

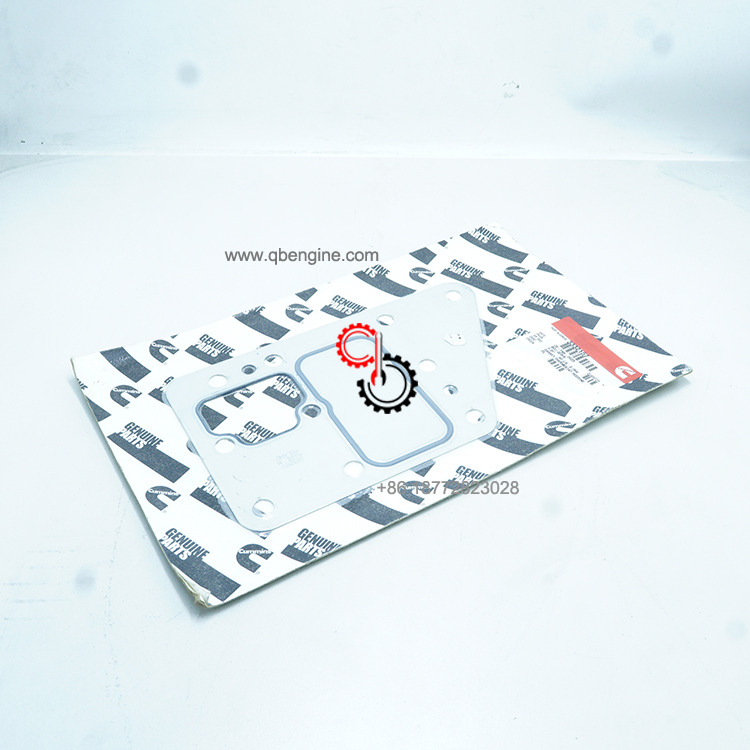

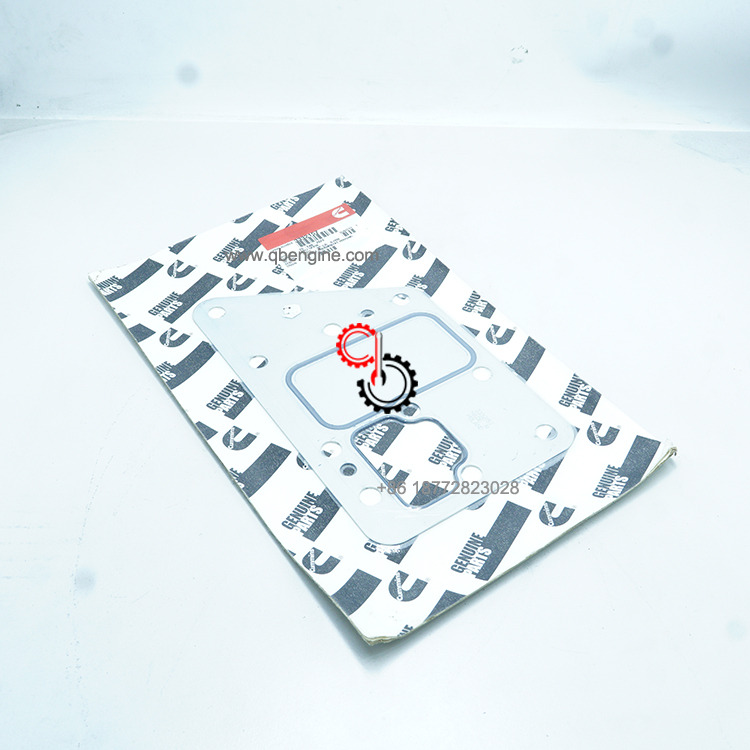

Cummins QSK60 Thermostat Housing Gasket 3332157

  • QSK60

  • Cummins

  • 3332157

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Thermostat Housing Gasket 3332157 In Stock

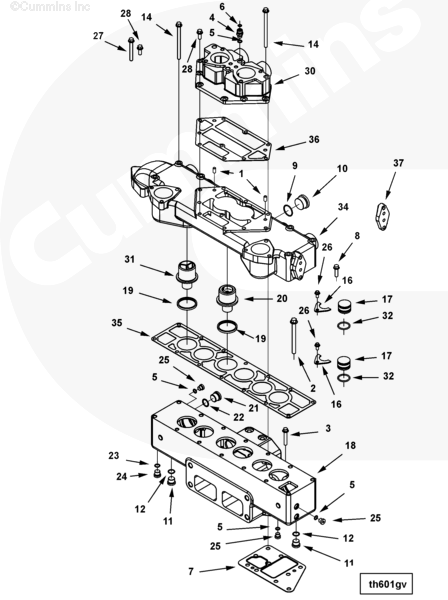

Electronic Parts Catalog - Option Detail
Cummins Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3332157


Ref No Part Number Part Description Required Remarks

TH6720-02 Thermostat Housing
Thermostat housing...(More)
1 69519 Pin Dowel 2
2 3089234 Hexagon Flange Head Cap Screw 6
3 3278480 Hexagon Flange Head Cap Screw 4 M12 x 1.75 x 70

3332136 Male Union 2
4 3332137 Male Union 1
5 3678912 O-Ring Seal 1 M14
6 3922794 O-Ring Seal 1
7 3332157 Thermostat Housing Gasket 1

4098361 Housing , Thermostat Top Level  Assembly 1
8 3089016 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 35.

3089023 Threaded Plug 1 M42 X 2.00 X 19.5.
9 3089019 O-Ring Seal 1 M42.
10 3089021 Threaded Plug 1 M42 X 2.00 X 19.5.

3089238 Threaded Plug 2 M22 x 1.50 x 20.1
11 3089239 Threaded Plug 1 M22 x 1.50 x 20.1
12 3089240 O-Ring Seal 1 M22
14 3089316 Hexagon Flange Head Cap Screw 12
16 3332147 Retaining Clamp 2
17 3332148 O-Ring Plug 2
18 3410686 Thermostat Housing Support 1
19 3627961 Thermostat Seal 6
20 3629205 Thermostat 4

3678611 Threaded Plug 1
21 3678605 Threaded Plug 1
22 3678606 O-Ring Seal 1 M27 X 2.00

3678873 Threaded Plug 1 M18 X 1.5 X 19.5
23 3678786 O-Ring Seal 1 M18
24 3678791 Threaded Plug 1 M18 X 1.5 X 19.5

3678921 Threaded Plug 7 M14 X 1.5 X 16
5 3678912 O-Ring Seal 1 M14
25 3678922 Threaded Plug 1 M14 X 1.5 X 16
26 3900629 Hexagon Flange Head Cap Screw 2 M8 X 1.25 X 16
27 3900679 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 80.
28 3902460 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 25.
30 4017073 Water Transfer Connection 1
31 4065566 Thermostat 2
32 4066112 O-Ring Seal 2
34 4101042 Thermostat Housing 1
35 4101148 Thermostat Housing Gasket 1
36 4101149 Water Transfer Connection Gasket 1
37 4101325 Mounting Spacer 1


SHIPMENT CHARACTERISTICS
Length * Width * Height 35cm*20cm*1cm
Weight 0.354KG
