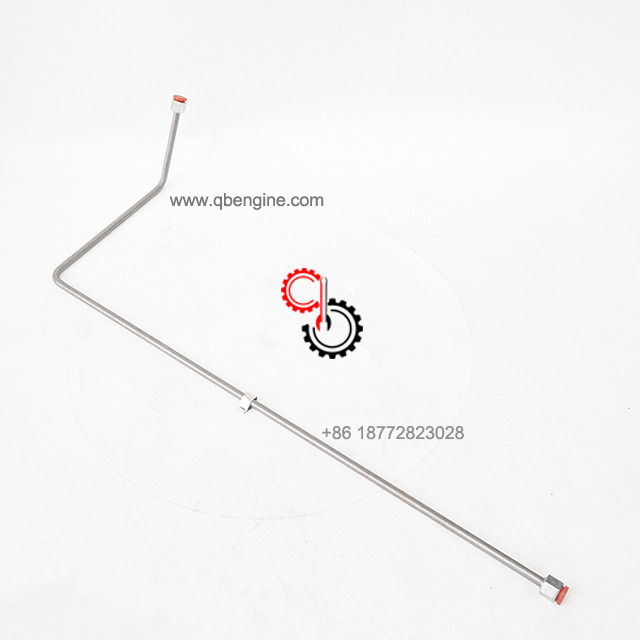

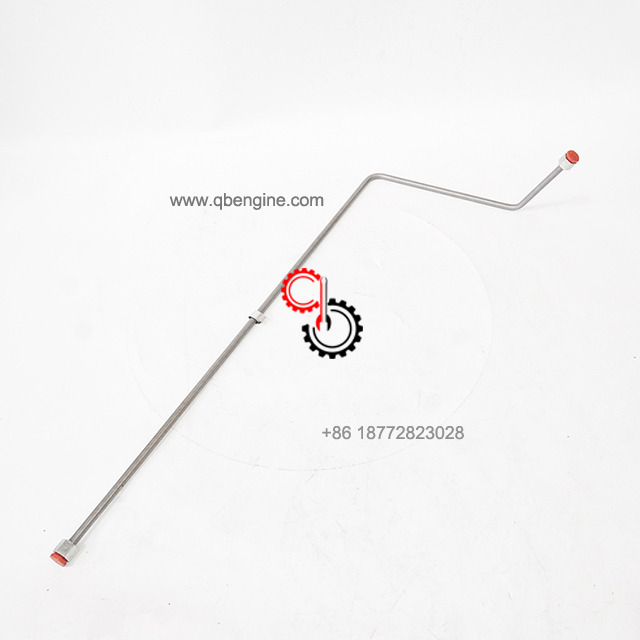

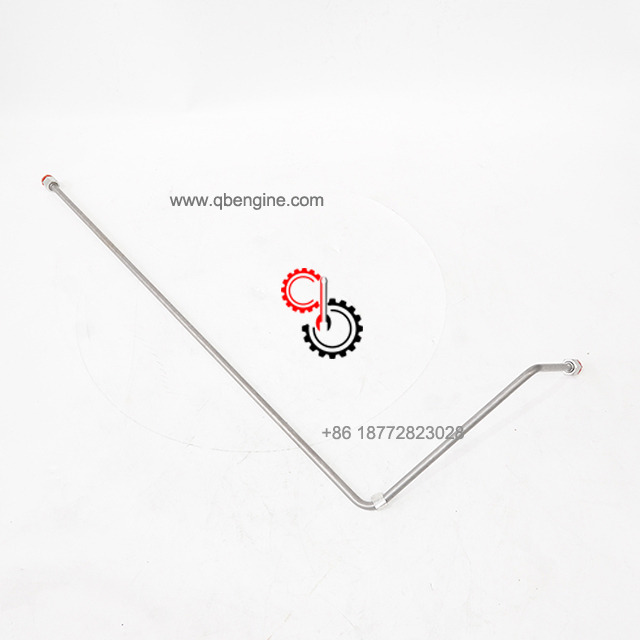

Cummins QSK60 Lubricating Oil Transfer Tube 3636392

  • QSK60

  • Cummins

  • 3636392

  • 1-7 days

  • Genuine Original package or Ne

  • 6 Months

Availability:
Quantity:
Inquire Add to Basket

PDF Export

Cummins QSK60 Lubricating Oil Transfer Tube 3636392 In Stock

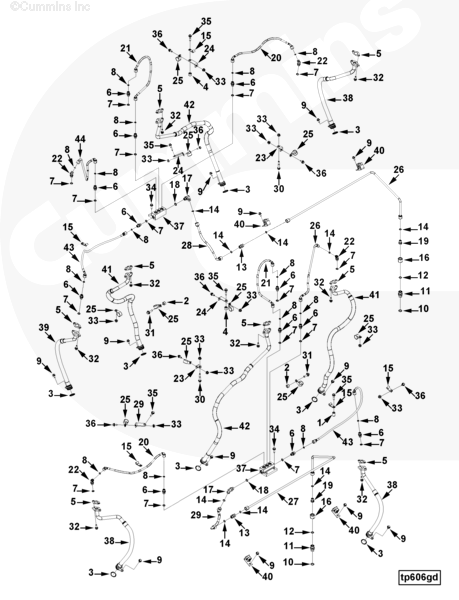

Electronic Parts Catalog - Option Detail
Cummins Engines QSK60 CM2150 MCRS, QSK60 CM2250 K112, QSK60 CM2350 K116, QSK60 CM2350 K117, QSK60 CM2350 K121, QSK60 CM2350 K133, QSK60 CM500, QSK60 CM850 MCRS, QSK60 G, QSK60 G CM2358 K110

3636390

Ref No Part Number Part Description Required Remarks

TP6764-04 Turbocharger Plumbing
MR - PLUMBING, TURBOCHARGER
1 64709 Mounting Spacer 1
2 66747 Mounting Spacer 2
3 216187 O-Ring Seal 8
4 3089321 Mounting Spacer 2
5 3089955 Connection Gasket 8

3090400 Male Union 12
6 3090419 Male Union 1
7 3679139 O-Ring Seal 1
8 3922794 O-Ring Seal 1
9 3093957 Hexagon Flange Head Cap Screw 12 M10 X 1.50 X 16

3171818 Male Union 2
10 3089240 O-Ring Seal 1 M22
11 3171819 Male Union 1
12 3630740 O-Ring Seal 1

3171830 Male Union 2
13 3171831 Male Union 1
14 3627695 O-Ring Seal 2
15 3175058 Clip 5
16 3331855 Tube Nut 2

3331872 Male Union Elbow 2
17 3331837 Male Union Elbow 1
18 3678786 O-Ring Seal 1 M18

3331881 Tube Fitting Reducer 2
19 3331882 Tube Fitting Reducer 1
20 3411021 Flexible Hose 2
21 3411023 Flexible Hose 2

3411129 Male Union Elbow 4
22 3411130 Male Union Elbow 1
23 3628553 Tube Brace 2
24 3628554 Tube Brace 4
25 3629451 Clip 10
26 3636390 Lubricating Oil Transfer Tube 1
27 3636392 Lubricating Oil Transfer Tube 1
28 3636394 Flexible Hose 1
29 3636395 Flexible Hose 1
30 3900635 Hexagon Flange Head Cap Screw 2 M10 X 1.50 X 60.
31 3900637 Hexagon Flange Head Cap Screw 2 M12 x 1.75 x 35
32 3902460 Hexagon Flange Head Cap Screw 16 M10 X 1.50 X 25.
33 3902662 Hexagon Flange Nut 11 M10 x 1.50
34 3903112 Hexagon Flange Head Cap Screw 4 M10 X 1.50 X 30.
35 3903464 Hexagon Flange Head Cap Screw 5 M10 X 1.50 X 40.
36 3903990 Hexagon Flange Head Cap Screw 7 M10 X 1.50 X 20.
37 4017512 Oil Transfer Connection 2
38 4917836 Flexible Hose 2
39 4917837 Flexible Hose 2
40 4917840 Clip 4
41 4917843 Flexible Hose 2
42 4917844 Flexible Hose 2
43 4927591 Flexible Hose 2
44 4927615 Flexible Hose 2


SHIPMENT CHARACTERISTIC

Length * Width * Height

 98cm*43cm*3cm
Weight 0.502KG


Small Tips for Quick Service:

If you need assistance with selecting the right replacement parts for your engine, please contact our ONLINE SERVICE to get fast customer support.


For us to provide you with the correct information, please have your Cummins Engine Part Number or Engine Serial Number ready, so that we can give you the best price possible along with our expertise.
